Industry Equipments Signal Slip Ring Multi Channels 65 Circuits Through Hole Designed
Industry Equipments Signal Slip Ring Multi Channels 65 Circuits Through Hole Designed
Specifications
Brand Name :
CENO
Model Number :
ECN025-10P1-55S
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current :
10 wires*5A; 55circuits* 2A
Rating Voltage :
0~220VAC/VDC
Working speed :
0~500rpm
Protection Grade :
IP51
Temperature :
-20°C~+60°C
Contact material :
Precious Metal
Housing material :
Aluminum alloy
Installation way :
Fix up stator side with anti-rotation side shaft drives rotor running
Working humidity :
< 60% below
Lead wire size :
AWG22# Soft Teflon; AWG26# Soft Teflon
Description

Slip ring with multi channels 65 circuits for industry equipments

ECN025-10P1-55S is an industry signal slip ring or Multi-channels slip ring from CENO company. There are 10 wires for 5A electrical power and 55 circuits for 2A signal data, it can work stably with the speed of 0~500rpm in the temperature from -20°C to +60°C and the humidity is less to 60%. The inner diameter is Ø25.4mm and the external diameter is Ø99mm. Contact material is precious metal and the housing material is aluminum alloy. It’s mainly used in Automation industry, Lithium battery equipment, Motion simulator and Liquid filling machinery.

Features

  • Low electric noise 30mΩ
  • Through hole designed
  • 65 circuits power and signal
  • Working speed is 0~500rpm

Applications

  • Lithium battery equipment
  • Chemical equipment
  • Liquid filling machinery
  • Automation in industry

Optional

  • Circuit number & Current
  • Working speed
  • Protection grade
  • Signal type & Material

Specification

ECN025-10P1-55S Specification
Current & Circuits 10 wires*5A; 55circuits* 2A
Rating Voltage 0~220VAC/VDC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥300MΩ@500VDC
Electrical noise Max 30mΩ(50rpm)
Lead wire size

AWG22# Soft Teflon

AWG26# Soft Teflon
Lead wire length Rotor : 1500mm; Stator : 3000mm
Operating speed 0~500rpm
Contact material Precious Metal
Housing material Aluminum alloy
Working temperature -20°C ~ +60°C
Working humidity <60%
Protection grade IP51
Rotation way Fix up stator side with anti-rotation side shaft drives rotor running
Through hole diameter Ø25.4mm

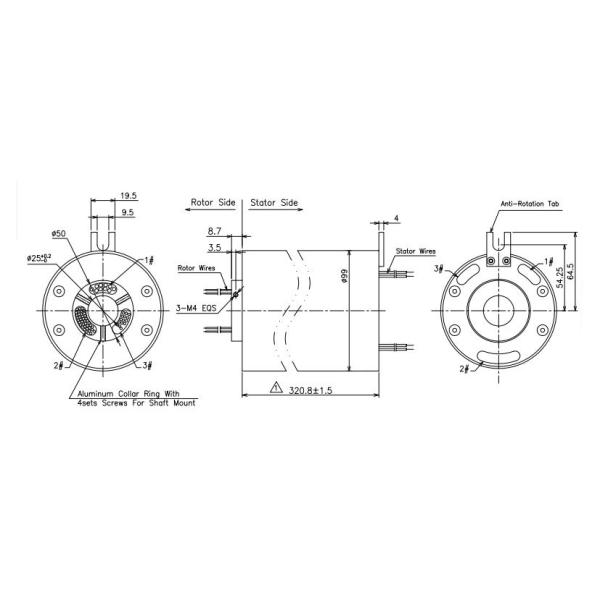

Outline drawing

Industry Equipments Signal Slip Ring Multi Channels 65 Circuits Through Hole Designed

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Industry Equipments Signal Slip Ring Multi Channels 65 Circuits Through Hole Designed

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Industry Equipments Signal Slip Ring Multi Channels 65 Circuits Through Hole Designed

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Industry Equipments Signal Slip Ring Multi Channels 65 Circuits Through Hole Designed

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
