Power & Encode 18 Circuits Through Bore Slip Ring IP51 Speed 20rpm
Power & Encode 18 Circuits Through Bore Slip Ring IP51 Speed 20rpm
Power & Encode 18 Circuits Through Bore Slip Ring IP51 Speed 20rpm
Power & Encode 18 Circuits Through Bore Slip Ring IP51 Speed 20rpm
Specifications
Brand Name :
CENO
Model Number :
ECN025-08P2-10S
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current :
8 wires*10A; 1group*PE; 5circuits * limitation data; 5circuits*Encode data
Rating Voltage :
0~380VAC/VDC
Working speed :
0~20rpm
Protection Grade :
IP51
Temperature :
-20℃~+60℃
Contact Material :
Precious metal
Housing material :
Aluminum alloy
Install way :
Fix the rotor side to guest main shaft with screws
Description

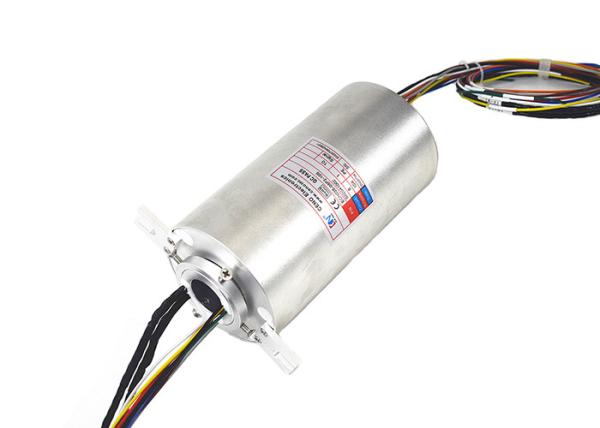

Power & Encode Slip Ring 18 circuits through bore Ø25.4mm IP51 speed 20rpm

ECN025-08P2-10S is an integrated industry slip ring combined with several signals from CENO company. There are 8wires for 10A, 1 group for PE, 5 circuits for limitation data and 5 circuits for Encoder signal and the Rating voltage is 380VAC/VDC. It’s working stably with she speed of 20rpm during the temperature from -20°C to +60°C. The inner diameter is Ø25.4mm and the install way is fixing the rotor side to the guest main shaft, it’s mainly applied to Engineering Machinery, ship crane, offshore equipment and oil well drilling.

Features

• Integrate different type of current and signal

• Compact size & Easy installation

• Smooth rotation and low maintenance requirements

Applications

• Winding machine

• Chemical equipment

• Ship & Ocean engineering

• Automation in industry

Optional

• Circuit number & Current

• Working speed

• Protection grade

• Signal type

Specification

ECN025-08P2-10S
Current & Circuits 8 wires*10A; 1group*PE; 5circuits * limitation data; 5circuits*Encode data
Rating Voltage 0~380VAC/VDC
Dielectric Strength ≥1000VAC@50Hz ; ≥300VAC@50Hz
Isolation resistance ≥500MΩ@500VDC; 300MΩ@100VDC
Contact resistance float Max 70mΩ (50rpm)
Lead wire size AWG17# Tin coated Teflon® UL 6 core shielded wires
Lead wire length Rotor : 500mm; Stator : 500mm
Operating speed 0~20rpm
Contact material Precious Metal
Housing material Aluminum alloy
Working temperature -20°C ~ +60°C
Working humidity <60%
Protect grade IP51
Install way Fix the rotor side to the guest main shaft with screws
Through hole diameter Ø25.4mm

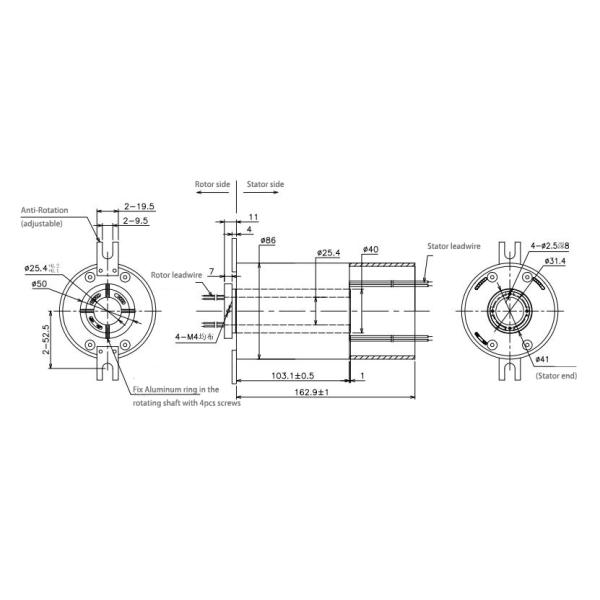

Outline Drawing

Power & Encode 18 Circuits Through Bore Slip Ring IP51 Speed 20rpm

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Power & Encode 18 Circuits Through Bore Slip Ring IP51 Speed 20rpm

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Power & Encode 18 Circuits Through Bore Slip Ring IP51 Speed 20rpm

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Power & Encode 18 Circuits Through Bore Slip Ring IP51 Speed 20rpm

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
