Carbon Brush Industrial Slip Ring Stainless Steel Big Rotary Union Long Lifespan
Carbon Brush Industrial Slip Ring Stainless Steel Big Rotary Union Long Lifespan
Carbon Brush Industrial Slip Ring Stainless Steel Big Rotary Union Long Lifespan
Carbon Brush Industrial Slip Ring Stainless Steel Big Rotary Union Long Lifespan
Carbon Brush Industrial Slip Ring Stainless Steel Big Rotary Union Long Lifespan
Carbon Brush Industrial Slip Ring Stainless Steel Big Rotary Union Long Lifespan
Carbon Brush Industrial Slip Ring Stainless Steel Big Rotary Union Long Lifespan
Carbon Brush Industrial Slip Ring Stainless Steel Big Rotary Union Long Lifespan
Specifications
Brand Name :
CENO
Model Number :
BHCN-C-260-08P
Certification :
CE,RoHS,UL,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
5000pcs month
Delivery Time :
Off the shelf
Packaging Details :
Carton/Crate
Current :
8*10A
Voltage :
1000VAC
Contact material :
copper graphite
Protection grade :
IP54
Rotation speed :
0-8 rpm
Through bore size :
260mm
Description

This is big bore rotary union of inner diameter 260mm,contact material apply imported copper graphite,reliable performance,low dust,long life.housing material uses stainless steel.It would be easier for you to choose the electronics brush slip ring. But if the current or voltage is large , carbon brushes slip ring is a better choice. You just need to tell us the parameters including channels, current of each channel, hole size, OD and so on, we will provide a suitable solutions and drawings for you in free according to your parameters.

Specification

BHCN-C-260-08P
Current 8*10A
Voltage 1000VAC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength ≥ 2000V@50Hz
Insulation resistance 500MΩ@500VDC
Operating speed 0-8 rpm
Contact material copper graphite
Housing material stainless steel
Operating temperature -20~+60℃
Through bore size 260mm
IP protection grade IP54

Applications

  • Marine engineering equipment
  • Vessel crane
  • Cable reel
  • Drilling platform

Optional

  • Voltage
  • Through hole size
  • Circuit number
  • Current rating
  • IP protection grade

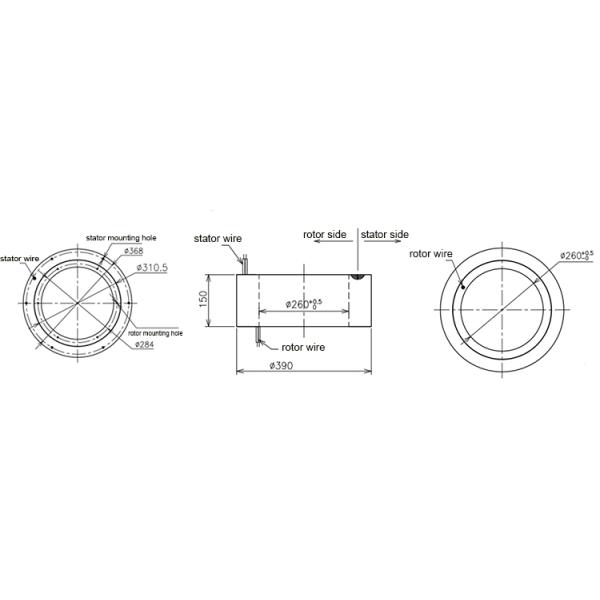

Outline Drawing

Carbon Brush Industrial Slip Ring Stainless Steel Big Rotary Union Long Lifespan

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
