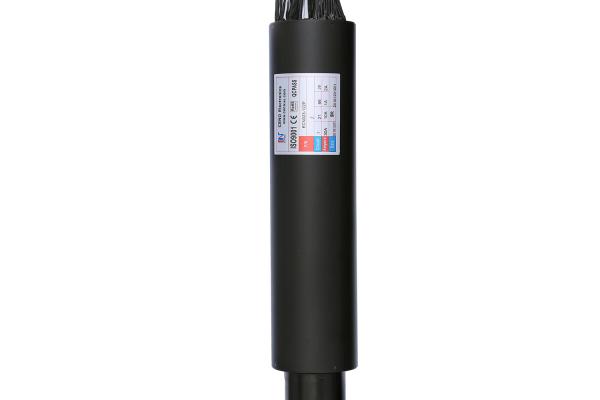

122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment
122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment
122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment
122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment
122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment
122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment
122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment
122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment
Specifications
Brand Name :
CENO
Model Number :
ECN023-122P
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current :
7*30A ; 21*10A ; 66*1A ; 28*2A
Rating Voltage :
400VAC/50VDC/220VAC
Working speed :
0~20rpm
Protection Grade :
IP54
Temperature :
-20°C~+60°C
Contact Material :
Gold to Gold
Description

122 Circuits Multi-Channels Slip Ring 1500mm Wire Length For Military Equipment

Our company CENO multi-channels slip rings' circuit number could reach more than 500 channels.It could integrate big or small current, digital signal, analog signal, fiber optic and radio frequency.it can still maintain the long life characteristic even if working speed will be 2000 rotation per minute.CENO can also provide many parameters for customer to choose ,such as outer diameter,inner diameter ,current,circuit number,IP protection.

Features

  • Smooth rotation and stable signal
  • Multi-channels
  • Integrate various signal

Application

  • Liquid filling machinery
  • Military equipment
  • Lithium battery equipment


Option

  • Circuit number
  • Protection grade
  • Signal type

Specification

ECN023-122P Specification Picture
Current 7*30A ;21*10A ;66*1A ;28*2A 122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment
Working temperature -20℃~+60℃
Protection grade IP54
Working speed 0~20rpm
Contact material Gold to Gold
Rating voltage 400VAC/50VDC/220VAC
Inner diameter 23mm
Housing material Aluminum alloy


Outline Drawing

122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

122 Circuits Industrial Slip Ring 1500mm Wire Length For Military Equipment

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
