High Precision Rotary Joint Slip Ring 38.1mm Inner Hole Diameter Low Friction
High Precision Rotary Joint Slip Ring 38.1mm Inner Hole Diameter Low Friction
High Precision Rotary Joint Slip Ring 38.1mm Inner Hole Diameter Low Friction
High Precision Rotary Joint Slip Ring 38.1mm Inner Hole Diameter Low Friction
Specifications
Brand Name :
CENO
Model Number :
ECN038-12P2-24P
Certification :
CE,RoHS,UL,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
5000pcs month
Delivery Time :
Off the shelf
Packaging Details :
Carton/Crate
Current :
12*10A,24*2A
Voltage :
250VAC
Electrical noise :
≤70mΩ(50rpm)
Contact material :
Precious metal
Protection level :
IP44
Rotate speed :
0~300rpm
Description

38.1mm Inner Hole Diameter Rotary Joint Slip Ring High Precision

Slip ring is a general name for slip ring assembly which contains some combination of power, electrical signals, data, liquids and gases passed through the same rotating joint. Through bore slip rings are provided with a center hole to provide clearances for shafts, rotary joints, optics and other axial structures needed for the function of the rotating assembly.The standard hole size has different spec from 12.7mm ~ 100mm.

Features

  • Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
  • Low friction,low torque, smooth rotation
  • Continuous 360o rotation of power or data signals


Applications

  • Process control equipment
  • Construction engineering
  • Package equipment
  • Industrial automation equipment


Optional

  • Through hole size
  • Circuit number
  • Installation way
  • IP protection grade

Specification

ECN038-12P2-24P Specification Picture
Current 12*10A,24*2A High Precision Rotary Joint Slip Ring 38.1mm Inner Hole Diameter Low Friction
Voltage 250VAC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance 500MΩ@100VDC
Operating speed 0-300 rpm
Contact material precious metals
Operating temperature -40~+80℃
Through bore size 38.1mm
IP protection grade IP44

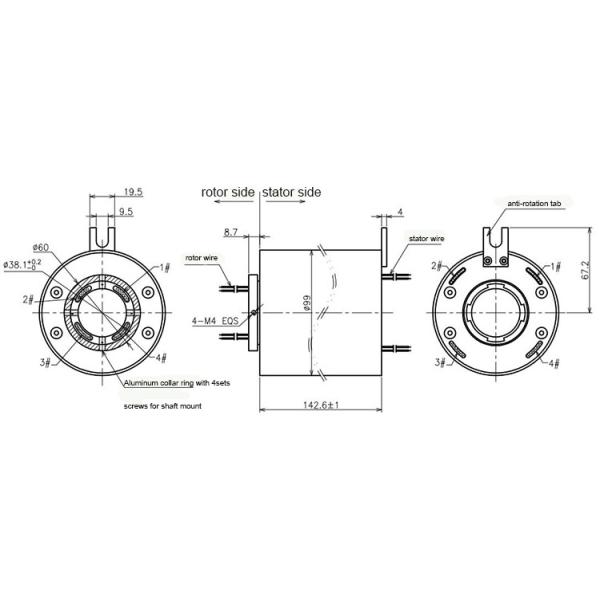

Outline drawing

High Precision Rotary Joint Slip Ring 38.1mm Inner Hole Diameter Low Friction

Why CENO

CENO is one technology company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

High Precision Rotary Joint Slip Ring 38.1mm Inner Hole Diameter Low Friction

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24/7 consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
