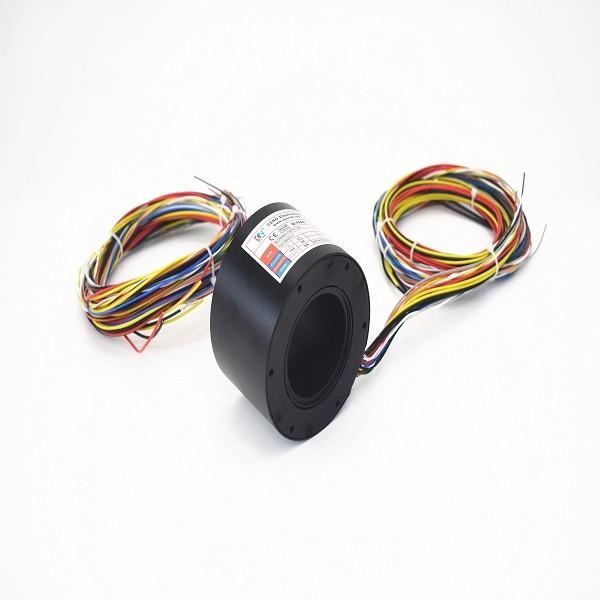

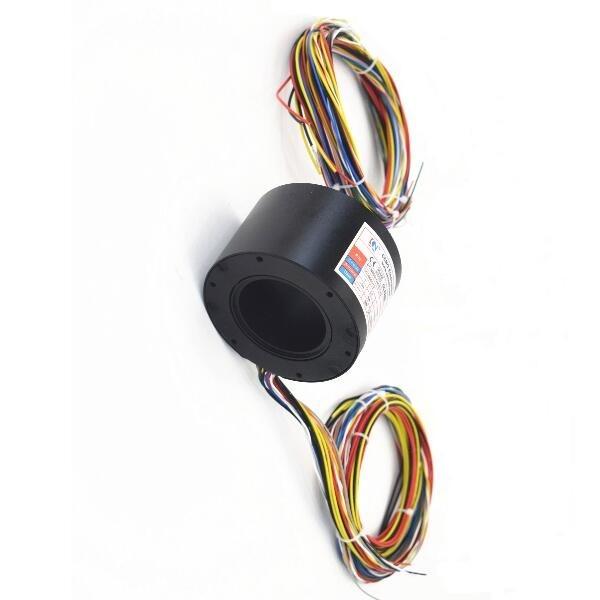

Precious Metal 55mm Through Hole Slip Ring Aluminium Alloy Housing

Compact inner structure through bore rotary joint slip ring with 55mm inner bore,outer diameter 99mm,aluminium housing​

Slip rings of the ECN series have the characteristics of precious metal contact and a long service life up to 230 million turns. Furthermore, they are water-proof, pressure-proof, and vibration resistant. Customizable lead wires and connectors support any plug-in including flying lead.The through bore can be used to routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints, high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges.ECN055-03P3-12S is a customized through bore slip ring with 55mm inner bore. ECN series is a family of robust through bore slip rings, with a central hole up to φ980mm, designed and manufactured by CENO with patented technology.

CENO also can meet different requirements for customer’s demand .



Specification

Features

• Signal & Data Compatible
• Outer diameter 99mm
• Long cable length
• Shaft mounting
• Continuous 360° rotation

Applications

• Medical machine
• Robot arms
• Radar antennas
• Military industry
• Packaging machine

Optional

• Through hole size
• Current & ring numbers
• Signal type
• IP protection grade
• Contacts material

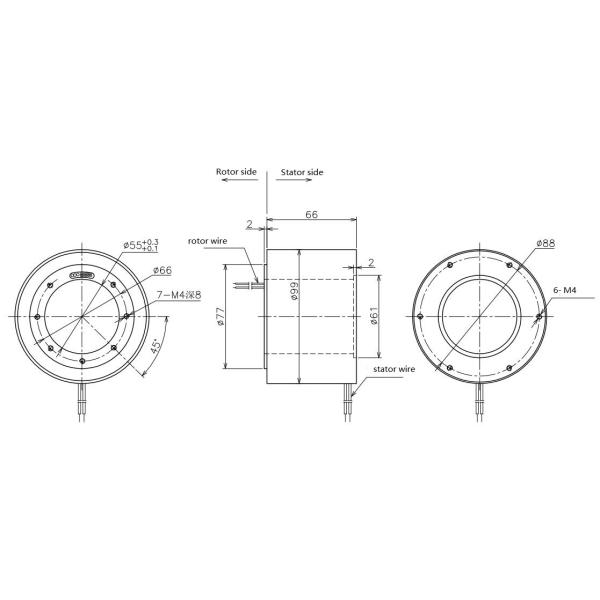

Outline Drawing






Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Certification
ISO9001,CE,RoHS,UL,Explosion-proof


CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
