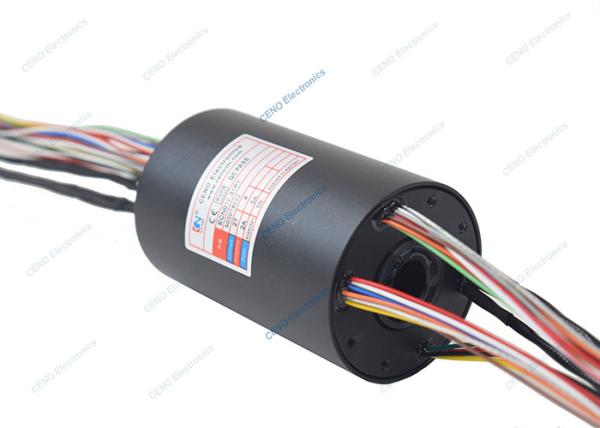

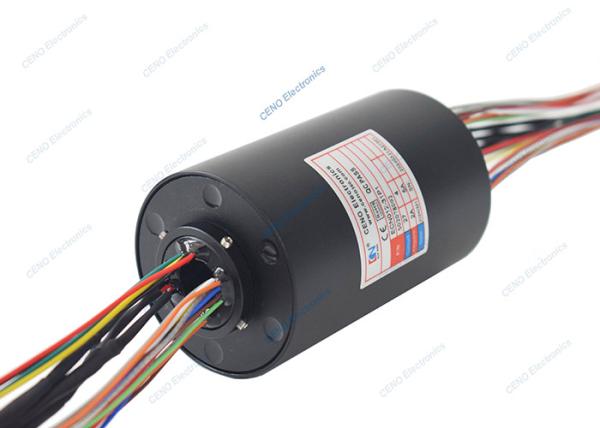

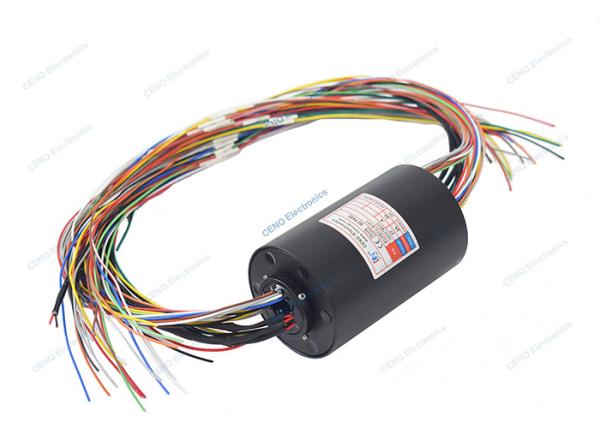

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic
31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic
31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic
31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic
31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic
31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic
Specifications
Brand Name :
CENO
Model Number :
ECN012-31P1
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current & Circuits :
27 Circuits* 2A; 4Circuits* 5A
Rating Voltage :
0~380VAC/VDC
Dielectric strength :
≥1000VAC@50Hz
Isolation resistance :
500MΩ@500VDC
Electrical noise :
≤30mΩ (50rpm)
Operating speed :
0~300rpm
Contact material :
Precious metal
Housing material :
Aluminum alloy
Working temperature :
-20°C~+60°C
Working humidity :
60%
IP protection grade :
IP51
Inner Diameter :
Ø12.7mm
External Diameter :
Ø56mm
Lead wire length :
Rotor: 300mm; Stator: 300mm
Installation :
Rotor side fixed on main shaft with screws
Description

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

ECN012-31P1 is CENO new customized through bore slip ring for Industry system, and have 27 circuits 2A current and 4 circuits 5A Electrical power. Through bore conductive slip ring is the most cost-effective and best-selling series of industrial slip rings currently. CENO through bore slip ring often combine power, data, signal, FORJs, RF, Pneumatic or Hydraulic as customer special request and without interference in one rotary system. Due to it’s excellent performance and high cost-effective, more and more applications in industrial field. More information please contact CENO expert.

Features

  • Optional for IP51,...IP67, IP68
  • Can integrate various Electric power, data, Signals etc.
  • High quality & Cost-effective
  • Install easy & Free maintenance

Applications

  • Highway toll system
  • Road monitoring system
  • Power collection system
  • Wind power equipment
  • Amusement equipment

Optional

  • Circuits, Voltage, Current
  • Contact / Housing Materials
  • Lead wire length / Size
  • Protection grade
  • Working speed

Specification

ECN012-31P1

 Specification
Current & Circuits 27 circuts * 2A; 4 circuits * 5A
Rating Voltage 0-380VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistance ≤30mΩ (50rpm)
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0~300rpm
Inner diameter Ø12.7mm
Lead wire Rotor:300mm; Stator:300mm
Installation Rotor side fixed on main shaft with screws

Outline Drawing

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
