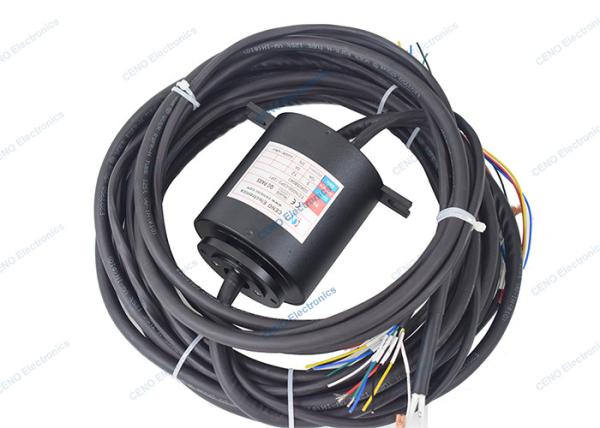

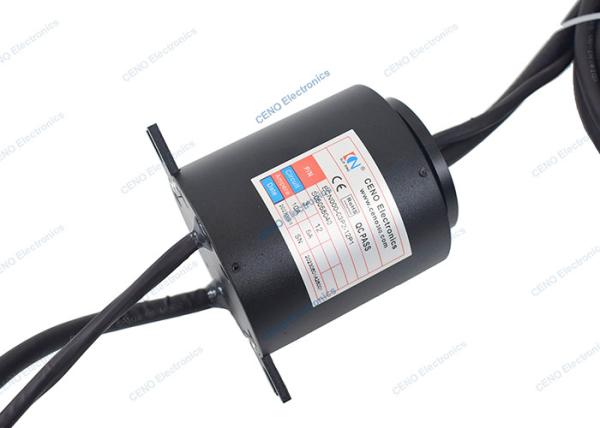

Economical Solid Power Electrical Slip Ring Assembly To Vehicular
Economical Solid Power Electrical Slip Ring Assembly To Vehicular
Economical Solid Power Electrical Slip Ring Assembly To Vehicular
Economical Solid Power Electrical Slip Ring Assembly To Vehicular
Economical Solid Power Electrical Slip Ring Assembly To Vehicular
Economical Solid Power Electrical Slip Ring Assembly To Vehicular
Specifications
Brand Name :
CENO
Model Number :
ECN000-03P2-12P1
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current & Circuits :
3circuits*10A; 12circuits*5A
Rating Voltage :
0~400VAC@50Hz
Dielectric strength :
≥1000VAC@50Hz
Isolation resistance :
≥500MΩ@500VDC
Electrical noise :
≤30mΩ (50rpm)
Operating speed :
0~300rpm
Contact material :
Precious metal
Housing material :
Aluminum alloy
Working temperature :
-20°C~+60°C
Working humidity :
60%
IP protection grade :
IP54
Lead wire size :
AWG20# Wire Teflon® UL 3 G 1.5mm²
Lead wire length :
Rotor : 4500mm Stator : 1500mm
Installation :
Fix up stator side with anti-rotation side shaft drives rotor running
External Diameter :
Ø86mm
Description

Economical Electrical Power Slip Ring with Solid Apply to Vehicular

ECN000-03P2-12P1 is CENO new design electrical power slip ring. It’s an economical and popular used on various industrial automatic system. For it’s stable performance, long service life and suitable rugged environments always applied to the Mine, Offshore, down-hole or Vehicular, even modern military vehicular, such as the tanks, turret. When it combined with the data signal or optic fiber, can be used on the commander station and the infrared sight. For more information about how CENO slip ring can fit your specific usages please contact us freely.

Features

  • Precious metal contacts for signal and data integrity
  • Supports modern data communication technologies
  • Install easy

Applications

  • Automatic machine
  • Packing machine
  • Vehicular
  • Mine
  • Down-hole machinery

Optional

  • Circuit, Voltage, Current
  • Protection Grade
  • Contact / Housing Materials
  • Sealing forms
  • Working speed

Specification

ECN000-03P2-12P1

 Specification
Current & Circuits

3circuits*10A; 12circuits*5A
Rating Voltage 0~400VAC@50Hz
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Electrical Noise 30mΩ (50rpm)
Contact material Precious metal
Housing material Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP54
Operating speed 0~300rpm
Lead wire size

AWG20# Wire Teflon® UL

3 G 1.5mm²

Lead wire length

Rotor : 4500mm

Stator :1500mm
External diameter Ø86mm

Outline Drawing

Economical Solid Power Electrical Slip Ring Assembly To Vehicular

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Economical Solid Power Electrical Slip Ring Assembly To Vehicular

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Economical Solid Power Electrical Slip Ring Assembly To Vehicular

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Economical Solid Power Electrical Slip Ring Assembly To Vehicular

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
