Specifications
Model Number :
Hrf512-05n
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Drying
Fuel :
Electric
Atmosphere :
Nitrogen/Air
Effective Chamber Dimensions :
800*800*800mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1500*1930*2000mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Industrial Debinding Muffle Furnace Oven Furnace Hot Air Drying
Product Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Drying
Fuel Electric
Atmosphere Nitrogen/Air
Effective Chamber Dimensions 800*800*800mm(W*H*D)
Transport Package Wooden Packaging
Specification 1500*1930*2000mm(W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Product Description

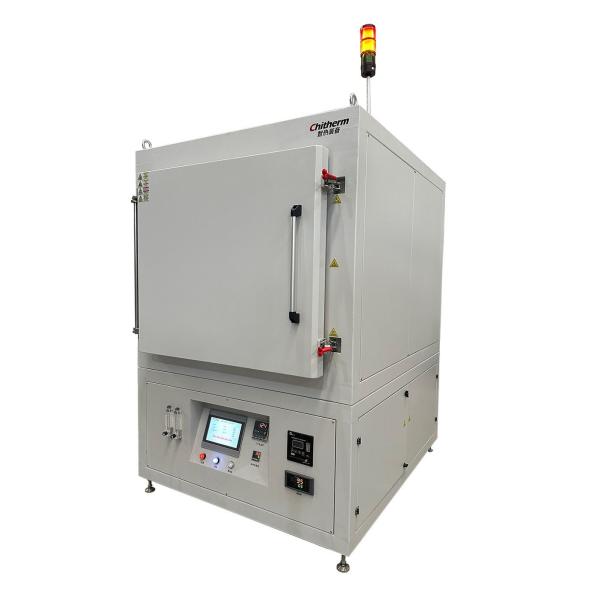

Industrial Electric Holding Furnace HRF512-05N Nitrogen Drying Furnace with wide range of industrial applications.

Applications

Used in thermal treatment processes including product drying and debinding.

Industrial Debinding Muffle Furnace Oven Furnace Hot Air Drying
Technical Specifications
  • Rated Temperature: 400ºC
  • Maximum Temperature: 500ºC
  • Effective Dimensions: 800 × 800 × 800mm (W×H×D)
  • Heating Method: Stainless Steel Heater
  • Process Atmosphere: Nitrogen
  • Temperature Control Stability: ±1ºC with PID parameter self-tuning
  • Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
  • Thermocouple: Type K
  • Temperature control points: 1
  • Temperature measurement points: 1 point
  • Process Steps: 4 × 10 steps
  • Exhaust: One DN50 exhaust port on top with manually adjustable vent size
  • Alarm System: Sound and light alarms for over temperature and thermocouple failure
  • Maximum Heating Power: 24kW
  • Insulation Power: ≤ 12kW
  • Surface Temperature Rise: ≤ 35ºC
  • Weight: approximately 1200kg
  • Furnace Dimensions: approximately 1500×1930×2000mm (W×H×D, without chimney)
  • Appearance Color: Light gray
  • Exhaust gas treatment: VOCs thermally decomposed through electric purification furnace
Industrial Debinding Muffle Furnace Oven Furnace Hot Air Drying
Delivery List
Item Note QTY
Basic Compositions
Dryer 1 PC
Certificates of Inspection Dryer and major purchased components 1 Set
Technical Documents Manual instructions, technical documents of major purchased components 1 Set
Key Parts
Heating Elements Stainless Steel Heater 1 Set
Temperature Controller 1 Set
Monitor Touch screen 1 Set
Spares
SSR 1 PC
Facility Requirements
  • Environmental conditions: Temperature 0-40ºC, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
  • Process air conditions: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, gas consumption 10m³/h
  • Ventilation system: Non-contact access to user pumping system with capacity >15m³/h
  • Ground requirements: Level surface, no obvious vibration, bearing capacity >300Kg/m²
  • Power conditions: Capacity >32kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz
  • Installation site: Minimum 2000mm×3000mm×3000mm (W×H×D), installation area >6m²
Industrial Debinding Muffle Furnace Oven Furnace Hot Air Drying
