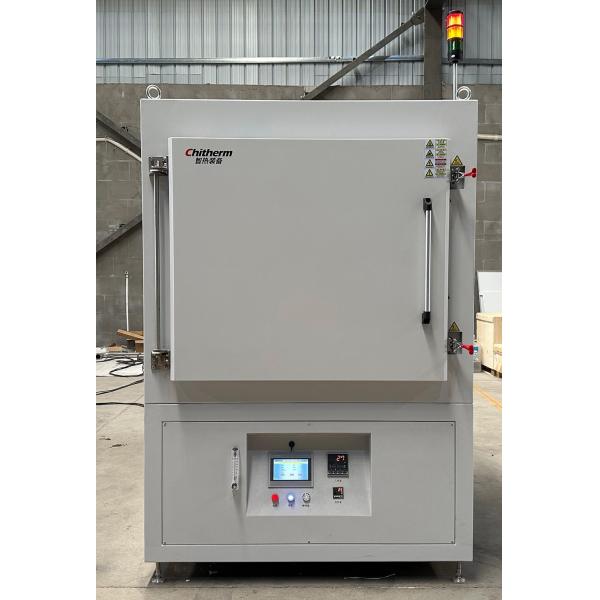

Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Specifications
Model Number :
Hrf512-07
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Drying
Fuel :
Electric
Atmosphere :
Nitrogen
Effective Chamber Dimensions :
800*800*800mm(W*H*D)
Thermocouple Type :
K Type
Transport Package :
Wooden Packaging
Specification :
1500*1930*2000mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Key Specifications
Model: HRF512-07
Effective Chamber Dimensions: 800 × 800 × 800mm (W×H×D)
Rated Temperature: 650ºC
Max Temperature: 700ºC
Heating Method: Stainless Steel Heater
Atmosphere: Nitrogen
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Applications

This industrial furnace is designed for multiple thermal processing applications including:

  • Powder materials processing
  • Magnetic materials treatment
  • Ceramics and glass manufacturing
  • Metal and plastic processing
  • Post-3D printing operations (drying, curing, debinding)
  • Tempering, annealing, aging, and preheating
Technical Specifications
  • Temperature Control Stability: ±1ºC
  • Temperature Uniformity: ±5ºC (after 1 hour insulation at 650ºC)
  • Thermocouple: Type K
  • Max Heating Power: 36kW
  • Heating Rate: ≤5°C/min (adjustable to 1°C/min)
  • Insulation Power: ≤18kW
  • Surface Temperature Rise: ≤35ºC
  • Weight: Approximately 1200kg
  • Furnace Dimensions: 1500×1930×2000mm (W×H×D)
  • Exhaust System: DN50 port with adjustable vent
  • Alarm System: Over-temperature and thermocouple failure alerts
Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace
Delivery Contents
Item Note Quantity
Basic Compositions Dryer 1 PC
Certificates Dryer and major components 1 Set
Technical Documents Manual and component specifications 1 Set
Key Parts Stainless Steel Heater 1 Set
Temperature Controller 2 Set
Touch Screen 1 Set
Spare Parts SSR, Heater, Seal gasket Multiple
Facility Requirements
  • Environment: 0-40ºC, ≤80% RH, no corrosive gas
  • Water Supply: Clean, ≤23°C, 0.2-0.4 MPa pressure
  • Ventilation: Minimum 15m³/h capacity
  • Floor: Level, >300Kg/m² load capacity
  • Power: >50kVA, 3-phase 380V, 50Hz
  • Installation Space: Minimum 6m² area
Additional Information
Brand Chitherm
Origin China
HS Code 8514101000
Supply Capacity 50 Sets/Year
Customization Available
Certification ISO
