Specifications
Brand Name :
Chitherm
Model Number :
BF150-17
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Delivery Time :
Customized
Packaging Details :
Customized
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
1740&;2780&;2505 (mm) (W×h×d)
Rated Temperature :
1650ºC
Maximum Temperature :
1700°c
Transport Package :
Wooden Packaging
Specification :
1740&; 2780&; 2505 (mm) (W× H× D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description
The Heating Element of The BF150-17 High-Temperature Bell Furnace Is U-Shaped Silicon Molybdenum Rod
Product Attributes
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Steel Molding
Fuel Electric
Atmosphere Air
Effective Chamber Dimensions 1740×2780×2505 (mm) (W×H×D)
Rated Temperature 1650°C
Maximum Temperature 1700°C
Transport Package Wooden Packaging
Specification 1740×2780×2505 (mm) (W×H×D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Product Description

Temperature Bell Furnace BF150-17 with maximum temperature of 1700°C, featuring customization options.

1. Equipment Name and Model

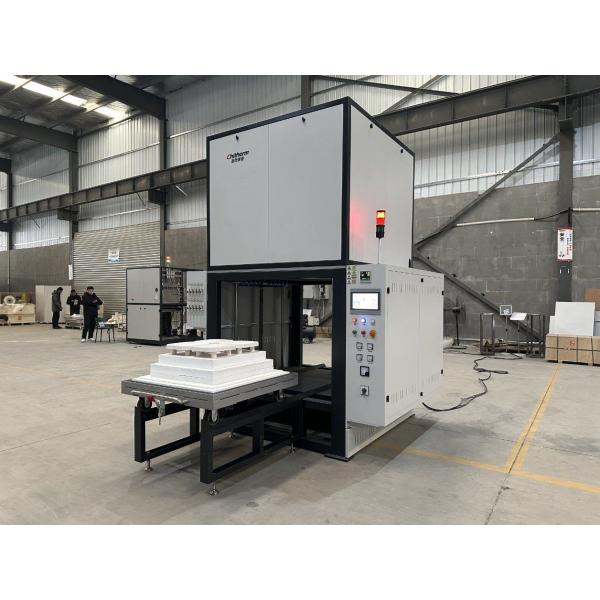

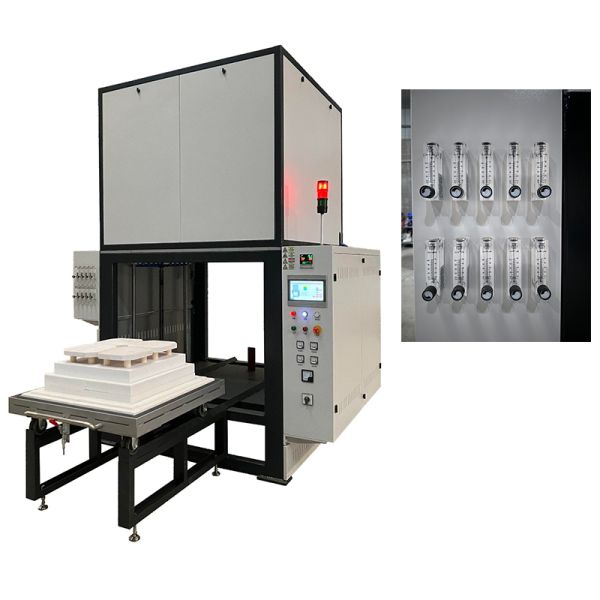

BF150-17 High-temperature Bell Furnace

2. Application Fields
  • Suitable for high-temperature sintering process of materials including ITO target materials, electronic ceramic materials, magnetic materials, and ceramic filters
  • Ideal for integrated process of degreasing and sintering of ITO target materials
3. Technical Indicators and Basic Configuration
Rated Temperature: 1650°C
Maximum Temperature: 1700°C
Effective Size: 550×500×550mm (Width×Height×Depth)
Maximum Heating Power: 50kW
Insulation Power of the Empty Furnace: ≤25kW
Heating Element: U-shaped silicon molybdenum rod (Manufacturer: Yantai Huoju, Model: U-shaped Φ6-12, Quantity: 20 pieces)
Furnace Temperature Uniformity: ±5°C (Tested in an empty furnace with a holding time of 2 hours at 1600°C)
Program Tracking Accuracy: ±2°C (when the temperature is higher than 600°C)
Temperature Control Accuracy: ±1°C (during the holding period on the high-temperature platform)
Heating Rate: 400°C to 1000°C ≤ 5°C/min, 1000°C to 1650°C ≤ 4°C/min
Number of Temperature Control Points: 1 point
Type of Thermocouple: B Graduation
Control Method: High-performance phase-shifting voltage regulation + SCR thyristor module control
Control Instrument: Imported temperature controller from Japan, with P.I.D control and self-tuning function; 10-inch large-screen touch-control and intelligent PID temperature controller
Maximum Lifting Stroke: Approximately 800mm, with a screw rod lifting system
Load Capacity of the Workbench: ≤1000Kg (including products and carriers)
Exhaust System: Exhaust chimney installed at the top for exhaust gas discharge
Protection Functions: Audible and visual alarm protection for over-temperature, broken thermocouple, overload, over-travel, deviation, etc.
Reference Dimensions: 1740×2780×2505 (mm) (Width×Height×Depth), excluding the control cabinet
Equipment Weight: Approximately 2000Kg
Structure of the Furnace Wall:
  • Side wall: Multi-piece splicing structure, made of aluminum oxide products
  • Furnace Bed: Multi-piece splicing structure, made of aluminum oxide products with 4 supporting plates for firing
  • Upper Layer of the Furnace Top: Arch-shaped multi-piece splicing structure, made of aluminum oxide products
The Heating Element of The Bf150-17 High-Temperature Bell Furnace Is U-Shaped Silicon Molybdenum Rod.
The Heating Element of The Bf150-17 High-Temperature Bell Furnace Is U-Shaped Silicon Molybdenum Rod.
Company Profile

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
