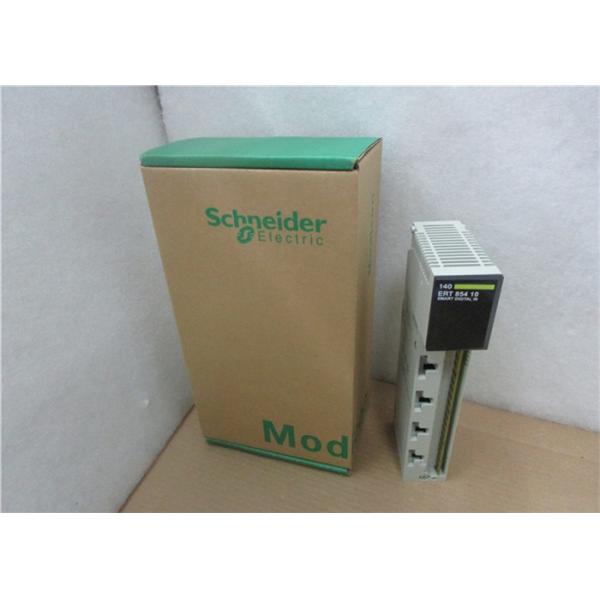

Schneider multifunction input module Modicon Quantum 140ERT85410
Schneider multifunction input module Modicon Quantum 140ERT85410
Schneider multifunction input module Modicon Quantum 140ERT85410
Schneider multifunction input module Modicon Quantum 140ERT85410
Specifications
Brand Name :
Schneider
Model Number :
140ERT85410
Place of Origin :
France
MOQ :
1
Price :
negotiable
Payment Terms :
TT West Union
Supply Ability :
100
Delivery Time :
2-3 work days
Packaging Details :
New in original box
Brand :
Schneider
Model :
140ERT85410
Series :
140
Product Name :
input module
Warranty :
12 months
Slots :
10
Condition :
New
Lead time :
In Stock
Country of origin :
France
Description

Schneider multifunction input module Modicon Quantum 140ERT85410

Specifications

Main
Range of product Modicon Quantum automation platform
Product or component type Multifunction input module
Number of terminals 40
Complementary
Function of module Status logging counting 500 Hz
Status monitoring on discrete inputs
Time and date stamped event logging
Time synchronisation protocol DCF77
Product compatibility Concept
Unity Pro
Group of channels 2 groups of 16 inputs for process input
Discrete input number 1 discrete input(s) at 24 V for clock signal input
32 discrete input(s) at 24...125 V for process input
Switching voltage 125 V at 1 mA for process input
24 V at 6 mA for process input
48 V at 2.5 mA for process input
60 V at 2.5 mA for process input
Maximum power consumption in W 7.5 W for process input
Insulation By optocoupler for clock signal input
Insulation between group of channels By optocoupler
Anti bounce filtering Configurable from 0 to 255 ms
Input state Inversion configurable
Acquisition time 1 ms for clock signal input
Input current 5 mA for clock signal input
Electrical connection Cable - shielded cable <600 m for process input
Cable - unshielded cable <400 m for process input
Connections - terminals Screw terminal block
Local signalling 1 LED (green) for communication on the bus (Active)
1 LED (green) for self test OK, module ready (R)
1 LED (red) for fault (F)
32 LEDs for status of inputs (1 to 32)
Current consumption 0.07 mA at 24 V DC 140XCP90000 module
3 mA at 24...125 V DC external power supply per group of channel
300 mA at 5 V DC bus
Module format Standard
Net weight 0.45 kg
Environment
Resistance to electrostatic discharge 4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -40…85 °C
Relative humidity 95 % without condensation
Operating altitude <= 5000 m
Protective treatment TC
Standards HazLoc
UL 508
Product certifications CSA Class 1 Division 2
UL
LR
C-Tick
GOST
Merchant Navy
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 16.5 cm
Package 1 Length 31.5 cm
Package 1 Weight 485 g
Contractual warranty
Warranty (in months) 18

140ERT85410 is a multi-functional discrete input module designed by Schneider Electric for the Modicon Quantum automation platform. It has 32 discrete input channels. It supports 500 Hz status monitoring and counting functions, and can record events with time and date stamps for discrete inputs, suitable for state acquisition and fault tracking in industrial automation. This module supports status log recording, facilitating system maintenance and diagnosis. The product offers fast shipping service and is commonly found in PLC system integration.

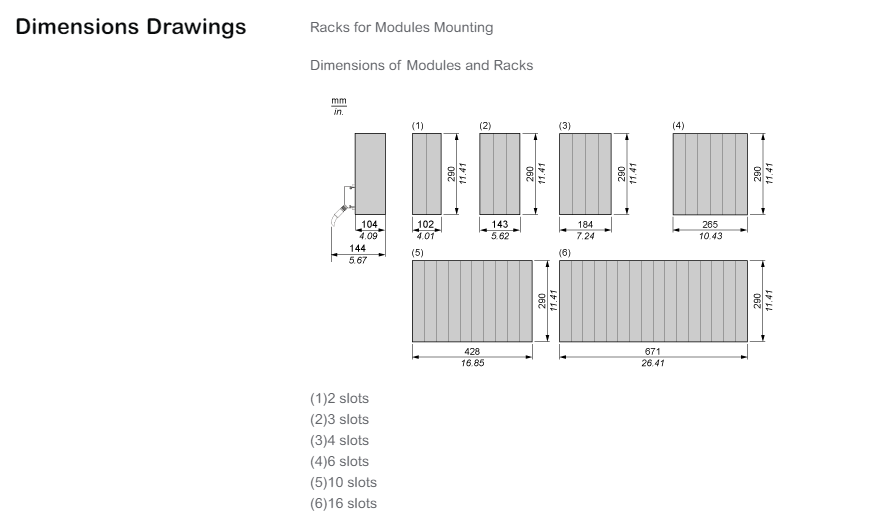

Schneider multifunction input module Modicon Quantum 140ERT85410
