Specifications
Brand Name :
Schneider
Model Number :
TSX3722001
Place of Origin :
France
MOQ :
1
Price :
negotiable
Payment Terms :
TT West Union
Supply Ability :
100
Delivery Time :
2-3 work days
Packaging Details :
New in original box
Brand :
Schneider
Model :
TSX3722001
Series :
TSX
Product Name :
Modular base controller
Micro :
TSX
Condition :
New
Lead time :
In Stock
Country of origin :
France
Description

Schneider Modicon TSX Micro Programmable Logic Controllers TSX3722001 ​

Description

This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This modular base controller has 3 slots. It is a modular base controller with a primary voltage of 100V to 240V, 90V to 264V AC and 0.5A output current. Integrated connections are 1 serial link Uni-Telway 19.2kbps and 1 Modbus RTU 19.2kbps. Its dimensions are 341.4mm (width) x 152mm (depth) x 151mm (height) and weighs 1.75kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine.

Specifications

Main
Range of product Modicon TSX Micro automation platform
Product or component type Modular base controller
Primary voltage 100...240 V 90…264 V AC
Input current 2 mA 60 A
Immunity to microbreaks 20 ms
Output current 0.5 A
Complementary
Number of slots 3
Analogue input type 0...10 V 8
Analogue output type 0...10 V 1
Counting input type Discrete incremental counter 1 10 Hz
Incremental 1 10 Hz
Integrated connection type 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s
Realtime clock With
Memory description Flash 15 Kwords data
Internal RAM 20 Kwords data
Internal RAM (with PCMCIA card) 128 Kwords program and data
Internal RAM 128 Kwords data storage
Maximum size of object areas 128 %KWi constant words
256 %Mi
1 %MWi internal words
Execution time per instruction 0.13 µs Boolean without PCMCIA card
4.5 µs arithmetic REAL floating without PCMCIA card
0.19 µs Boolean with PCMCIA card
4.5 µs arithmetic REAL floating with PCMCIA card
Execution time for 1 Kinstruction 5.88 100 % Boolean without PCMCIA card
0.27 65 % Boolean and 35 % numerical without PCMCIA card
4 100 % Boolean with PCMCIA card
0.266 65 % Boolean and 35 % numerical with PCMCIA card
Application structure 1 fast task
16 event tasks
1 master task
System overhead 2.3 ms for master task
Protection type Overload protection
Short-circuit
Network frequency 50...60 Hz
Total useful secondary power 24 W
Electromagnetic compatibility Electrostatic discharge conforming to IEC 1000-4-2 level 3
Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3
Resistance to fast transient conforming to IEC 1000-4-4 level 3
Immunity to impulse waves conforming to IEC 1000-4-5
Damped oscillatory wave conforming to IEC 1000-4-12
Immunity to electromagnetic interference conforming to IEC 61131-2
Environment
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -25…70 °C
Relative humidity 10…95 % without condensation for operation
5…95 % without condensation for operation
Operating altitude 0...2000 m

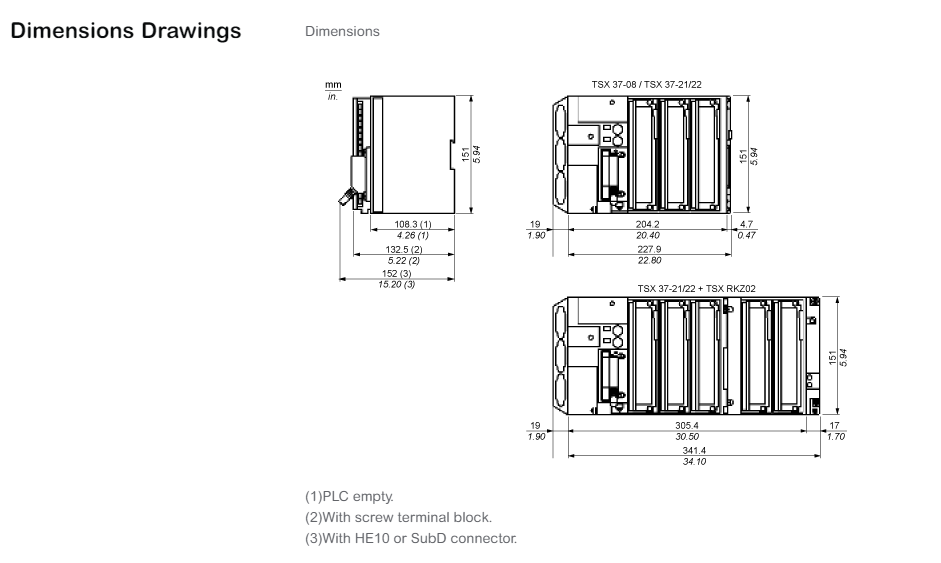

Width 341.4 mm
Height 151 mm
Depth 152 mm
Net weight 1.75 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.0 cm
Package 1 Width 17.0 cm
Package 1 Length 24.0 cm
Package 1 Weight 1.832 kg
Contractual warranty
Warranty (in months) 18
