ABB Drive Control Units RDCU02C Inverter Control Unit
ABB Drive Control Units RDCU02C Inverter Control Unit
ABB Drive Control Units RDCU02C Inverter Control Unit
ABB Drive Control Units RDCU02C Inverter Control Unit
ABB Drive Control Units RDCU02C Inverter Control Unit
ABB Drive Control Units RDCU02C Inverter Control Unit
ABB Drive Control Units RDCU02C Inverter Control Unit
ABB Drive Control Units RDCU02C Inverter Control Unit
ABB Drive Control Units RDCU02C Inverter Control Unit
ABB Drive Control Units RDCU02C Inverter Control Unit
Specifications
Brand Name :
ABB
Model Number :
RDCU02C
Place of Origin :
Sweden
MOQ :
1
Price :
negotiable
Payment Terms :
TT West Union
Supply Ability :
100
Delivery Time :
2-3 work days
Packaging Details :
New in original box
Brand :
ABB
Model :
RDCU02C
Weight :
0.8KG
Product Name :
I/O Module
Warranty :
12 months
Redundancy :
No
Servo Module :
Drive Control Units
Condition :
New
Lead time :
In Stock
Country of origin :
Sweden
Description
ABB Drive Control Units RDCU02C Inverter Control Unit
TYPE DESCRIPTION
Manufacturer ABB
Part Number/MPN RDCU-02C
Category Controllers, Automation Parts
Condition Brand New
Input Voltage 415v
Input Phase 3 Phase
Input Frequency 50HZ
Wiring

General

The shields of the I/O cables should be grounded to the chassis of the cubicle as close to the RDCU as possible.

Use grommets at all cable entries.

Handle fibre optic cables with care. When unplugging fibre optic cables, always grab the connector, not the cable itself. Do not touch the ends of the fibres with bare hands as the fibre is extremely sensitive to dirt.

The maximum long-term tensile load for the fibre optic cables included is 1 N; the minimum short-term bend radius is 25 mm (1”).

Digital/Analogue input/output connections

See the Firmware Manual of the application program in question.

Installation of optional modules

Follow the instructions given in the user manual of the module.

Other connections

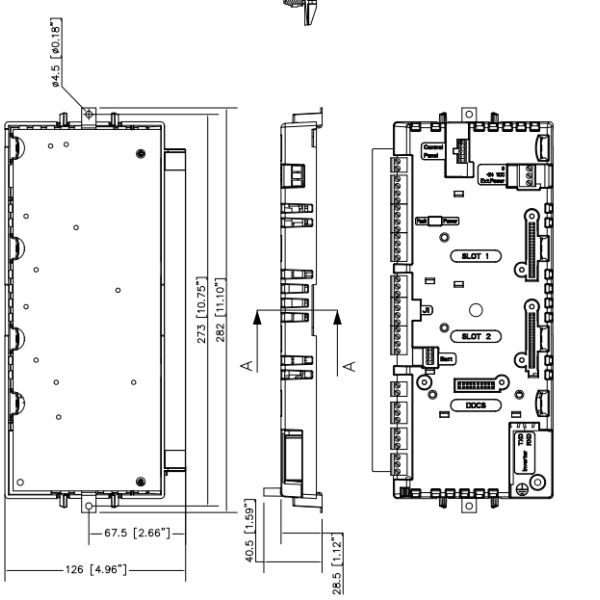

See also the wiring diagram below.

Powering the RDCU

The RDCU is powered through connector X34. The unit can be powered from the power supply board of the inverter (or IGBT supply) module, provided that the maximum current of 1 A is not exceeded.

The RDCU can also be powered from an external 24 V DC supply. Note also that the current consumption of the RDCU is dependent on the optional modules attached. (For current consumption of optional modules, see their respective user manuals.)

Fibre optic connection to inverter/IGBT supply module

Connect the PPCS link of the AINT (ACS 800 series modules) board of the inverter (or IGBT supply) module to fibre optic connectors V57 and V68 of the RDCU.

Note: The recommended maximum distances for the fibre optic link is 10 m (for plastic [POF] cable). In case longer distances are required, contact an ABB representative.
