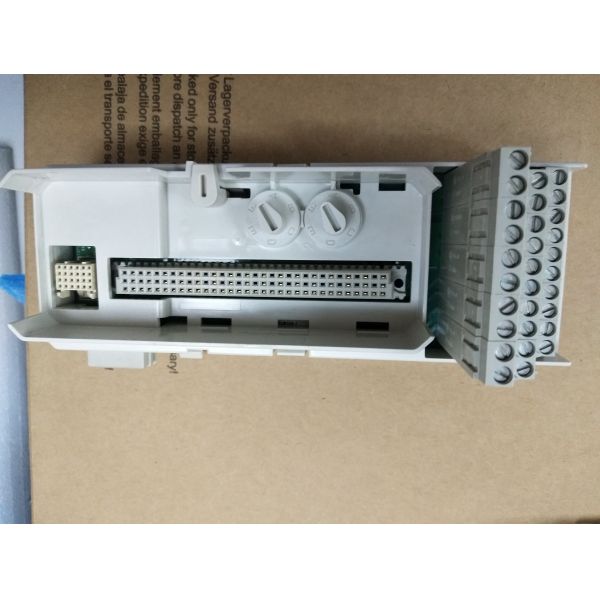

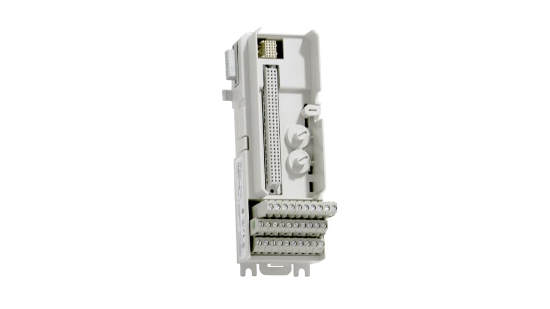

ABB 3BSE013230R1 Terminal block TU810V1 compact module termination unit
ABB 3BSE013230R1 Terminal block TU810V1 compact module termination unit
ABB 3BSE013230R1 Terminal block TU810V1 compact module termination unit
ABB 3BSE013230R1 Terminal block TU810V1 compact module termination unit
Specifications
Brand Name :
ABB
Model Number :
3BSE013230R1
Place of Origin :
Sweden
MOQ :
1
Price :
negotiable
Payment Terms :
TT West Union
Supply Ability :
100
Delivery Time :
2-3 work days
Packaging Details :
New in original box
Brand :
ABB
Model :
3BSE013230R1
Channels :
16
Product Name :
Terminal block
Warranty :
12 months
Redundancy :
No
Part No :
TU810V1
Condition :
New
Lead time :
In Stock
Country of origin :
Sweden
Description
ABB 3BSE013230R1 Terminal block TU810V1 compact module termination unit
General info
Article number 3BSE013230R1
Type Compact
Connection Terminal block
Channels 16
Voltage 50 V
Mounting Both directions
Mounting detail Horizontal 55 ºC (131 °F)
Vertical 40 ºC (104 °F)
Use with I/O AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820, DP840
Process connections 2 x 2 Process power, 5 x 2 Process power (0 V)
Single/redundant I/O Single

The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.

The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

Features and benefits
  • Compact installation of I/O modules using one-wire connections.
  • Up to 16 channels of field signals and process power connections.
  • Connections to ModuleBus and I/O modules.
  • Mechanical keying prevents insertion of the wrong I/O module.
  • Latching device to DIN rail for grounding.
  • DIN rail mounting
