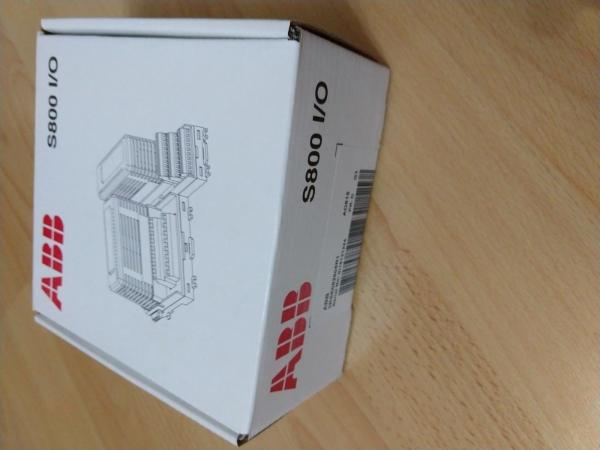

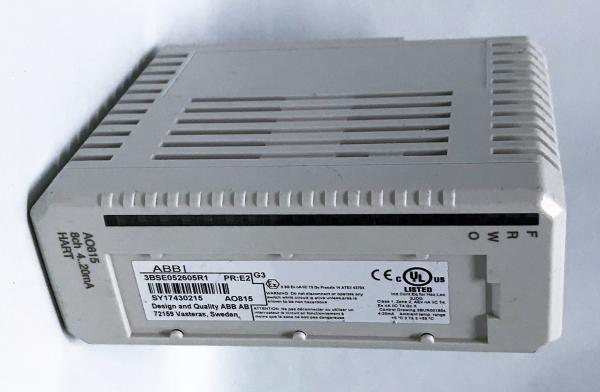

ABB AO815 Analog Output 1x8 chanels with HART 3BSE052605R1 S800 I/O Module
ABB AO815 Analog Output 1x8 chanels with HART 3BSE052605R1 S800 I/O Module
ABB AO815 Analog Output 1x8 chanels with HART 3BSE052605R1 S800 I/O Module
ABB AO815 Analog Output 1x8 chanels with HART 3BSE052605R1 S800 I/O Module
ABB AO815 Analog Output 1x8 chanels with HART 3BSE052605R1 S800 I/O Module
ABB AO815 Analog Output 1x8 chanels with HART 3BSE052605R1 S800 I/O Module
Specifications
Brand Name :
ABB
Model Number :
AO815
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
280 USD
Payment Terms :
T/T / Paypal
Supply Ability :
50
Delivery Time :
In Stock
Packaging Details :
New Original Box
Product Name :
Output Module
Model No. :
AO815
Article number :
3BSE052605R1
Signal specification :
4...20 mA
Number of channels :
8 channels
Signal Type :
Unipolar single ended
Type :
Analog Output
Mechanics :
S800
Description

ABB AO815 Analog Output 1x8 chanels with HART 3BSE052605R1 S800 I/O Module


Description of AO815

The AO815 Analog Output Module has 8 unipolar analog output channels. The module performs self-diagnostic cyclically. Module diagnostics include:

  • External Channel Error is reported (only reported on active channels) if the process power supply that supply voltage to output circuitry is too low, or the output current is less than the output set value and the output set value is greater than 1 mA (open circuit).
  • Internal Channel Error is reported if the output circuit can not give the right current value.
  • Module Error is reported in case of Output Transistor Error, Short Circuit, Checksum Error, Internal Power Supply Error or Watchdog error.

The module has HART pass-through functionality. Only point to point communication is supported. The output filter must be enabled on channels used for HART communication.


General Information

Type Analog Output
Signal specification 4..20 mA
Article number 3BSE052605R1
Number of channels 8
HART Yes
SOE No
Redundancy No
High integrity No
Intrinsic safety No
Mechanics S800

Detailed data

Resolution 12 bit
Isolation Groupwise isolated from ground
Under/over range ± 15%
Output load Max 750 Ω
Error Max. 0.1%
Temperature drift Max. 50 ppm/°C
Input filter (rise time 0-90%) 23 ms (0-90%), max 4 mA / 12.5 ms
Update cycle time 10 ms
Current limiting Short circuit proof current limited output
Maximum field cable length 600 meters (656 yards)
Rated insulation voltage 50 V
Dielectric test voltage 500 V a.c.
Power dissipation 3.5 W (typ.)
Current consumption +5 V Modulebus Max. 125 mA
Current consumption +24 V Modulebus 0
Current consumption +24 V external Max. 165 mA

Diagnostics

Front LED’s F(ault), R(un), W(arning), O(SP)
Supervision Module Error: Output power low. Channel Error: Open circuit (for current >1 mA)
Status indication of supervision Module Error, Module Warning, Channel Error

I/O Modules

AI801 AI810 AI815 AI820 AI825
AI830A AI835A AI843 AI845 AI880A
AI890 AI893 AI895 AO801 AO810V2
AO815 AO820 AO845A AO890 AO895
DI801 DI802 DI803 DI810 DI811
DI814 DI818 DI820 DI821 DI825
DI828 DI830 DI831 DI840 DI880
DI890 DO801 DO802 DO810 DO814
DO815 DO818 DO820 DO821 DO828
DO840 DO880 DO890 DP820 DP840

Features and benefits

  • 8 channels of 4...20 mA
  • 1 group of 8 channels isolated from ground
  • Analog inputs are short circuit secured to ZP or +24 V
  • HART pass-through communication


Dimensions

Height 119 mm (4.7”)
Width 45 mm (1.77”)
Depth 102 mm (4.01”), 111 mm (4.37”) including connector
Weight 0.21 kg (0.46 lbs.)

Compability

Use with MTU TU810, TU812, TU814, TU830, TU833
Keying code DB



Some ABB items sold by WTL:

ABB AO815 Analog Output 1x8 chanels with HART 3BSE052605R1 S800 I/O Module

Liability:

WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.





Our Brands:

【Honeywell】 Module DCS/PLC/Transmitter
【Emerson/Delta V】 Module/ CT Motor & Drives
【ABB】 I/O Module
【AB】 Module&Touch Screen
【Rosemount】 Transmitter
【Yokogawa】 Transmitter
【Yaskawa】 Servo Drive&Servo Motor
【GE/Fanuc】 IC69 Series PLC
【Mitsubishi】 Servo Drive&Servo Motor


(Modicon,SMC,SICK,NORGREN,Siemens,Ebmpapst etc.)
