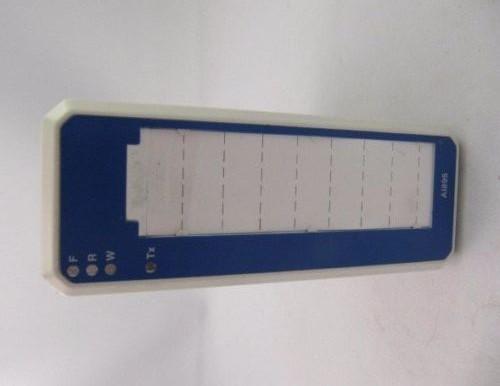

ABB S800 Series Analog Input Module AI895 3BSC690086R1, 8 channel, 4-20mA/Hart
ABB S800 Series Analog Input Module AI895 3BSC690086R1, 8 channel, 4-20mA/Hart
ABB S800 Series Analog Input Module AI895 3BSC690086R1, 8 channel, 4-20mA/Hart
ABB S800 Series Analog Input Module AI895 3BSC690086R1, 8 channel, 4-20mA/Hart
ABB S800 Series Analog Input Module AI895 3BSC690086R1, 8 channel, 4-20mA/Hart
ABB S800 Series Analog Input Module AI895 3BSC690086R1, 8 channel, 4-20mA/Hart
Specifications
Brand Name :
ABB
Model Number :
AI895
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
280 USD
Payment Terms :
T/T / Paypal
Supply Ability :
50
Delivery Time :
In Stock
Packaging Details :
New Original Box
Product Name :
Input Module
Model No. :
AI895
Article number :
3BSC690086R1
Signal specification :
4...20 mA
Number of channels :
8 channels
Signal Type :
Unipolar single ended
Type :
Analog Input
Mechanics :
S800
Description

ABB S800 Series Analog Input Module AI895 3BSC690086R1, 8 channel, 4-20mA/Hart


Description of AI895 :

The AI895 Analog Input Module can directly interface 2-wire transmitters and with a particular connection it can also interface 4-wire transmitters without losing the HART capability. The AI895 Analog Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can power and monitor a two-wire process transmitter and HART communication. The input voltage drop of the current input is typically 3 V, PTC included. The transmitter supply for each channel is able to provide at least 15 V at a 20 mA loop current to power Ex certified process transmitters and is limited to 23 mA in overload conditions.

TU890 and TU891 Compact MTU can be used with this module and it enables two wire connection to the process devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications.


General Information

Type Analog Input
Signal specification 4...20 mA
Article number 3BSC690086R1
Number of channels 8
Signal type Unipolar single ended
HART Yes
SOE No
Redundancy No
High integrity No
Intrinsic safety Yes
Mechanics S800

I/O Modules

AI801 AI810 AI815 AI820 AI825
AI830A AI835A AI843 AI845 AI880A
AI890 AI893 AI895 AO801 AO810V2
AO815 AO820 AO845A AO890 AO895
DI801 DI802 DI803 DI810 DI811
DI814 DI818 DI820 DI821 DI825
DI828 DI830 DI831 DI840 DI880
DI890 DO801 DO802 DO810 DO814
DO815 DO818 DO820 DO821 DO828
DO840 DO880 DO890 DP820 DP840


Detailed data

Resolution 12 bit
Isolation Groupwise isolated from ground
Under/over range 1.5 / 22 mA
Error Typ. 0.05%, Max. 0.1%
Temperature drift Typ. 100 ppm/°C
Input filter (rise time 0-90%) 20 ms
Current limiting Built in current limited transmitter power
CMRR, 50Hz, 60Hz >80 dB
NMRR, 50Hz, 60Hz >10 dB
Rated insulation voltage 50V
Dielectric test voltage 500V a.c.
Power dissipation 4.75 W
Current consumption +5 V Modulebus Typ. 130 mA
Current consumption +24 V external Typ. 270 mA, Max. <370 mA

Diagnostics

Front LED’s F(ault), R(un), W(arning), Tx (HART communiation)
Supervision Internal process supply

Features and benefits

• 8 channels for 4...20 mA, single ended unipolar inputs.

• HART communication.

• 1 group of 8 channels isolated from ground.

• Power and monitor for Ex certified two-wire transmitters.

• Non energy-storing analog inputs for externally powered sources.


Compability

Use with MTU TU890, TU891 or TU891Z
Keying code AE


Dimensions

Height 119 mm (4.7”)
Width 45 mm (1.77”)
Depth 102 mm (4.01”), 111 mm (4.37”) including connector
Weight 0.2 kg (0.44 lbs.)


Terminal:

TU814V1 TU810V1 TU833 TU838 TU812V1 TU850 TU830V1
