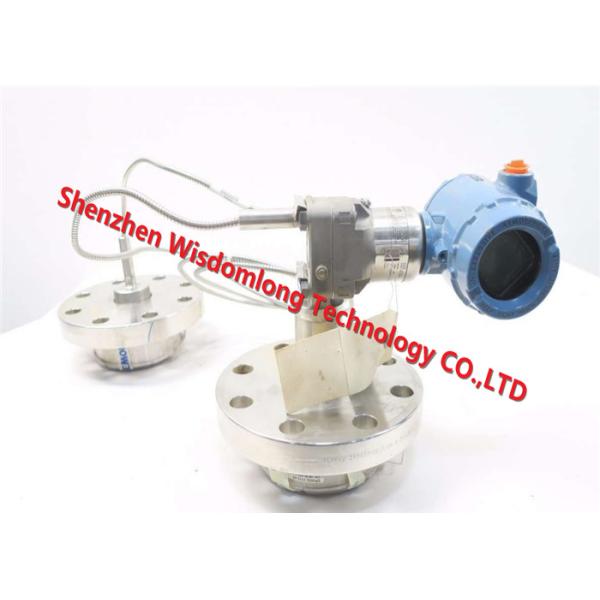

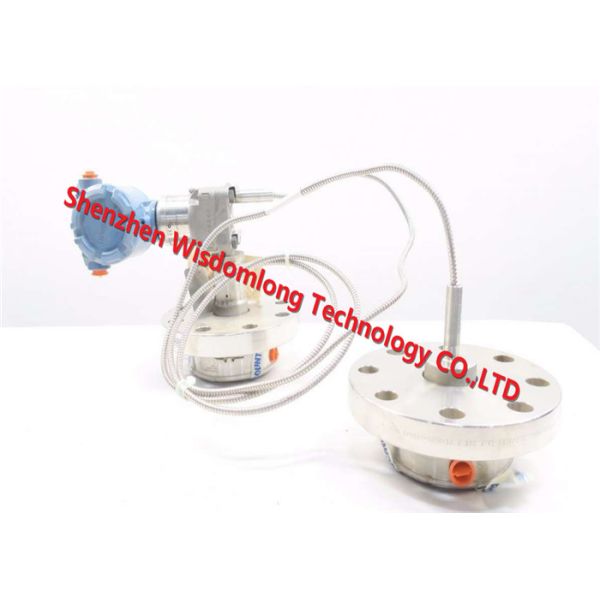

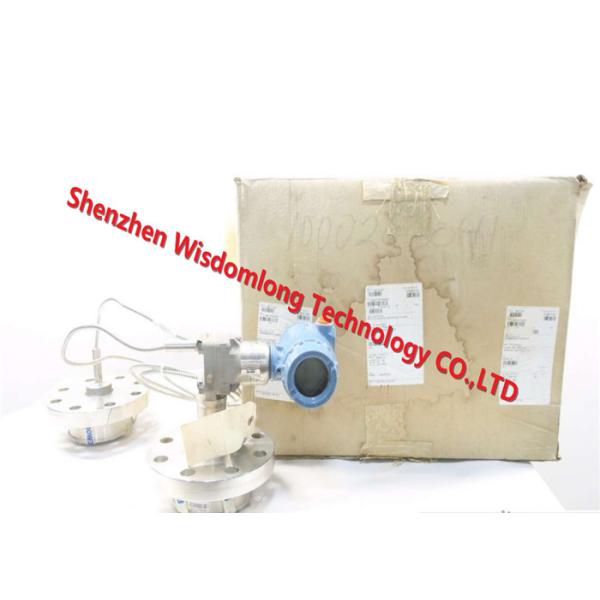

3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
Specifications
Brand Name :
3051S1CD4A2B12F1AD4K6M5Q4T1A1003
Model Number :
3051S1CD4A2B12F1AD4K6M5Q4T1A1003
Certification :
CE
Place of Origin :
Singapore
MOQ :
1
Price :
Contact
Payment Terms :
T/T / Paypal
Supply Ability :
100
Delivery Time :
5-8DAYS
Packaging Details :
New Original Box
Category :
Pressure Temperature Transmitter
Type :
Pressure Transmitter
Model :
3051S1CD4A2B12F1AD4K6M5Q4T1A1003
Output Signal :
4-20 mA
Reference Accuracy :
±0.04% of Span
Style :
S1
Burst Pressure Limit :
10,000 psig (689.5 bar)
Accuracy :
±0.1% FS
Description

3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter

3051S1CD4A2B12F1AD4K6M5Q4T1A1003 Description

The 3051S1CD4A2B12F1AD4K6M5Q4T1A1003 is a high-precision, scalable Coplanar pressure transmitter designed for differential pressure, gauge pressure, and absolute pressure measurements in industrial processes. It features an all-welded hermetic SuperModule platform for exceptional overpressure and line pressure resistance, ensuring long-term stability and accuracy. With a wide measurement range and advanced diagnostics, it delivers reliable performance in harsh environments, supporting critical applications in oil and gas, refining, chemical, power, and water/wastewater industries.

3051S1CD4A2B12F1AD4K6M5Q4T1A1003 Key Features

  • Ultra-High Precision: Up to 0.025% of span accuracy with 200:1 turndown ratio, ensuring reliable measurements across wide operating ranges.
  • Long-Term Stability: 15-year stability guarantee and up to 15-year limited warranty, reducing maintenance costs and downtime.
  • Coplanar Design: Patented Coplanar flange technology enables integrated manifold mounting, simplifying installation and reducing leak points.
  • Advanced Diagnostics: Built-in loop integrity, process intelligence, and plugged impulse line detection for proactive maintenance and process optimization.
  • Multi-Protocol Communication: Supports 4-20 mA HART, WirelessHART, and FOUNDATION Fieldbus for flexible integration with control systems.
  • Robust Construction: All-welded hermetic design resists vibration, temperature extremes, and corrosive process fluids, ensuring reliable operation in demanding conditions.
  • Safety Certified: SIL 2/3 certified to IEC 61508, meeting the highest safety standards for critical process applications.

3051S1CD4A2B12F1AD4K6M5Q4T1A1003 Materials & Applications

Materials

  • Process Wetted Parts: 316L stainless steel, Alloy C-276, Alloy 400, Tantalum, gold-plated Alloy 400, or gold-plated 316L stainless steel (selectable based on process requirements).
  • Housing: Cold-rolled steel with corrosion-resistant coating, providing mechanical protection and durability.
  • Sensor Module: High-stability piezoresistive sensor with industrial-grade electronic components for long-term reliability.
  • Sealing Components: PTFE, graphite-based gaskets, and high-performance elastomers for leak-proof operation.
  • Electronics: Industrial-grade FR-4 printed circuit boards with conformal coating for enhanced EMI/ESD protection.

Typical Applications

  • Oil & Gas Production: Wellhead monitoring, separator control, and pipeline pressure measurement.
  • Refining & Petrochemicals: Distillation columns, reactors, and pipeline systems in corrosive environments.
  • Power Generation: Boiler drum pressure, steam line monitoring, and feedwater systems.
  • Chemical Processing: Reactors, mixers, and storage tanks with aggressive or corrosive fluids.
  • Water & Wastewater: Treatment plants, pump stations, and reservoir level/pressure monitoring.
  • Pharmaceutical & Food & Beverage: Sanitary process lines and clean-in-place (CIP) systems.

3051S1CD4A2B12F1AD4K6M5Q4T1A1003 Important Parameters

Parameter Specification
Part Number 3051S1CD4A2B12F1AD4K6M5Q4T1A1003
Measurement Type Differential Pressure (CD)
Supply Voltage 10.5 – 42.4 V DC
Calibration Range 0 – 150 kPa (0 – 21.75 psi)
Accuracy Up to ±0.025% of span (Range 2–4); ±0.04% of span (spans <10:1)
Turndown Ratio Up to 200:1
Output Signal 4–20 mA with HART; optional FOUNDATION Fieldbus/WirelessHART
Overpressure Protection Up to 2000 psi (137.9 bar) (line pressure for CD models)
Process Connection Coplanar flange (1/2"–14 NPT female options available)
Operating Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Humidity 5–95% RH, non-condensing
Protection Degree IP66 (front) / IP20 (rear)
Weight Approx. 16.3 kg (36.0 lbs)
Certifications SIL 2/3 (IEC 61508), CE, UL, cUL, RoHS, NACE, NSF
Warranty Up to 15-year limited warranty

3051S1CD4A2B12F1AD4K6M5Q4T1A1003 10.5 - 42.4 V-DC Pressure Temperature Transmitter
