High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
Specifications
Brand Name :
3A Rubber
Model Number :
3A4010
Certification :
ISO9001
Place of Origin :
China
MOQ :
1piece
Price :
USD10.00/piece
Payment Terms :
L/C,D/P,T/T,Western Union,
Supply Ability :
100000pieces/month
Delivery Time :
3-7days
Packaging Details :
packing in bags and cartons
Material :
Rubber + Steel
Hardness :
40-80shore A
Name :
anti vibration mount rubber mounting feet
Keyword :
anti vibration rubber mounts
Tensile strength :
8-15Mpa
Elongation :
350%
Size :
Standard Size
OEM :
Agreed and under Buyer's Drawing
Description
High Hardness Anti Vibration Mount Rubber Mounting Feet
Premium Quality Marine Anti-Vibration Mounts
Our marine rubber mounting features a bell-type shock absorber screw design with professional technology and unique formulation. Manufactured using full sets of injection molds for seamless construction without mold lines, these mounts offer easy installation in compact spaces, specifically designed for ship engines.
Key Features
  • Rectangular cap with female screw made from high-quality zinc-coated metal sheet
  • Sturdy bottom support metal sheet with 2 sockets
  • High-quality NBR/NR rubber core with full adhesive bonding to metal components
  • Overload protection shock absorber for marine applications
  • Effective noise and vibration isolation for diesel generators and marine engines
  • Low compression design with high tensile and compressive resistance
  • 3-way axis control with vertical elasticity for improved vibration isolation
  • Special safety lock design for enhanced operational security
Technical Specifications
Type Marine 1, 2, 3, 4
Material Blue zinc-plated steel or SS304/SS316 (custom available under MOQ)
Rubber NR, NBR (default NR 60 shore A)
Quality Industrial grade
Color Natural galvanized
Construction Metal cap with screw thread (top), high tensile rubber (middle), metal seat with grooves (bottom)
Surface Smooth
Tensile Strength 8-15 MPa
Hardness 45, 50, 60, 70, 80 ±5 shore A
Elongation 350%
Density 1.4 g/cm³
Tear Strength 2.7 kN/m
Working Temperature -40°C to +120°C
Size Standard sizes available without mold cost
Packing Bags, cartons, and crates
Application
Designed for anti-vibration and shock absorption in marine generators, engines, and motors on ships and vessels. Ideal for systems weighing 32-3000 kgs with frequency less than 8Hz.
Product Images

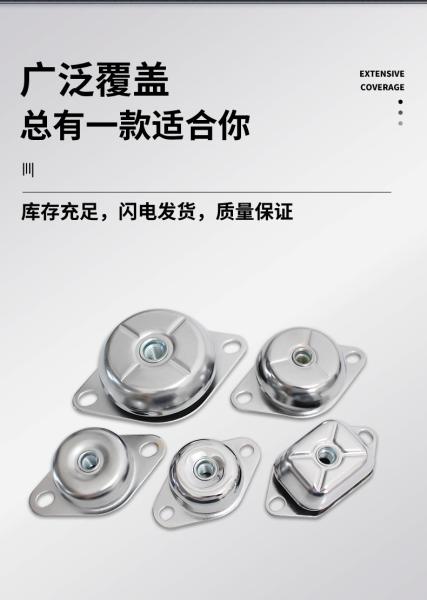

High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts

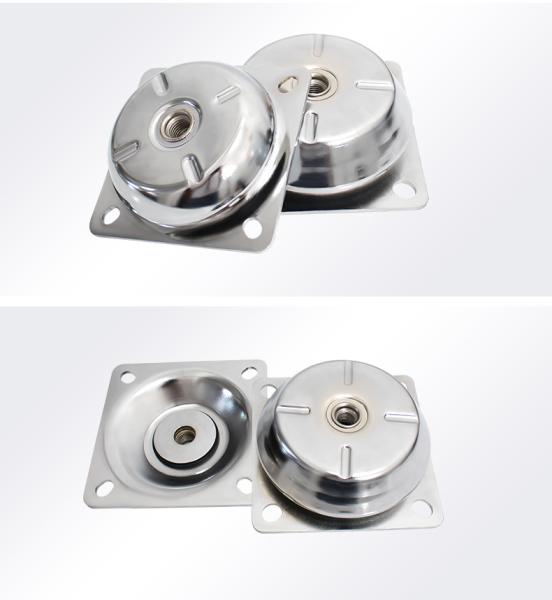

High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts

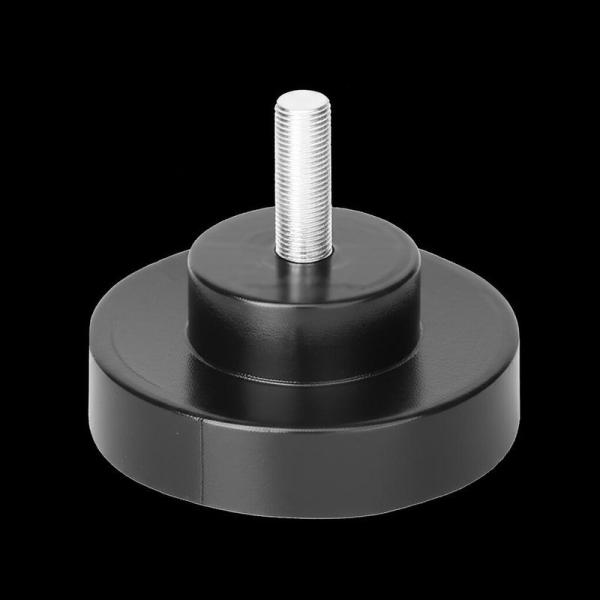

High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts

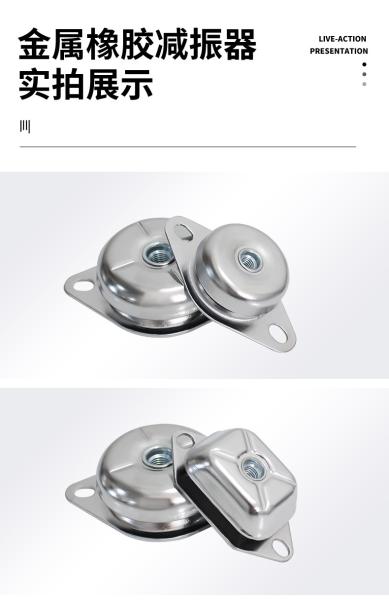

High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts

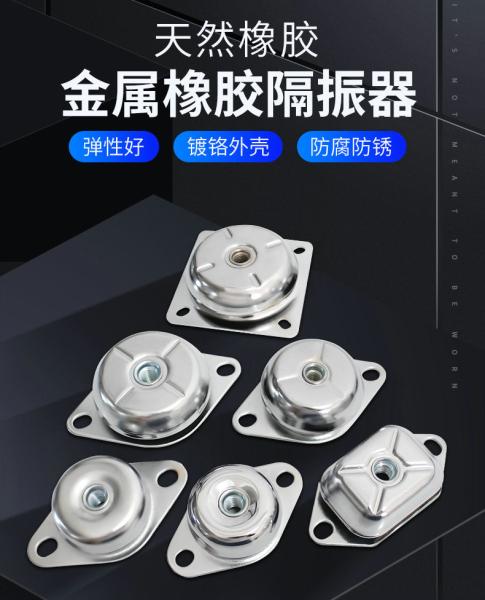

High Hardness Marine Application Rubber Mounting Feet with Overload Protection for Anti Vibration Mounts
When making an inquiry, please confirm the item number and quantity required. Custom OEM sizes available upon agreement.
