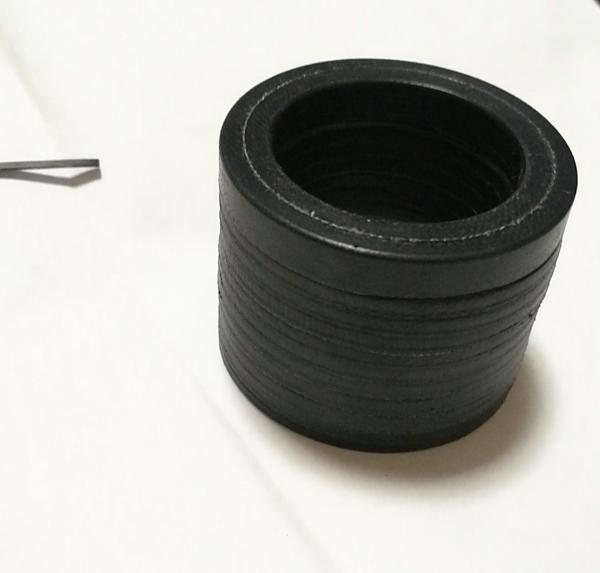

Smooth Surface Silicone Rubber Washers Vee Seal Black Color Full Sets Mould
5in1, 7in1 Vee Packing, Vee Seal, Vee Ring Made With NBR and Fabrics
These high-performance rubber seals are manufactured using advanced vulcanizing press techniques with various rubber materials including NR, NBR, SBR, EPDM, neoprene, FKM, silicone, and PTFE. Engineered for superior durability and performance, they offer excellent tensile strength, flexibility, and resistance to aging, ozone, heat, and various media.
| Material |
NR, NBR, SBR, EPDM, neoprene, FKM, silicone, PTFE |
| Type |
Rubber gasket, O ring, X ring, ER ring, VA ring, VS ring, Vee packing 7in1, TDP pistonal seal and oil seal of SA, SB, SC, TA, TB, TC |
| Quality |
Industrial grade, food grade, medical grade |
| Color |
Black, brown, red, grey, white |
| Surface |
Smooth |
| Tensile Strength |
6-20Mpa |
| Hardness |
40, 50, 60, 70, 80+/-5shore A |
| Elongation |
200%-600% |
| Density |
1.2-2.1g/cm3 |
| Tear Strength |
26-68N/mm |
| Working Temperature |
-60°C to +320°C |
| Size |
Standard mould and size, or custom sizes according to buyer's sample or drawing |
Key Features
- High tensile strength and flexibility
- Excellent resistance to aging, ozone, and heat
- Superior insulation properties
- Resistant to fuel oil and lubricants
- Operates in air, water, oil, and acid-base media
- Wide temperature range operation (-60°C to +320°C)
- Available in multiple grades (industrial, food, medical)
When making an inquiry, please confirm the type, color, size, quantity, or provide your technical drawing for custom orders.
