0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
0.5-6.0mm Thickness 1.0-1.2m Width 10m Length NBR Rubber Sheet for Industrial Seal
Specifications
Brand Name :
3A Rubber
Model Number :
3A5009
Certification :
ISO9001
Place of Origin :
China
MOQ :
50m
Price :
USD15.00/SQM for 1mm Thickness
Payment Terms :
L/C,D/P,T/T,Western Union,
Supply Ability :
1000000SQM/month
Delivery Time :
10-15days
Packaging Details :
packing in rolls and crates
Material :
NBR+Fabric+NBR
Color :
Black
Surface :
Smooth
Tensile Strength :
8Mpa
Hardness :
60shore A
Elongation :
350%
Density :
1.4g/cm3
Size1 :
0.5-2.0mm x 1-1.2m x 10m x 1PLY
Size2 :
2.0-6.0mm x 1-1.2m x 10m x 2PLY
Description
0.5 - 6.0mm X 1.0 - 1.2mm X 10m NBR Diaphragm Rubber Sheet For Industrial Seal

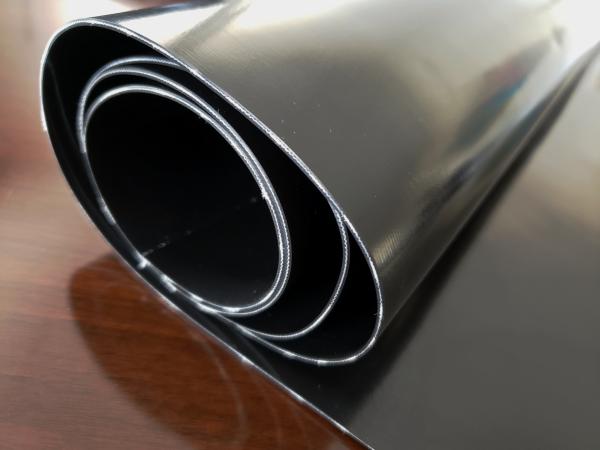

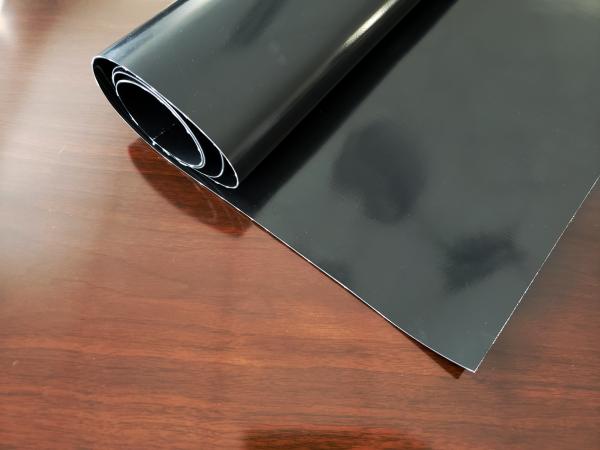

Black NBR Diaphragm Rubber Sheet with Fabric Insertion

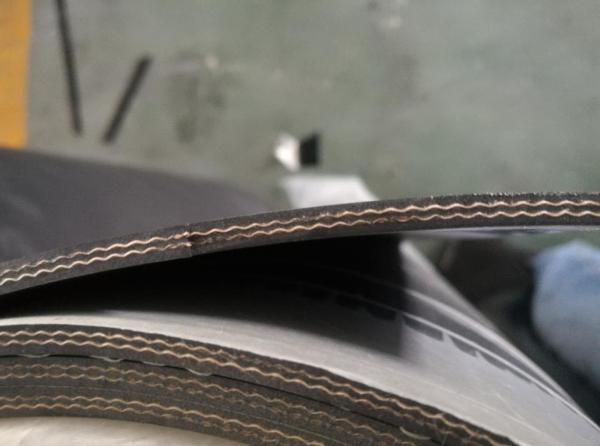

Our premium NBR rubber sheets are manufactured with reinforced fabric insertion (1-2PLY) for enhanced durability in industrial sealing applications. These high-performance sheets are produced on specialized rotocure machines using quality rubber compounds and fabric reinforcements.
Material Composition & Applications
Available in various rubber materials including Hypalon, Neoprene, Nitrile, Silicone, and Fluorubber, each offering distinct properties:
  • Hypalon: Weather and water resistant, ideal for inflatable boats and marine applications
  • Neoprene: Excellent acid and alkaline resistance
  • Nitrile (NBR): Superior oil resistance
  • Silicone & FKM: High heat and corrosion resistance
Technical Specifications
Property Specification
Material Options Hypalon, Neoprene, Nitrile, Silicone, Fluorubber
Fabric Insertion 1-3PLY (Cotton, Polyester, Nylon, Glassfiber, Aramid, EP Fabric)
Available Colors Black, Red, Yellow, Grey, Blue, White
Surface Finish Smooth or Fabric Impression
Tensile Strength 8.0 MPa
Hardness 60-70 Shore A
Elongation 350%
Density 1.4 g/cm³
Thickness Range 0.4-6.0 mm
Width Options 1.0-1.5 m
Length Options 10, 20, 30, 50 m
Standard Sizes
NBR Fabric Standard Sizes:
  • 0.5mm x 1.0m x 10m x 1PLY
  • 0.8mm x 1.0m x 10m x 1PLY
  • 1.0mm x 1.0m x 10m x 1PLY
  • 1.5mm x 1.0m x 10m x 1PLY
  • 2.0mm x 1.0m x 10m x 1PLY
  • 3.0mm x 1.0m x 10m x 2PLY
  • 4.0mm x 1.0m x 10m x 2PLY
  • 5.0mm x 1.0m x 10m x 2PLY
  • 6.0mm x 1.0m x 10m x 2PLY
Hypalon Fabric Standard Sizes:
  • 555dtex-500deniers-710g/sqm, 0.6mm x 1.2m x 50m, hypalon/hypalon
  • 1100dtex-990deniers-1300g/sqm,1.0mm x 1.5m x 50m, hypalon/neoprene, hypalon/hypalon
  • 1670dtex-1500deniers-1500g/sqm, 1.2mm x 1.5m x 50m, hypalon/neoprene, hypalon/hypalon
OEM and customized sizes available upon request. Products are packed in rolls and pallets. When inquiring, please specify rubber type, fabric, color, size, and quantity requirements.
