Specifications
Brand Name :
3A Rubber
Model Number :
GR, GS
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pieces
Price :
FCA Sanhe China USD2.00/piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Supply Ability :
1000000pieces/month
Delivery Time :
7-15days
Packaging Details :
packing in cratons
Flexible or rigid :
Flexible
Material :
TPU
Hardness :
92, 95, 98shore A
Type :
GR, GS
Standard or nonstandard :
Standard
Product name :

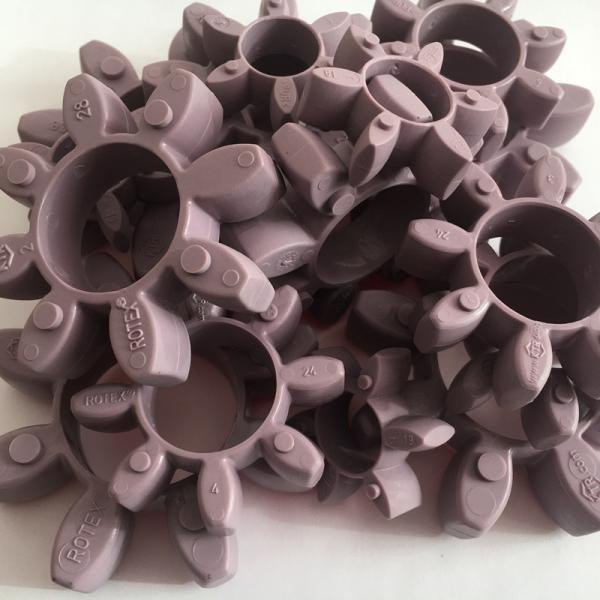

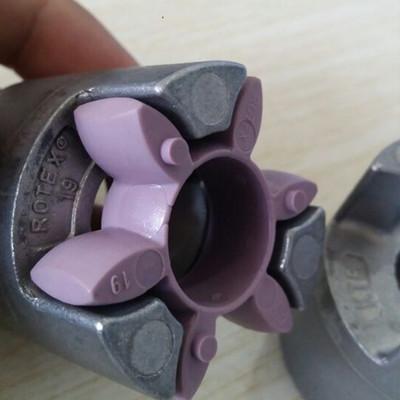

GR90 Spider for TS-B Rotex Jaw Coupling
Color :
Red, Yellow, Green
Size :
Standard sizes
Service :
OEM or ODM
Structure :
Jaw / Spider
Description
Oil Resistant Polyurethane Coupling Gr Gs Type - High Elasticity Good Performance
Polyurethane Coupling, PU Coupling, GR Coupling, GS Coupling
The polyurethane elastomeric is a new polymer synthetic material between rubber and plastic, combining the high strength of plastic with the high elasticity of rubber.
Key Characteristics
  • Wide hardness range (Shore A10-D80) with rubber-like elongation and resilience even at high hardness
  • Exceptional strength - higher tensile strength, tear strength, and load capacity than rubber at similar hardness
  • Superior wear resistance (0.01-0.10cm³/1.61km), 3-5 times better than standard rubber
  • Excellent oil resistance due to low affinity with non-polar mineral oils
  • Good resistance to oxygen, ozone, and radiation (up to 10-10 deg radiation dose)
  • Outstanding vibration absorption for damping and buffering applications
  • Good low temperature performance and machining characteristics
Product Specifications
Material TPU, CSM/SBR, NBR, nylon etc.
Color Yellow, red, purple, green, black, beige etc.
Surface Smooth
Tensile Strength 8-55Mpa
Hardness 70-98Shore A
Elongation 400%-650%
Density 1.25g/cm³
Elasticity Impact >25%
Tear Strength 35-155KN/m
Akron Abrasion Loss <0.05cm³/1.61km
Compression Set (22h*70°C) <10%
Working Temperature 120°C
Standard Sizes
Polyurethane Couplings
  • GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
  • GS5, GS7, GS9, GS12, GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS550, GS65, GS75
  • MT1-MT13
  • ML1-ML13
  • MH45-MH200
  • HRC70-HRC280
  • L35-L276
  • FALK-R 10R-80R
  • SBT T40-T210
  • Joong Ang CR0050-7080
  • MS0511-MS6510
  • D14-D65
  • 5H-11H
Rubber Couplings
  • Hb80-Hb315
  • HRC70-HRC280
  • L35-L225
  • NM50-NM265
  • NOR-MEX168-10 to NOR-MEX265-10
  • FCL1#-FCL8#
  • FCL90-FCL630
  • Gear 3J-14J
  • Hytre 4H-11H
  • Tyre F40-F160
  • SBT T75-T210
  • FCLpin #1-#8
  • GR42-GR75
  • DL1-DL11
Nylon Couplings
  • NL1-NL10
  • M28-M65
Packing: Available in bags, cartons, pallets or crates
Customization: OEM & customized sizes available upon agreement
Special Supply: All kinds of steel couplings for FCL, NM, MH, HRC, Love Joy, Joongang, Centafelx, XL-GR, Tyre
*Please confirm type, size number and quantity when making an enquiry*
