Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
Specifications
Brand Name :
3A Rubber
Model Number :
3A1001
Certification :
ISO9001
Place of Origin :
China
MOQ :
200kgs
Price :
USD3-6.20/kg
Supply Ability :
100000kgs/month
Delivery Time :
7-15days after receive the buyer's payment
Packaging Details :
Packing in rolls and pallets
Payment Terms :
L/C,D/P,T/T,Western Union
Belt Width :
500-1200mm
Material :
Virgin Silicone
Origin :
China
Application :
Gaskets, Seals, Insulation, Cushioning
Quality :
Middle tear resistant
Agingresistance :
Excellent
Hardness :
10-75shore A
Shape :
Rectangle
Tolerance :
±0.1mm
Density :
1.25g/cm3
Operatingtemperature :
-60℃ to +200℃
Oem :
OEM service available
Elongation :
350%
Finish :
Smooth or Textured finish
Tear Strength :
26-42N/mm
Color :
Transparent
Power :
As Per The Buyer's Request
Tensile Strength :
7.5Mpa
Sample :
Available
Surface :
Smooth
Description

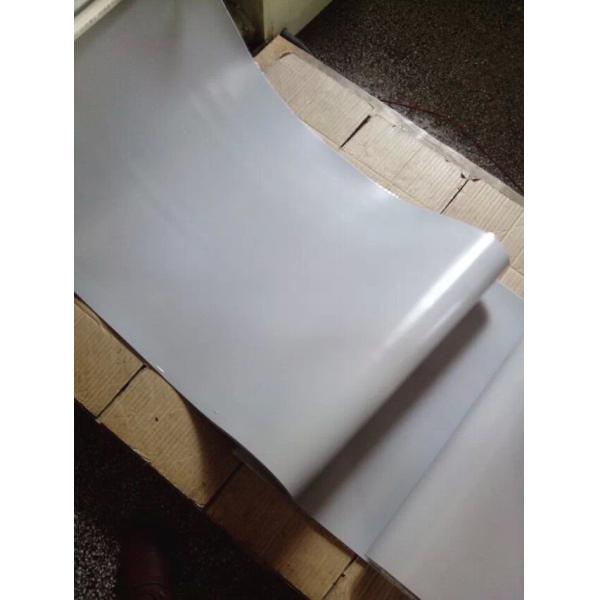

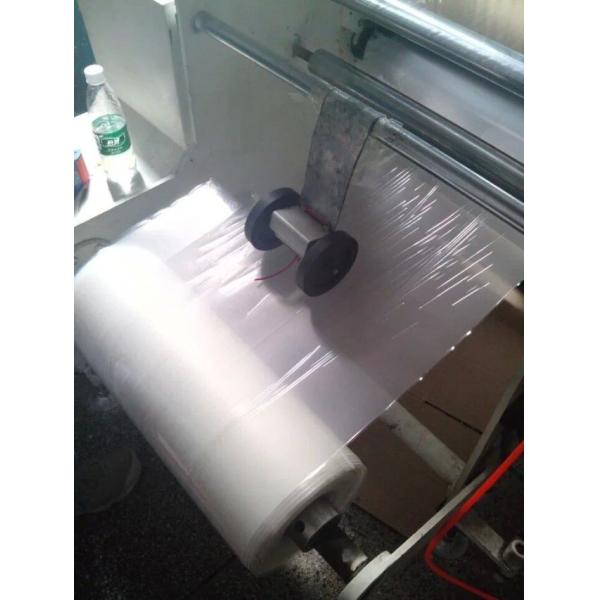

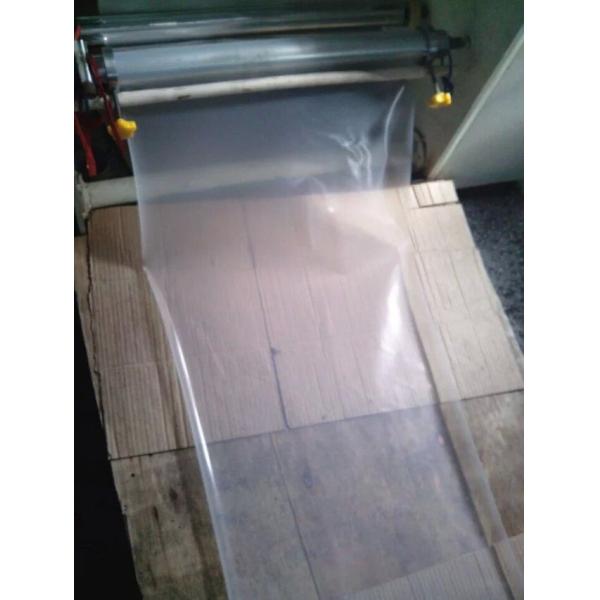

Super Thin Thickness Silicone Rubber Sheet, Silicone Rubber Roll, Silicone Rubber Membrane
0.1-0.8mm x 0.5m x 50m Silicone Sheet, Silicone Roll, Silicone Membrane

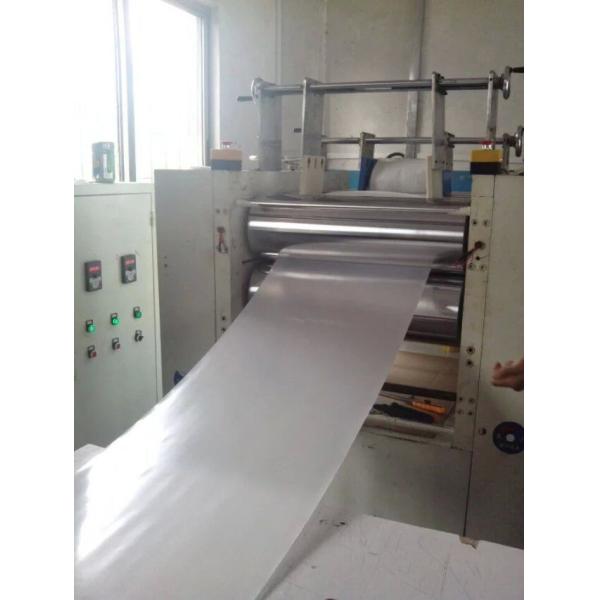

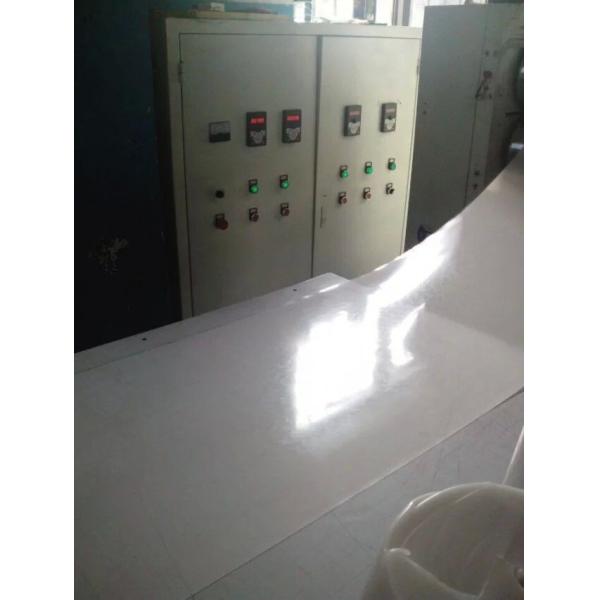

Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized vulcanizing equipment including rotocure vulcanizers and plain press vulcanizers, tailored to meet specific customer requirements.
We utilize advanced management systems, innovative techniques, and strict quality control with premium silicone materials and vulcanizing machinery. Our processes overcome common manufacturing challenges such as surface smoothness issues, thickness tolerances, and joint visibility, delivering seamless products with virtually unlimited length capabilities.
Our high-quality silicone rubber offers excellent performance characteristics including anti-aging properties, ozone resistance, heat resistance, electrical insulation, oil resistance, solvent resistance, corrosion resistance, and is non-toxic, odorless, and pollution-free. Suitable for working in air, water, oil, and other media at temperatures ranging from -60°C to +260°C (momentarily up to 300°C) with high stability, reliability, and non-sticky surface properties.
Product Specifications
Parameter Specifications
Material 100% virgin HTV silicone material
Grade Industrial grade, food grade, medical grade, FDA grade with postcured
Quality High tear resistant, middle tear resistant, general tear resistant
Color Translucent, dark red, black, milk white, grey, blue, etc.
Surface Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
Reinforce Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316
Tensile Strength 7.5-12.0 MPa
Hardness 10, 20, 30, 40, 50, 60, 70, 80 +/-5 shore A
Elongation 350%-720%
Density 1.25-1.50 g/cm³
Tear Strength 26-42 N/mm
Working Temperature -60°C to +260°C (momentarily 300°C)
Thickness 0.1-50 mm
Width 0.1-3.6 m
Length 1-50 m
Standard Sizes
  • 0.1-1.0mm x 0.3-1.0m x 25-50m
  • 0.5-12.0mm x 0.5-1.5m x 10-20m
  • 10.0-50.0mm x 0.5/1.0/1.2/1.5m x 1-20m
  • 1.0-8.0mm x 1.5-3.8m x 10-20m
OEM and customized sizes available upon agreement. Products are packed in rolls, pallets, or crates.
Special Silicone Membrane Applications
  • Grey silicone membrane, 9.8 MPa, 40 shore A, 750%, 42 N/mm - German silicone for "+" and "-" press on wooden PVC vacuum laminator
  • Translucent silicone membrane, 7.5 MPa, 50 shore A, 400%, 26 N/mm - Chinese silicone for "-" press only on wooden PVC vacuum laminator
  • Grey silicone membrane, 12.0 MPa, 60-70 shore A, 350%, 45 N/mm - German silicone for photovoltaic module on solar vacuum laminator
  • Sky blue silicone membrane, 7.5 MPa, 50 shore A, 350%, 26 N/mm - Chinese silicone for safety glass on glass vacuum bag and laminator
  • Dark blue silicone membrane, 8.0 MPa, 57 shore A, 450%, 30 N/mm - Chinese silicone for safety glass on glass vacuum bag and laminator
Special supplies include FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant properties in black color with smooth surface. Also available: black antistatic silicone sheet backing with or without 3M adhesive in thicknesses of 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0 mm.
For more data & information, please contact:
sales@3Arubber.com

When you enquire, please confirm the hardness, color, size and quantity requirements.
