Specifications
Brand Name :
3A Rubber
Model Number :
3A1001
Place of Origin :
China
Certification :
ISO9001
MOQ :
100kgs
Price :
USD3.00-15.80/kg
Packaging Details :
Packing in rolls and pallets
Delivery Time :
7-15days after receive the buyer's payment
Supply Ability :
500000kgs/month
Thickness :
0.2mm-50mm
operatingTemperature :
-60℃ to +200℃
thickness :
0.1mm-50mm
application :
Electrical Insulation, Sealing, etc.
tearStrength :
25N/mm
Specific Gravity :
1.5g/cm3
material :
Silicone Rubber
Flammability :
UL94-V0
agingResistance :
Excellent
length :
1m-20m
Elongation :
300-700%
dielectricStrength :
20kv/mm
hardness :
30-80ShoreA
name :
Silicone Rubber Sheet
elongation :
400%
Ozone Resistance :
Excellent
color :
Black, White, Red, etc.
flameResistance :
UL94V-0
Aging Resistance :
Excellent
tensileStrength :
6.2Mpa
Hardness :
20-80 Shore A
Payment Terms :
T/T,L/C,D/P,Western Union,Paypal
width :
0.5m-2m
Description

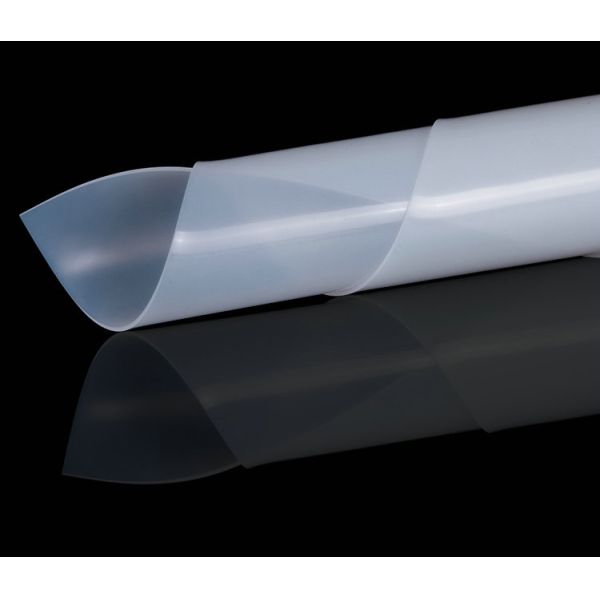

Heat-Resistant Silicone Rubber Sheet for Extreme Temperature Environments
Product Overview

Silicone Rubber Sheet is a versatile rubber sheeting made of silicone, widely used for various purposes. It offers excellent ozone resistance and is available in multiple colors including translucent, white, black, red, and blue. The sheets feature hardness ranging from 20 to 80 Shore A, specific gravity from 1.2 to 1.5g/cm³, and tensile strength of 6 to 12Mpa.

Key Features
  • Product Name: Silicone Rubber Sheet
  • Hardness: 20-80 Shore A
  • Specific Gravity: 1.2-1.5g/cm³
  • Temperature Range: -60°C to +260°C
  • Color: Translucent, White, Black, Red, Blue, Etc.
  • Width: 0.5m-3.6m
  • High Temp Silicone Sheet
  • Silicone Rubber Sheet Roll
Technical Specifications
Name Silicone Sheet
Color Translucent, White, Black, Red, Blue, Etc.
Specific Gravity 1.2-1.5g/cm³
Material Silicone Rubber
Hardness 20-80 Shore A
Ozone Resistance Excellent
Tensile Strength 6-12Mpa
Length 1m-20m
Width 0.5m-3.6m
Elongation 300-700%
Applications

Silicone rubber sheet is a popular and versatile material used across multiple industries including automotive, aerospace, medical, electrical, and industrial applications. It provides excellent insulation, heat resistance, chemical resistance, electrical insulation, flexibility, fire resistance, temperature resistance, and dimensional stability. The material is lightweight, durable, and highly resistant to tearing.

Customization Options
  • Brand Name: 3A Rubber
  • Model Number: 3A1001
  • Place of Origin: China
  • Certification: ISO9001
  • Minimum Order Quantity: 100kgs
  • Price: USD3.00-15.80/kg
  • Thickness: 0.2mm-50mm
  • Temperature Range: -60°C to +260°C
  • Tensile Strength: 6-12Mpa
  • Specific Gravity: 1.2-1.5g/cm³
  • Width: 0.5m-3.6m
Packaging & Shipping

Silicone rubber sheets are typically packaged in rolls wrapped in protective plastic film, or in boxes/pallets depending on size and quantity. Shipping options include air freight for faster delivery or ocean freight for cost-effective transportation with longer transit times.

Support & Services

We provide comprehensive technical support including product selection, installation guidance, and maintenance advice. Our experienced staff offers assistance with material properties, fabrication methods, and optimization techniques. After-sales service and troubleshooting assistance ensure optimal product performance.

Frequently Asked Questions
Q: What is the brand name of the Silicone Rubber Sheet?
A: The brand name of the Silicone Rubber Sheet is 3A Rubber.
Q: What is the model number of the Silicone Rubber Sheet?
A: The model number of the Silicone Rubber Sheet is 3A1001.
Q: Where is the Silicone Rubber Sheet from?
A: The Silicone Rubber Sheet is from China.
Q: Is the Silicone Rubber Sheet certified?
A: Yes, the Silicone Rubber Sheet is certified with ISO9001.
Q: What is the minimum order quantity of the Silicone Rubber Sheet?
A: The minimum order quantity of the Silicone Rubber Sheet is 100kgs.
