Double Impression Fabric Industrial Rubber Sheet with 15-24Mpa Tensile Strength and Food Grade Quality
Double Impression Fabric Industrial Rubber Sheet with 15-24Mpa Tensile Strength and Food Grade Quality
Double Impression Fabric Industrial Rubber Sheet with 15-24Mpa Tensile Strength and Food Grade Quality
Double Impression Fabric Industrial Rubber Sheet with 15-24Mpa Tensile Strength and Food Grade Quality
Double Impression Fabric Industrial Rubber Sheet with 15-24Mpa Tensile Strength and Food Grade Quality
Double Impression Fabric Industrial Rubber Sheet with 15-24Mpa Tensile Strength and Food Grade Quality
Specifications
Tensile Strength :
15-24Mpa
Quality :
Industrial grade,food grade
Elongation :
500%-740%
Hardness :
35-60 shore A
Density :
0.96-1.25g/cm³
Material :
100%Virgin Natural Rubber
Color :
black,red,white,brown,beige,green etc
Surface :
smooth or impression fabric
Brand Name :
3Arubber
Model Number :
3A5001
Certification :
RoHS/FCC/SGS
Place of Origin :
China
MOQ :
200kgs
Price :
negotation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100000kgs per month
Delivery Time :
10-20working days after recieved your payment
Packaging Details :
packed in cartons
Description

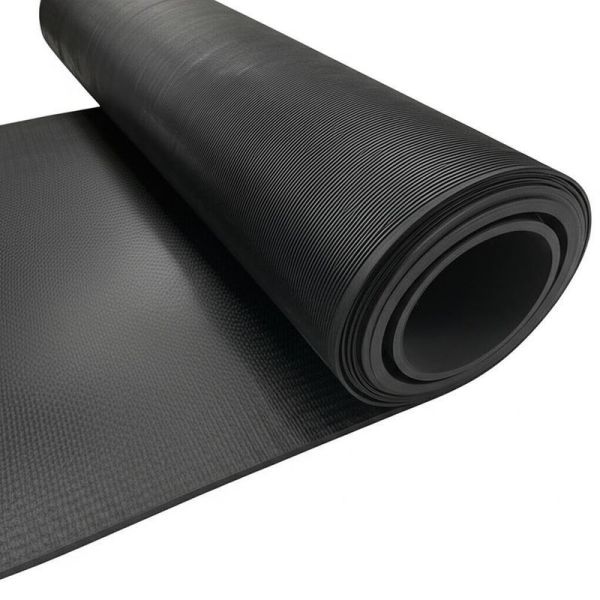

Double Impression Fabric Industrial Rubber Sheet

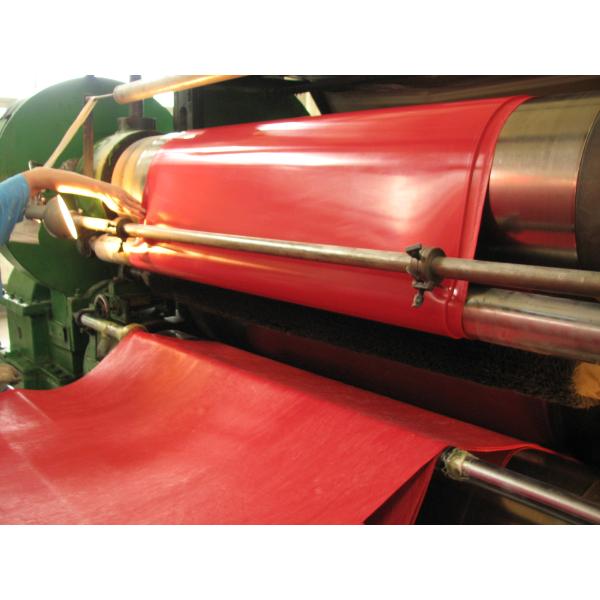

High-quality industrial rubber sheets manufactured using premium natural rubber (NR) through ROTOCURE vulcanizing press or plain vulcanizing press processes. These sheets offer excellent mechanical properties including high tensile strength, superior elongation, and outstanding abrasion resistance.
Product Features
  • Made from 100% virgin natural rubber from rubber trees
  • Medium hardness with high tensile strength and elongation
  • Excellent abrasion resistance and elasticity
  • Safety certified and non-toxic without odor
  • Food grade quality available
  • Suitable for temperatures from -35°C to +85°C
  • Available with fabric reinforcement (1-3 PLY)
Technical Specifications
Material 100% virgin natural rubber, pure natural rubber
Quality Food grade
Color Red, black, white, brown, beige, green, etc.
Surface Smooth/smooth, smooth/impression fabric, double impression fabric
Tensile Strength 15-24 Mpa
Hardness 35, 40, 50, 60 ±5 shore A
Elongation 740%
Density 0.96-1.25 g/cm³
Working Temperature -35°C to +85°C
Thickness 1.0-80.0 mm
Width 0.1-3.6 m
Length 1.0-20 m
Natural Rubber Lining Sheet Specifications
Top Layer Cured natural rubber (red or black)
Bottom Layer Uncured neoprene rubber (light yellow)
Quality Industrial grade, food grade
Surface Smooth/smooth
Tensile Strength 13-18 Mpa
Hardness 35, 40, 65 ±5 shore A
Elongation 400%-650%
Density 1.05-1.15 g/cm³
Working Temperature -35°C to +85°C
Thickness 1.0-25.4 mm
Width 1-1.5 m
Length 10-20 m
Applications
Ideal for manufacturing seals, gaskets, linings, and specialized components. Commonly used in truck lining, drinking water lining, and as rubber membranes for PVC vacuum laminating presses.
Important: When requesting a quote, please specify tensile strength, hardness, color, dimensions, and quantity requirements.
