Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Food Grade Silicone Rubber Sheet with Electric Insulation and Corrosion Resistance for Industrial Applications
Specifications
Brand Name :
3Arubber
Model Number :
3A1002
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
100kgs
Price :
USD3-15.00/kg
Payment Terms :
T/T,L/C,Paypal,Western Union,D/P
Supply Ability :
100000kgs per month
Delivery Time :
10-20 working day after recieveed your payment
Packaging Details :
packed in rolls and pallets
Surface :
Impression Fabric or Smooth
Reinforce :
insert 1 ply fabric
Tensible Strengh :
7-12Mpa
Hardness :
40,50,60,70,80+/-5shore a
Elongation :
300-600%
Density :
.25+/-0.05g/cm3 (1.5g/cm3 for Fire-Resis
Thickness :
0.1-50mm
Width :
0.1-3.6m
Length :
1-100m
Gasket :
As per the buyer's drawing
Tensilestrength :
12Mpa
Logo :
Custom Logo
Temperature Range :
-60°C to 230°C
Chemical Resistance :
Excellent
Aging Resistance :
Excellent
Others :
As Per Buyer's Drawing
Weather Resistance :
Excellent
Surface Treatment :
Smooth, Embossed, etc.
Pattern :
One or two side smooth,one cloth grain
Fda Compliant :
Yes
Quality :
Food Grade
Commodity :
silicone sheet
Description
Silicone Rubber Sheet Without Smell for Electric Insulation and Corrosion Resistance
Premium silicone rubber sheets manufactured using 100% food-grade silicone material, available in various colors and lengths from 1-100 meters. These odorless sheets are engineered for superior performance in demanding industrial applications.
Manufacturing Excellence

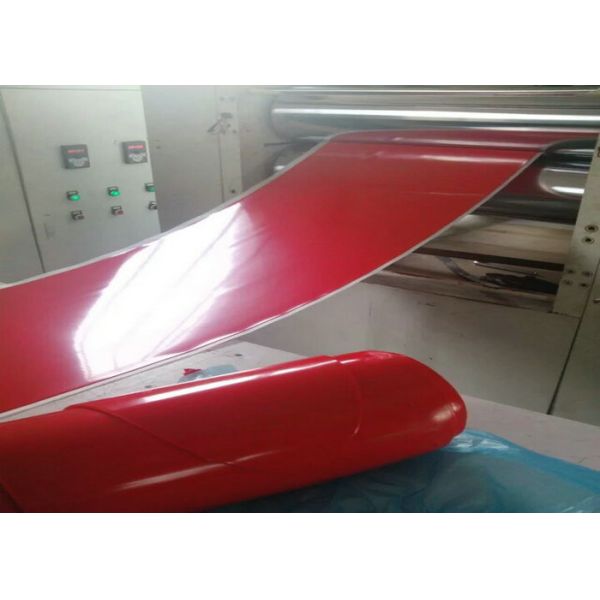

Produced using advanced drum-type vulcanizing press technology, our silicone rubber sheets eliminate common manufacturing issues such as visible joints, restricted dimensions, and surface imperfections. Our super-wide 4000mm vulcanizing press enables production of seamless sheets up to 3600mm wide.
Key Performance Characteristics
  • Excellent anti-aging and ozone resistance properties
  • Superior heat resistance from -60°C to +260°C (momentary maximum 300°C)
  • High-performance electric insulation capabilities
  • Outstanding oil, solvent, and corrosion resistance
  • Non-toxic, tasteless, and pollution-free composition
  • Stable, reliable performance with non-sticky surface
Application Areas
Ideal for manufacturing rubber seal gaskets and specialized applications including PVC vacuum laminating presses, wooden door vacuum laminating presses, glass vacuum laminating presses, solar vacuum laminating presses, hot laminating presses, and card laminating presses.
Technical Specifications
Material 100% virgin HTV silicone rubber or liquid silicone
Grade Industrial grade, food grade, medical grade, FDA grade postcured
Quality High tear resistant, middle tear resistant
Color Transparent, translucent, dark red, black, milk white, grey, blue, etc.
Surface Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
Reinforce Insert 1 PLY fabric
Tensile Strength 7-12 Mpa
Hardness 10, 20, 30, 40, 50, 60, 70, 80 +/-5 shore A
Elongation 350%-720%
Density 1.25-1.50 g/cm³
Tear Strength 26-42 N/mm
Working Temperature -60°C to +260°C (momentary 300°C)
Thickness 0.1-50 mm
Width 0.1-3.6 m
Length 1-50 m
Standard Sizes
Transparent, 8 shore A: 1.2mm, 1.7mm, 2.2mm, 2.5mm, 3.0mm x 330mm x 330mm
Translucent, 10 shore A: 3.0mm x 330mm x 330mm
Translucent, 45-75 shore A: Various dimensions from 0.1-30.0mm thickness, 0.5-3.8m width, and 10-200m length
Custom OEM sizes available upon agreement
Press Compatibility
German silicone compatible with "+" and "-" press on wooden PVC vacuum laminators
Chinese silicone compatible with "-" press only on wooden PVC vacuum laminators
Specialized Products
FDA grade silicone rubber sheets with postcure treatment and antistatic silicone sheets with fire-resistant properties, available in black color with smooth surface.
When requesting a quotation, please specify your application requirements, preferred color, hardness specifications, dimensions, and required quantity.
