0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
Specifications
Brand Name :
3Arubber
Model Number :
3A3007
Certification :
RoHS/FCC/SGS
Place of Origin :
China
MOQ :
10rolls
Price :
negotation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
10000kgs per month
Delivery Time :
10 working days after recieved your payment
Packaging Details :
packed in cartons
Material :
60%PTFE+40%bronze
Color :
brown,green
Working temperature :
-60℃-+260℃
Working Speed :
15m/s
Working pressure :
15Mpa@25°C, 12Mpa@80°C, 8Mpa@120°C
Tensile Strength :
14-16Mpa
Density :
2.7-3.3g/cm³
Elongation :
170%
Description

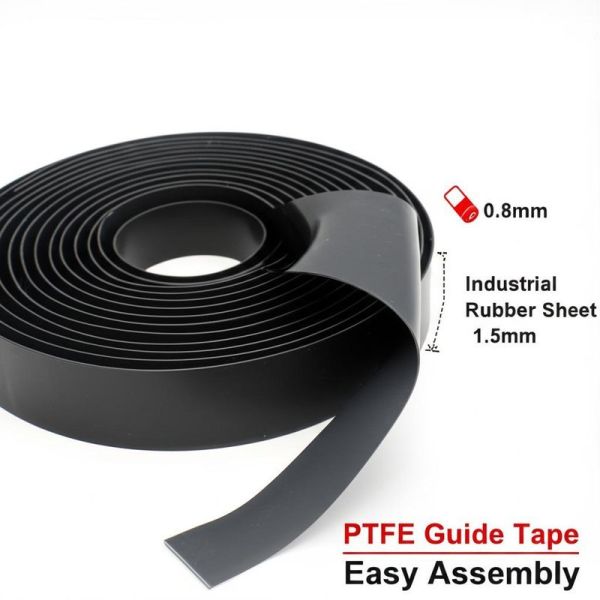

PTFE Guide Tape - Industrial Rubber Sheet with Easy Assembly
PTFE Guide Stripe Tape (GST) is a high-performance nano-polymer composite material designed for precision machine tools requiring exceptional accuracy. Available in thicknesses of 0.8mm, 1.0mm, and 1.5mm, this advanced guide tape delivers superior friction and wear properties for CNC equipment and high-end processing centers.
Product Overview
Our PTFE guide stripe tape contains rich solid lubricant particles that provide excellent friction and wearing characteristics. Through advanced nano super-fine formulation, uniform material density, and exceptional wear resistance, these soft bands are ideal for various industrial applications including common machine tools, textiles, printing, paper manufacturing, food processing, chemical engineering, woodworking, and maintenance of mechanical sliding guides.
Technical Specifications
Material Composition 60% PTFE + 40% Bronze
Pressure Rating 15Mpa @ 25°C, 12Mpa @ 80°C, 8Mpa @ 120°C
Temperature Range -60°C to +260°C
Maximum Speed 15m/s
Wear Resistance Approximately 10 times greater than cast iron guide, ensuring excellent accuracy maintenance
Friction Coefficient <0.04 (only 1/3 of cast iron guide), significantly reducing driving energy consumption
Key Features & Benefits
  • Exceptional wear resistance for long-lasting performance
  • No creeping - ensures steady, consistent movement
  • Superior shock-absorbing ability improves processing accuracy
  • Low friction coefficient reduces energy consumption
  • Excellent lubrication suitable for dry use (depending on load)
  • Outstanding temperature resistance across wide range
  • Compatible with most industrial fluids
  • Easy assembly and installation process
  • Simplified maintenance - lower hardness than metal means friction primarily affects the bands, allowing for easy replacement while protecting machine tool body from damage
Available Dimensions
Thickness Options

0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0mm

Width Options

3.2, 4.2, 5.0, 5.6, 6.0, 6.3, 8.0, 8.1, 9.7, 10, 12, 12.7, 13, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 120, 150, 200, 300mm

Length

10-20 meters (Custom OEM sizes available upon agreement)

Special Options

Phenolic guide tape reinforced fabric available in red and green colors

Important: When requesting a quotation, please specify the required material, color, size, and quantity for accurate pricing and availability.
