Landing Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling
Landing Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling
Landing Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling
Landing Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling
Specifications
Brand Name :
junlin
Model Number :
XPG
Certification :
Quality Management System Certification(ISO 9001); Specialized SME; High-Tech Enterprise Certificate , etc.
Place of Origin :
Qingdao , Shandong , China
MOQ :
1set
Price :
USD5,500-15,500/Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 sets/year
Delivery Time :
30-90 days
Packaging Details :
wooden case
Suitable Sheet Size :
600~900mm
Power Supply :
380/50
Compressed Air Pressure :
0.4~0.8 Mpa
Conveying Max Speed :
35 m/min
Rod Chain Speed :
0.117~0.75 m/min
Max Pendent Length :
1400~1700 mm
Sheer Temperature :
Ambient temperature+5℃
Swing Sheet Length :
1.3 m
Description

Landing Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling



Products Parameters


Applicable piece specification(T*W)(mm) (4-12)*600-900
Power supply(V/Hz) 380/50
Compressed air pressure(Mpa) 0.4~0.8
Piece-joining conveying max speed(m/min) 35(customized)
Piece rod chain speed(m/min) 0.117~0.75
Max pendent length of hanging sheet(mm) 1400~1700
Sheer temperature(for reference) Ambient temperature+5℃
Swing sheet length(m) 1.3(adjustable)
Swing sheet frequency(m/min) 13(adjustable)




Application scenario


The product is used for rubber mixing and cooling the rubber sheets after extrusion by extruder. It is commonly applied to continuous production lines such as tires , conveyor belts , seals , hoses , rubber-plastic products , cables and rubber mixing workshops in rubber products industries such as foaming. It is used for rapid cooling of the rubber sheets after mixing.


Product Function


It is used for mixing in internal mixer , plasticizing the rubber sheets after being pressed by open mill or twin-screw extrusion , cooling , lamination and rubber sheets collection.


Product Features


• The product can be customized

• Intelligent control system , mostly using PLC control

• Frequency converter speed regulation

• High efficiently cooling

Our Service

➤ Precision-Centric Solutions
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.

➤ Reliable Manufacturing Excellence
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.

➤ Industry-Specific Expertise
Serving key sectors:
· Tire Manufacturing
· Rubber & Plastics Processing
· Thermal Insulation Materials
· Sealing Products
· Industrial Rubber Applications
Dedicated to sustainable development initiatives including waste tire recycling.

➤ Comprehensive After-Sales Support
▌ 24/7 Technical Assistance
Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance.
▌ Customized Engineering Solutions
Tailored process optimization and lifecycle management guidance for rubber compounding operations.
▌ Genuine Parts Supply
Original components provided (transportation costs borne by customer).
▌ Quality Warranty Commitment
Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement).

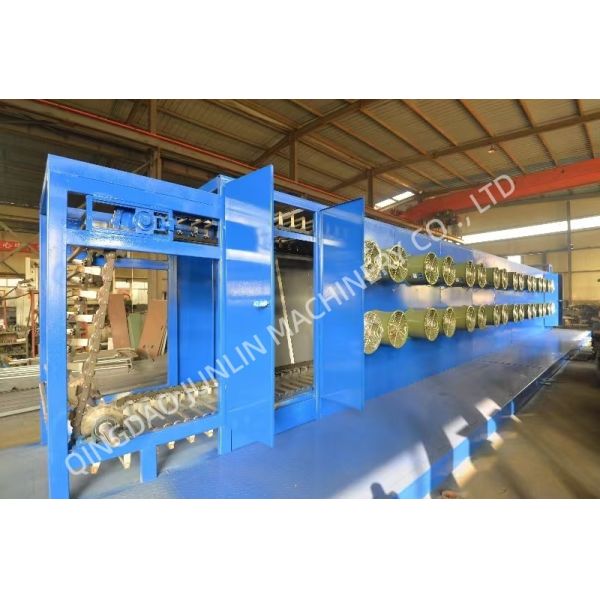

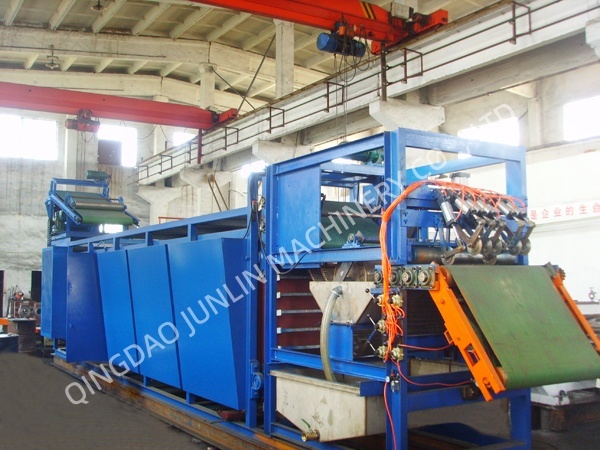

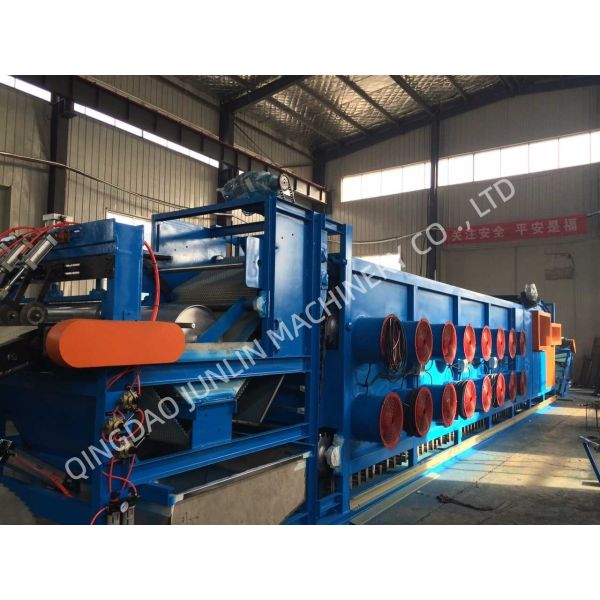

Product Images


Landing Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling

Landing Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling

Landing Hanging Rods Type Batch Off Cooler For Rubber Sheet Cooling




(Our products and parameters are constantly being improved and optimized. please contact us to obtain the latest materials.)
