Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Specifications
Brand Name :
junlin
Model Number :
XK-300/360/400
Certification :
Quality Management System Certification(ISO 9001); Specialized SME; High-Tech Enterprise Certificate,etc.
Place of Origin :
Qingdao, Shandong, China
MOQ :
1
Price :
USD11,000–25,000/Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500/year
Delivery Time :
30–90 days
Packaging Details :
wooden case
Type :
Open mixing mill
Layout Type :
Horizontal
Bush :
nylon bush,bearing bush,ball bearing b,cooper bush
Warranty :
1 year
Heating method :
Electrical heating
Safety device :
Collision type emergency stop,Hydraulic brake
Description
Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate
Product Overview

Open Type Two Roll Rubber Mixing Mill Machine with CE Certificate is designed for efficient rubber processing operations with certified safety standards.

Technical Specifications
Model XK-160 XK-230 XK-250 XK-360 XK-400
Working diameter of rollers (mm) Φ160 Φ230 Φ250 Φ360 Φ400
Working length of rollers (mm) 320 600 620 900 1000
Liner speed of front rollers 8.03 10.94 14.1 16.25 18.65
Speed ratio of front and rear roller 1:1.35 1:1.19 1:1.17 1:1.25 1:1.27
Capacity per batch (kg) 1～2 6～10 10～15 20～25 18～35
Motor power (kw) 7.5 15 18.5 30 37
Overall size L×W×H (mm) 1380×860×1320 2800×1200×1120 3000×1500×1500 3850×1650×1750 4250×1850×1870
Weight (kg) 1000 2300 3000 6500 7000
Model XK-450 XK-550/560 XK-610 XK-660 XK-710 XK-810
Working diameter of rollers (mm) Φ450 Φ560/Φ510 Φ610 Φ660 Φ710 Φ810
Working length of rollers (mm) 1200 1530/1830 1830~2000 2130 2200 2540
Liner speed of front rollers 24.5 27.87 30 28.6 31.9 21
Speed ratio of front and rear roller 1:1.27 1:1.2 1:1.29 1:1.24 1:1.15 1:1.27
Capacity per batch (kg) 25～50 50～100 90～120 130～165 150～200 180～250
Motor power (kw) 55 90/110 160/185 185/250 285 2x250
Overall size L×W×H (mm) 5200×1800×2000 6500×2300×2000 7500×2500×2640 7600×3400×2500 8246×3556×2270 9736×5160×2070
Weight (kg) 10000 20000 28000 47000 51000 74500
Nylon bush use grease for lubricating, Copper bush and bearing use grease or oil
Applications

An open rubber mixing mill is a mechanical device used for rubber hot mixing, compounding, plasticizing, and sheeting. It is widely employed in the rubber industry and is suitable for the production processes of rubber products, conveyor belts, and other rubber industrial products.

Product Function

Used for the plasticizing and mixing of raw materials such as rubber and plastics, as well as the hot refining and sheeting of rubber compounds.

Product Features
  • Customizable configurations available
  • Enhanced safety equipment design
  • Automated process replacing manual labor
  • Reduced intensity of manual operations
Our Service
  • Precision-Centric Solutions: Systematic customized solutions tailored to specific process requirements
  • Reliable Manufacturing Excellence: Robust production capabilities providing stable, high-quality machinery
  • Industry-Specific Expertise: Serving tire manufacturing, rubber & plastics processing, thermal insulation materials, sealing products, and industrial rubber applications
  • Comprehensive After-Sales Support:
    • 24/7 Technical Assistance with remote support and rapid fault diagnosis
    • Customized Engineering Solutions and lifecycle management guidance
    • Genuine Parts Supply (transportation costs borne by customer)
    • Quality Warranty Commitment with free replacement for verified product defects

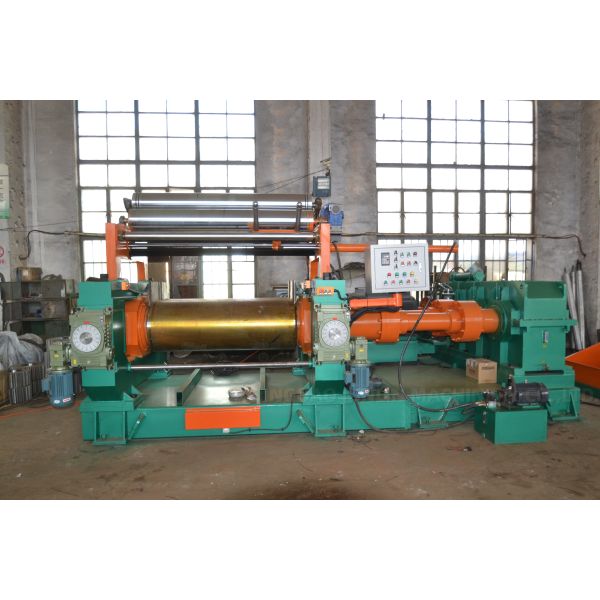

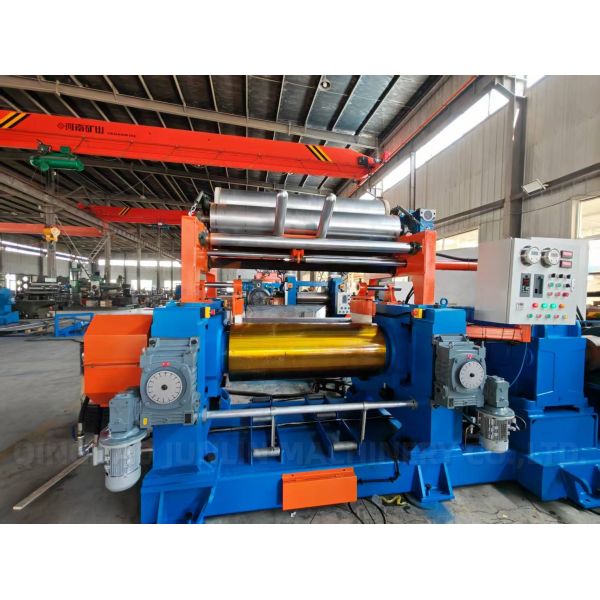

Product Image

Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate

Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate

Open Type Two Roll Rubber Mixing Mill Machine With CE Certificate

Our products and parameters are constantly being improved and optimized. Please contact us to obtain the latest materials.
