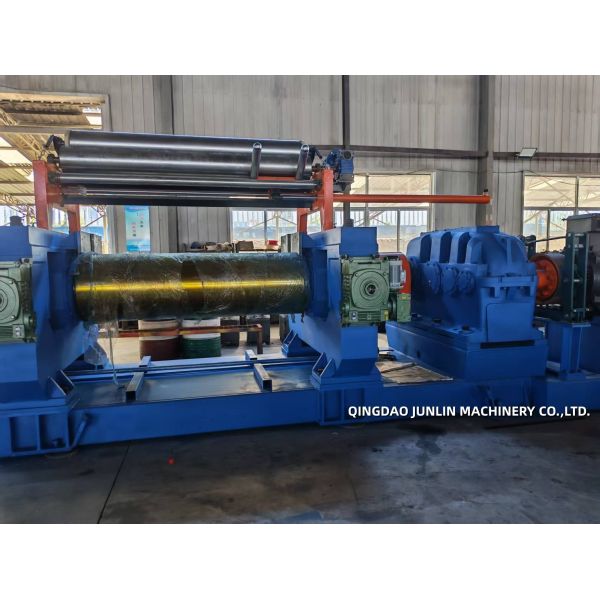

Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Specifications
Brand Name :
junlin
Model Number :
XK-610
Certification :
Quality Management System Certification(ISO 9001); Specialized SME; High-Tech Enterprise Certificate,etc.
Place of Origin :
Qingdao, Shandong, China
MOQ :
1 set
Price :
USD 75,000–96,000/Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500 sets/year
Delivery Time :
30–90 days
Packaging Details :
wooden case
Type :
Open Mixing Mill
Warranty :
1 Year
Material Of Rolls :
Chilled Cast Iron
Cooling System :
Water Cooling
Application :
Rubber Mixing
Roll Speed Ratio :
Adjustable
Description
Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
The XK-610 24 Inch Two Roll Rubber Mixing Mill Machine is designed for efficient rubber processing operations, offering superior performance and durability for industrial applications.
Product Specifications
Model XK-160 XK-230 XK-250 XK-360 XK-400
Working diameter of rollers(mm) Φ160 Φ230 Φ250 Φ360 Φ400
Working length of rollers(mm) 320 600 620 900 1000
Liner speed of front rollers 8.03 10.94 14.1 16.25 18.65
Speed ratio of front and rear roller 1:1.35 1:1.19 1:1.17 1:1.25 1:1.27
Capacity per batch(kg) 1～2 6～10 10～15 20～25 18～35
Motor power(kw) 7.5 15 18.5 30 37
Overall size L×W×H(mm) 1380×860×1320 2800×1200×1120 3000×1500×1500 3850×1650×1750 4250×1850×1870
Weight(kg) 1000 2300 3000 6500 7000
Model XK-450 XK-550/560 XK-610 XK-660 XK-710 XK-810
Working diameter of rollers(mm) Φ450 Φ560/Φ510 Φ610 Φ660 Φ710 Φ810
Working length of rollers(mm) 1200 1530/1830 1830~2000 2130 2200 2540
Liner speed of front rollers 24.5 27.87 30 28.6 31.9 21
Speed ratio of front and rear roller 1:1.27 1:1.2 1:1.29 1:1.24 1:1.15 1:1.27
Capacity per batch(kg) 25～50 50～100 90～120 130～165 150～200 180～250
Motor power(kw) 55 90/110 160/185 185/250 285 2x250
Overall size L×W×H(mm) 5200×1800×2000 6500×2300×2000 7500×2500×2640 7600×3400×2500 8246×3556×2270 9736×5160×2070
Weight(kg) 10000 20000 28000 47000 51000 74500
Note: Nylon bush uses grease for lubricating, Copper bush and bearing use grease or oil
Applications
This machine serves as essential rubber processing equipment for:
  • Tire plants
  • Transmission belt factories
  • Conveyor belt manufacturers
  • Rubber product facilities
  • Footwear factories
  • Cable plants
  • Hose producers
  • Sealing component manufacturers
It performs thermal refining, mixing, mastication, and sheeting of rubber compounds.
Product Function
Designed for heat conditioning, compounding, gel breaking, plasticizing and mixing of rubber materials.
Product Features
  • Customizable configurations available
  • High hardness and exceptional wear resistance
  • Integrated roller temperature regulating device
  • Steam or cooling water can be introduced into the roller cylinder for precise temperature control
  • Engineered to meet diverse process requirements
Our Services
  • Precision-Centric Solutions
    Systematic customized solutions tailored to specific process requirements with seamless integration
  • Reliable Manufacturing Excellence
    Robust production capabilities delivering stable, high-quality machinery with durable performance
  • Industry-Specific Expertise
    Specialized solutions for:
    • Tire Manufacturing
    • Rubber & Plastics Processing
    • Thermal Insulation Materials
    • Sealing Products
    • Industrial Rubber Applications
    • Waste tire recycling initiatives
  • Comprehensive After-Sales Support
    • 24/7 Technical Assistance with remote support and rapid fault diagnosis
    • Customized Engineering Solutions for process optimization
    • Genuine Parts Supply (customer responsible for transportation costs)
    • Quality Warranty Commitment with free replacement for verified product defects
Product Images
Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Customizable Two Roll Silicone Open Rubber Mill Mixing Machine XK-610
Our products and specifications are continuously improved and optimized. For the latest information, please contact our technical team.
