Specifications
Certification :
ISO9001
Place of Origin :
Baoji，China
Brand Name :
HT SENSOR
MOQ :
1
Price :
Negotiable
Packaging Details :
Standard Export Package
Delivery Time :
5-8 work days
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Model Number :
HT100
Model NO. :
HT100
Wiring Type :
Four-Wire
Measuring Medium :
Gas and Air
cloure :
black
acc :
0.2%FS
OUTPUT :
MV signal
SUPPLY :
1.5mA
Trademark :
HengTong
HS Code :
9026209090
Type :
Piezoresistive Pressure Sensor
Output Signal Type :
Analog Type
Material :
Stainless Steel
Description

Product Description

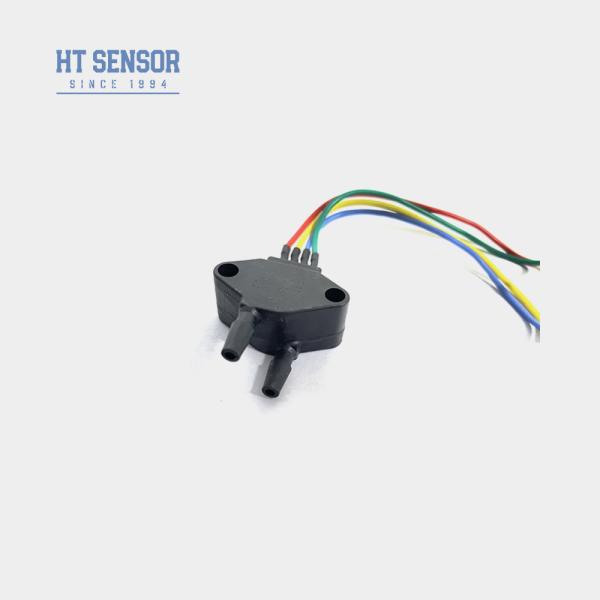

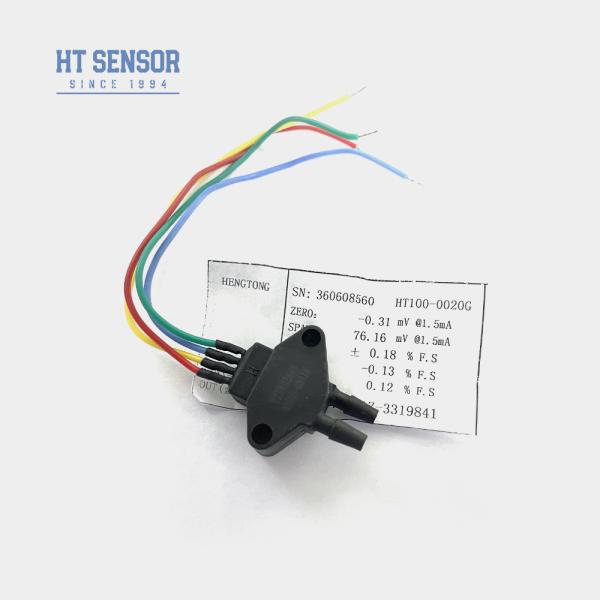

1.5mA Powered Plastic Differential Pressure Sensor Differential Level Sensor
HT100 Silicon Piezoresistive Pressure Sensor

Introduction:

The HT100 is a high-performance pressure sensing device based on advanced diffused silicon technology, featuring a robust plastic encapsulation design. This sensor delivers outstanding measurement accuracy and long-term stability, specifically engineered for precise monitoring of dry, non-corrosive gases.
Product Features:
  1. Wide measurement range, 0~10KPa~2Mpa
  2. High reliability and excellent stability
  3. TO8 encapsulation technology
  4. Aerospace applications
1.5mA Powered Plastic Differential Pressure Sensor Differential Level Sensor

Applications:
  1. Measurement of dry, non-corrosive gas pressures
  2. Pneumatic control systems
  3. Biomedical engineering for medical applications
  4. HVAC (Heating, Ventilation, and Air Conditioning) contro
  5. Aerospace testing for aviation-related purposes
Electrical performance:
  1. Power Supply: ≤2mA DC (Typical 1.5mA DC)
  2. Input Impedance:3KΩ~6KΩ
  3. Output Impedance:2.5KΩ~6KΩ
  4. Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires
Performance Parameters:
Measurement Range Gauge(G) 10KPa,20KPa
Typ Max Unit
Linearity ±0.15 ±0.3 %F.S
Repeatability 0.05 0.1 %F.S
Hysteresis 0.05 0.1 %F.S
Zero Offset Output 0±1 0±2 mV
Full Scale Output ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature -20~80 ºC
Storage Temperature -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 4MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 % F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
Weight ~12.5g
The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C
1.5mA Powered Plastic Differential Pressure Sensor Differential Level Sensor

Ordering tips
  • 1.When in use, pay attention to the sealing issue at the connection of the faucet joint.
  • 2. The medium to be tested is a dry and non-corrosive gas and must not be used to test liquids.
  • 3. If there are any changes to the pins, please refer to the labels on the actual core wires.
Q&A
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
