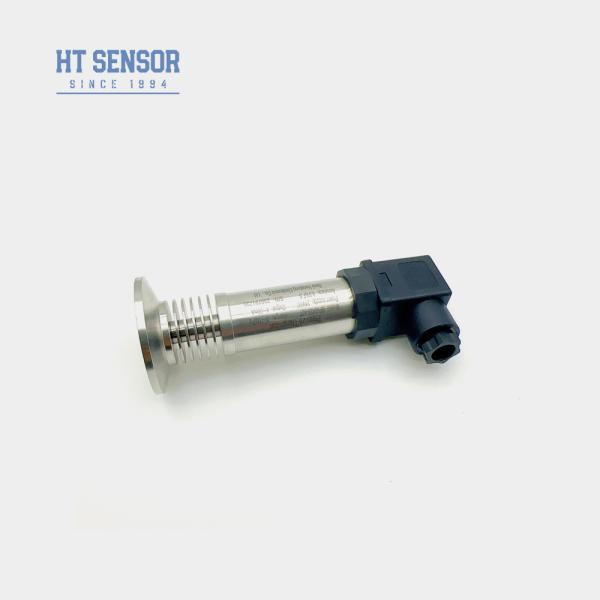

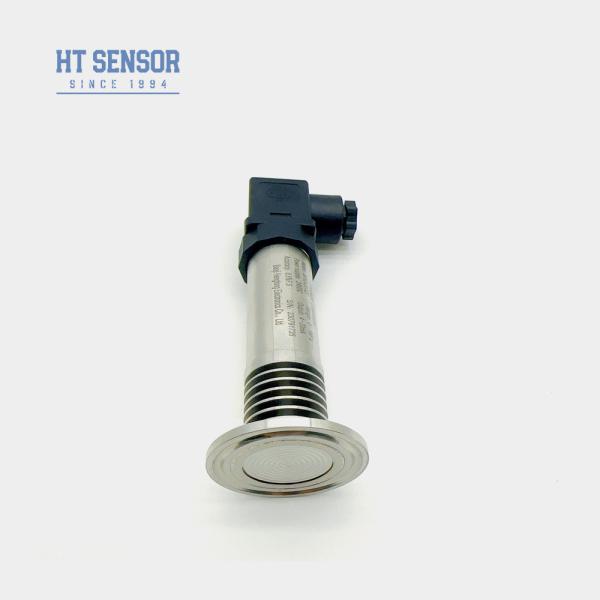

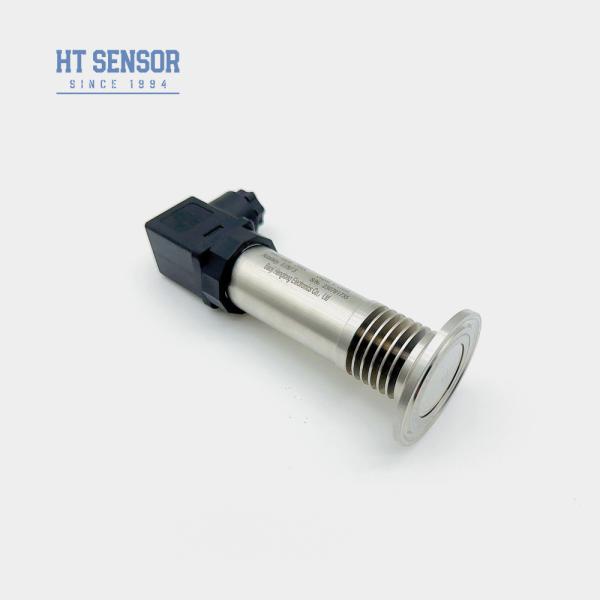

Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor
Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor
Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor
Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor
Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor
Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor
Specifications
Certification :
ISO9001
Place of Origin :
Baoji，China
Brand Name :
HT SENSOR
MOQ :
1
Price :
Negotiable
Packaging Details :
Standard Export Package
Delivery Time :
5-8 work days
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Model Number :
BP93420-IQT
Model NO. :
BP93420-IQT
Protection Rating :
IP65
Housing Material :
SS304
Pressure Type :
Gauge Pressure, Absolute Pressure, Sealed Pressure
Specification :
Silicon pressure sensor
Trademark :
HTsensor
Origin :
Baoji, China
HS Code :
9026201090
Structure Type :
Diffused Silicon Pressure Transmitter
Measuring Medium :
Liquid
Accuracy Grade :
0.5%
Pressure range :
-100kpa...0kpa ~35kpa...3.5MPa
Customization :
Available OEM and ODM
Model :
BP93420-IQT
Description

Product Description

Product Description


BP93420-IQT Pressure Transmitter

Introduction:
BP93420-IQT pressure transmitter utilizes the HT series silicon pressure-resistance isolation oil-filled core as the signal measuring element. It features a full metal flush diaphragm and direct welding with the process connection, ensuring precise connections between the process connection and the measuring diaphragm. The entire product has undergone rigorous testing ensuring stable and reliable performance and effectively preventing the problem of pressure hole blockage caused by crystallizing media.
Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor
Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor
Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor




Product Features:
1. Wide measurement range,Various pressure interface options
2. Diverse output signal options
3. Adjustable zero and full-scale
4. High accuracy,multiple sterile process connections


Applications:
1. Suitable for measuring non-corrosive gases and liquids with 316L
2. Medical, biopharmaceutical, and food hygiene industries for sterile processing
3. Used in the paper and chemical industries, as well as for sewage level and beverage can pressure measurements Suitable for hydraulic and pneumatic control systems

Performance Parameters
Measurement Range -100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ≤0.1%FS
Hysteresis ≤0.1%FS
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.3kg
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire


Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor

Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor


Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor




Hengtong Clamp Type OEM Pressure Transmitter With High Temperature Resistance Pressure Sensor

Ordering tips
  • Material Compatibility
  • Verify that the measured medium is chemically compatible with the product's wetted materials before selection.
  • Explosion-Proof Models Note
  • Standard explosion-proof configurations exclude digital display heads by default.
  • Display Head Power Requirement
  • For transmitters equipped with LCD/LED displays, maintain a minimum 20VDC power supply to ensure proper functionality.
  • Installation Best Practices
  • To guarantee operational reliability:
  • Install lightning arresters at the measurement site
  • Implement secure grounding for both the transmitter and power supply
  • Cable Specifications
  • Default configuration: no polyethylene cable.
  • Alternative materials available (PTFE/PVC) - must be specified during ordering.
  • Special Condition Requirements
  • Notify our technical team and clearly indicate in your order if the application involves:
  • High-vibration environments
  • Transient pressure shocks
  • Significant EMI/RFI interference
  • For optimal performance, please provide complete application details with your order specifications.
Order Guide
BP93420XX Pressure Transmitter
Code Outline Construction
IB General Pressure Transmitter IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter IIC/III Industrial General/ Display Pressure Transmitter
IF Moisture-proof Pressure Transmitter IIE/IIIE General/Display Pressure Transmitter
IN Air Conditioning Dedicated Pressure Transmitter
IC High-temperature Pressure Transmitter
IQ1/IQ2 Large Diaphragm /High-temperature Pressure Transmitter
Measurement Range -100kPa…0kPa ~ 35kPa…3.5MPa
(0-X)Kpa or MPa X: Indicates the Actual Measuring Range
Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 G1/4
J4 7/16-20UNF
J5 Other
Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 2088 Industrial Casing
B5 2088 Industrial Casing with Display
B6 Other
Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure



FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.


2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.


3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.


4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.


5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.


6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
