High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
Specifications
Certification :
ISO9001
MOQ :
1
Price :
40
Brand Name :
HT SENSOR
Model Number :
BH93420-I
Place of Origin :
Baoji, China
Model NO. :
BH93420-I
Output Signal :
Analog Type
Production Process :
Diffused Silicon
Material :
Stainless Steel
IP Rating :
IP68
Net Weight :
0.3kg
Diaphragm Material :
316L Stainless Steel
Long-Term Stability :
+-0.2%F.S/Year
Operating Temp. :
-20~80ºC
Measurement Range :
0~10m…400m
Accuracy :
±0.25% (Typ.) ±0.5% (Max.)
Repeatability :
±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis :
±0.03% (Typ.) ±0.05%FS (Max.)
Zero Point Drift :
±1.5%F.S(Typ.) ±2%F.S (Max.)
Full Scale Drift :
±1.5%F.Sr(Typ.) ±2%F.S (Max.)
Description
High Temperature And Corrosion Resistant Pressure Transmitter Liquid Level Sensor

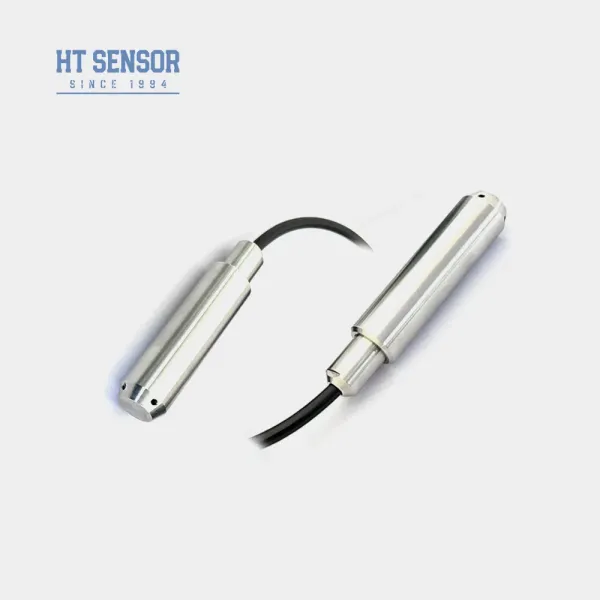

The BH93420-I water level transmitter utilizes HT series diffused silicon isolation oil-filled core technology as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, this immersion-type sensor features complete stainless steel sealing for superior waterproof performance. Rigorous high and low-temperature compensation and aging tests ensure high reliability and excellent stability.
Product Features
  • Full stainless steel housing suitable for various testing environments
  • Immersion-type probe measurement for easy installation
  • Diverse output signal options available
  • Explosion-proof certification: ExiaIICT6
  • High protection rating: IP68

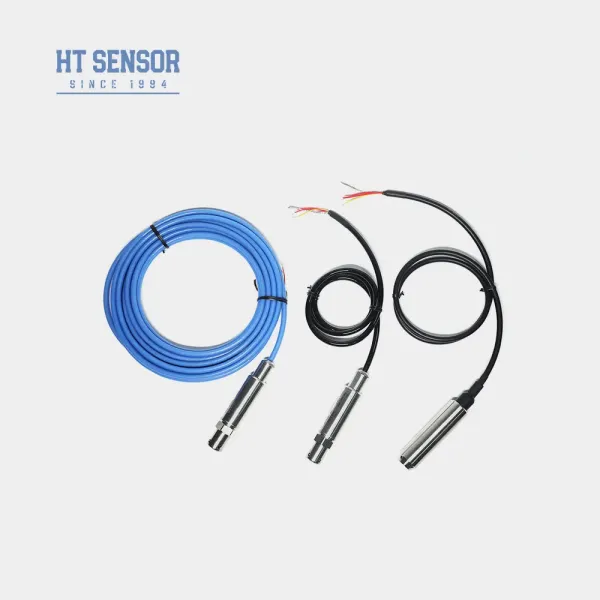

  • PE or PU cable options
Applications
  • Compatible with 316L stainless steel and non-corrosive liquids
  • Monitoring water levels in sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
  • Measuring fuel levels in diesel and fuel tanks
Performance Parameters
Measurement Range0~10m…400m
Overload≤ 2 X of rated range
Accuracy @ 25ºC±0.25% (Typ.) ±0.5% (Max.)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability±0.2%F.S/year (Max.)
Zero Point Temperature Drift±1.5%F.S(Typ.) ±2%F.S (Max.)
Full Scale Temperature Drift±1.5%F.Sr(Typ.) ±2%F.S (Max.)
Compensation Temperature0-50ºC (0-1m. 0-2m); 0-70ºC
Operating Temperature-20~80ºC
Storage Temperature-30~100ºC
Vibration10g,55Hz ~ 2kHz
Housing Material1Cr18Ni9Ti
Diaphragm Material316L Stainless Steel
Insulation Resistance>=100MΩ@100VDC
Explosion-proof RatingExiaIICT6
Protection RatingIP67, IP68
O-Ring SealFluoro rubber
Weight~0.3Kg (without cable)
Cable MaterialPolyethylene, Polyurethane
Output Signal Options
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0/1~10V
0.5~4.5V		5VDC
RS485 Communication Protocol3.6~30V / Battery4 wire
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
Ordering Information
Ordering Tips
  • Ensure measured medium compatibility with product components during selection
  • Specify the density of the measured medium
  • For strong electromagnetic or radio frequency interference, provide details and indicate in order
  • Install lightning protection devices on-site and ensure reliable grounding for optimal operation
Order Guide
ComponentCodeDescription
Base ModelBH93420Pressure Transmitter
Measurement Range 0~10m…400m
Power SupplyD124VDC
Power SupplyD25VDC
Power SupplyD3Other
Output SignalS14~20mADC
Output SignalS21~5VDC
Output SignalS30~5VDC
Output SignalS40~10mADC
Output SignalS50~20mADC
Output SignalS60~10VDC
Output SignalS70.5~4.5VDC
Output SignalS8RS485
Pressure TypeGGauge Pressure
Pressure TypeAAbsolute Pressure
Pressure TypeSSealed Reference Pressure
Material01304 Stainless Steel
Material02316L Stainless Steel
Cable MaterialC1PE
Cable MaterialC2PU
High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter High Temperature And Corrosion Resistant IP68 Waterproof Liquid Level Sensor Pressure Transmitter
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?

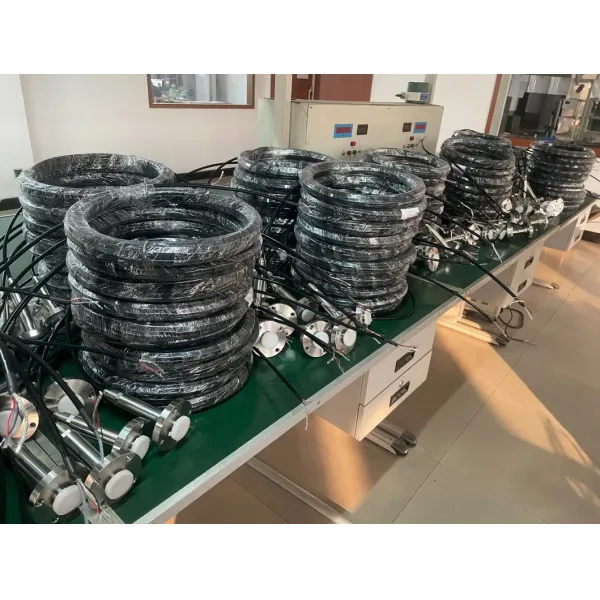

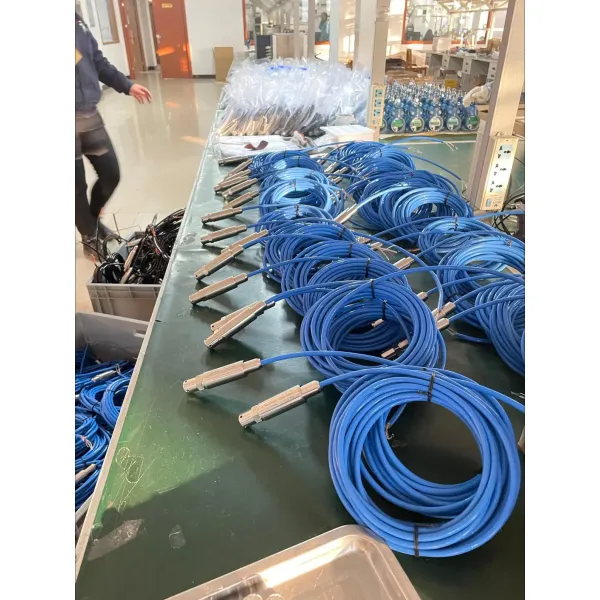

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
