Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Specifications
Certification :
ISO9001
MOQ :
1
Price :
50
Brand Name :
HT SENSOR
Model Number :
BH93420-III
Place of Origin :
Baoji, China
Model NO. :
BH93420-III
Output Signal :
Analog Type
Production Process :
piezoresistive diffused silicon pressure sensor
IP Rating :
IP68
Net Weight :
1.5kg
Diaphragm Material :
316L Stainless Steel
Cable Material :
PE,PU,PTFE
Measurement Range :
0~1m…400mH2O
Pressure Type :
Gauge Pressure, Absolute Pressure, Sealed Pressure
Operating Temperature :
-20~80ºC
Explosion-proof Rating :
ExiaIICT6
Housing Material :
Cast aluminum, 1Cr18Ni9Ti
Description

Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter

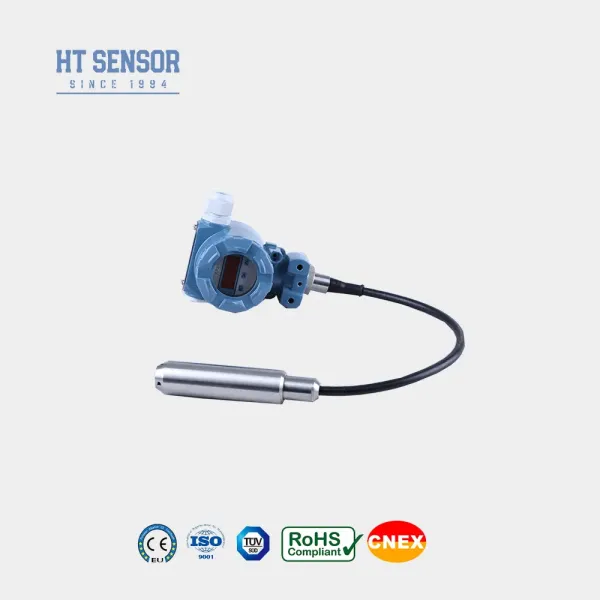

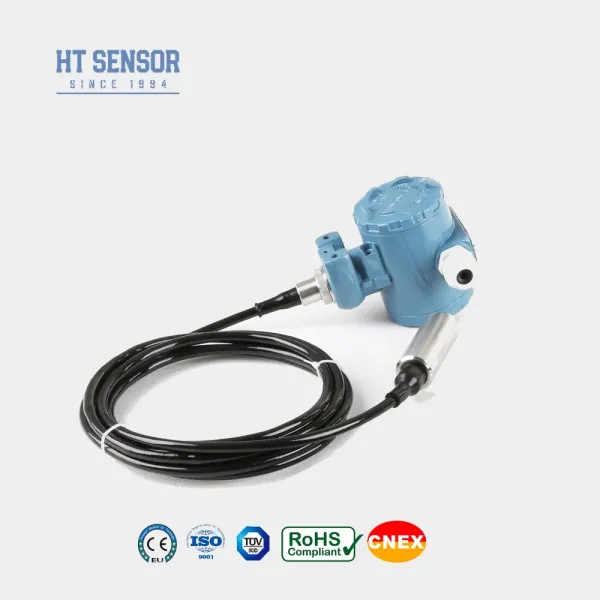

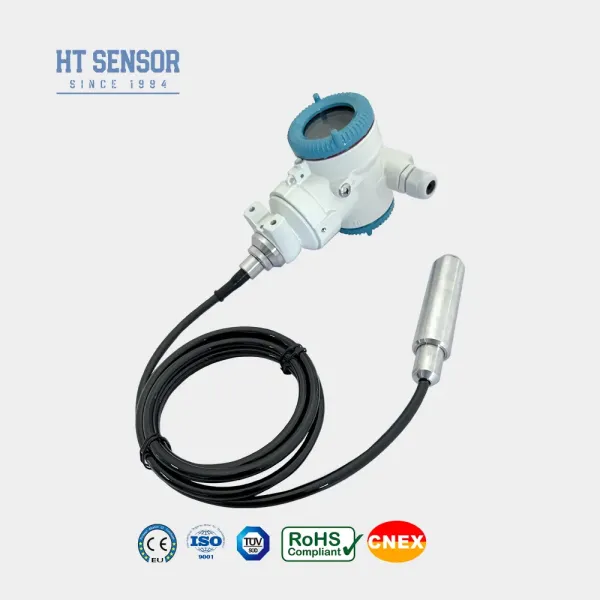

BH93420-III Water Level Transmitter with Display
The BH93420-III water level transmitter utilizes a highly precise Piezoresistive diffused silicon pressure sensor to measure static pressure, which directly correlates to water level. This pressure is converted into standard signal output through amplification circuitry, establishing a linear relationship between output signal and liquid level for precise and accurate measurement.
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Key Features
  • Split-type design for easy on-site wiring and calibration
  • Integrated LED display for clear readings
  • Explosion-proof rating: ExiaIICT6
  • High protection rating: IP68
  • Multiple cable options: PE, PU, PTFE
Applications
  • Compatible with 316L stainless steel and non-corrosive liquids
  • Water level monitoring for sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
  • Diesel, fuel, and other oil tank level monitoring
Performance Parameters
Measurement Range0~1m…400m H₂O
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity≤ 2X rated range
Accuracy @ 25ºC±0.25% (Typ.) ±0.5% (Max.)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability±0.15%F.S/year (Max.)
Zero Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature-20~80ºC
Storage Temperature-30~100ºC
Vibration Resistance10g, 55Hz ~ 2kHz
Shock Resistance100g
Housing MaterialCast aluminum, 1Cr18Ni9Ti
Diaphragm Material316L Stainless Steel
Insulation Resistance>=100MΩ@100VDC
Explosion-proof RatingExiaIICT6
Protection RatingIP68
O-Ring SealFluoro rubber
Weight~1.5Kg (without cable)
Cable MaterialPolyethylene, Polyurethane, PTFE cable
Output SignalSupply VoltageOutput Type
4~20mA15~30VDC2/3/4 wire
RS485 Communication Protocol 4 wire

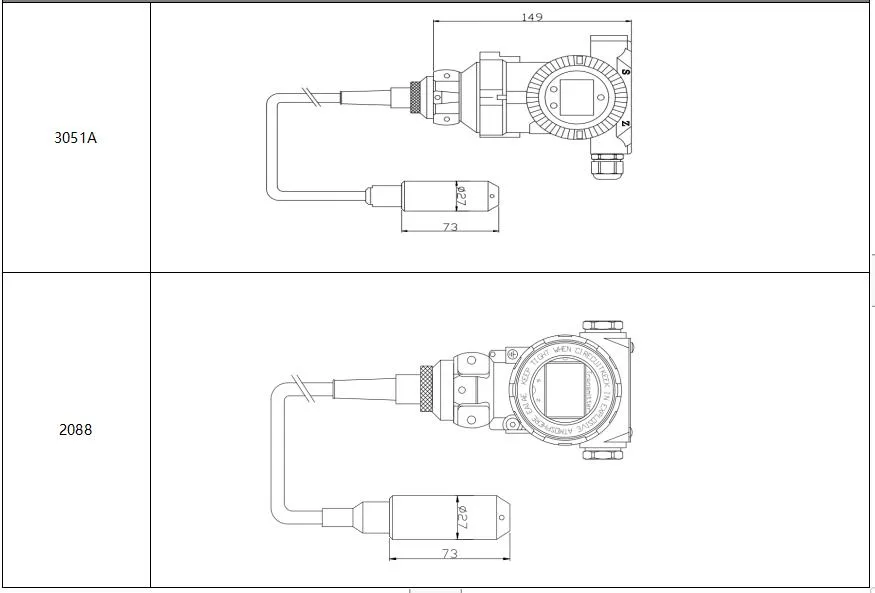

Outline Construction
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter

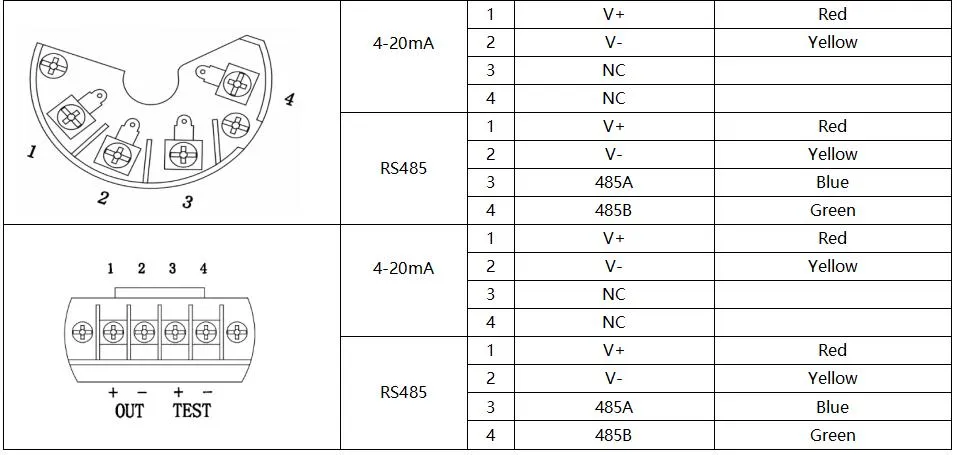

Electrical Connection
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter

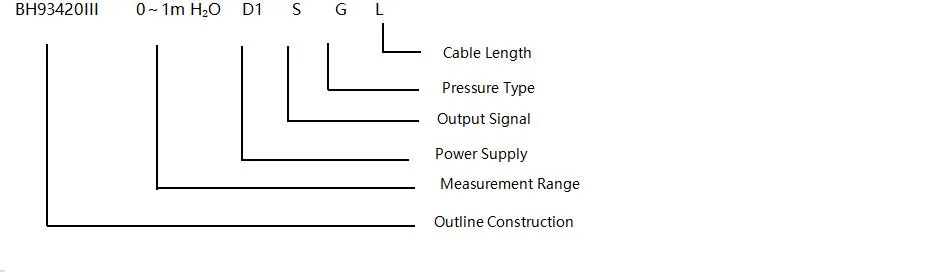

Selection Examples
Liquid Level Transmitter with Accuracy and LED Display Water Pressure Transmitter
Ordering Information
Important Considerations
  • Ensure measured medium compatibility with product components
  • Specify the density of the measured medium
  • Detail any strong electromagnetic or radio frequency interference environments
  • Install lightning protection devices and ensure proper grounding for reliable operation
Order Guide
BH93420CodeOutline Construction
IPressure Transmitter
Measurement Range0~10m…400m
CodePower Supply
D124VDC
D25VDC
D3Other
CodeOutput Signal
S14~20mADC
S21~5VDC
S30~5VDC
S40~10mADC
S50~20mADC
S60~10VDC
S70.5~4.5VDC
S8RS485
CodePressure Type
GGauge Pressure
AAbsolute Pressure
SSealed Reference Pressure
CodeMaterial
01304 Stainless Steel
02316L Stainless Steel
CodeCable Material
C1PE
C2PU
Frequently Asked Questions
  • What are the features of your pressure sensor transmitters?
  • High precision, durability, and excellent performance. Customization available.
  • Can I customize special specifications?
  • Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
  • What is your production capacity?
  • Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.
  • What's the typical delivery period?
  • 5-8 working days for standard models. Customized products may vary.
  • How are the products priced? Any discounts?
  • Competitive pricing with discounts for bulk orders or long-term partners.
  • What is the warranty of your products? And after-sales service?
  • 24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.
