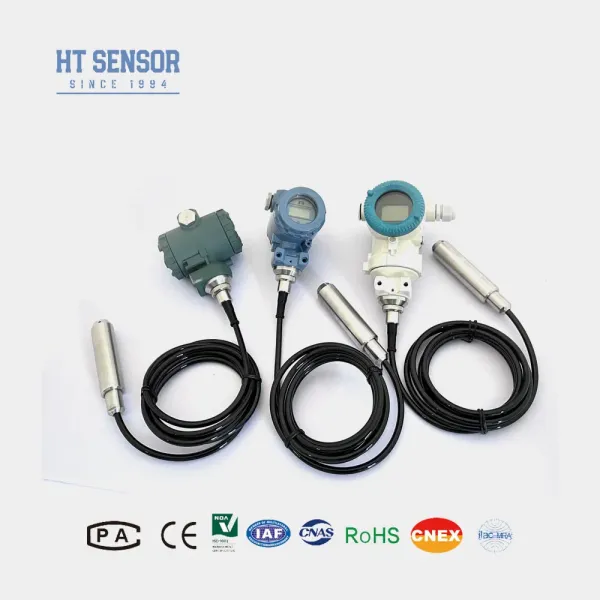

BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
Specifications
Certification :
CE,RoHS
MOQ :
1
Price :
50
Output Signal :
4-20mA or RS485
IP Rating :
IP68
Net Weight :
0.3kg
Diaphragm Material :
316L Stainless Steel
Accuracy :
0.25%, 0.5%
Cable Material :
PE, PU, PTFE
Measurement Range :
0~10m…400m
Pressure Type :
Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity :
≤ 2X rated range
Operating Temperature :
-20~80ºC
Storage Temperature :
-30~100ºC
Housing Material :
Cast aluminum, 1Cr18Ni9Ti
Insulation Resistance :
>=100MΩ@100VDC
Explosion-proof Rating :
ExiaIICT6
Supply Voltage :
15~30VDC
Description
BH93420-III Oil Level Sensor with Display
The BH93420-III oil level sensor features a highly precise Piezoresistive diffused silicon pressure sensor for accurate liquid level measurement. It converts static pressure into standard 4-20mA output signals with linear relationship to liquid level.
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
Key Features
  • Split-type design for easy on-site wiring and calibration
  • Integrated LED display for real-time monitoring
  • Explosion-proof rating: ExiaIICT6
  • High protection rating: IP68
  • Multiple cable options: PE, PU, PTFE
Applications
  • Compatible with 316L stainless steel and non-corrosive liquids
  • Water level monitoring for sewage, industrial water, municipal water systems, tanks, wells, rivers, seawater, and lakes
  • Diesel, fuel, and oil tank level monitoring
Performance Parameters
Measurement Range0~10m…400m
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload≤ 2X rated range
Accuracy @ 25ºC±0.25% (Typ.) ±0.5% (Max.)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability±0.15%F.S/year (Max.)
Zero Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature-20~80ºC
Storage Temperature-30~100ºC
Vibration10g,55Hz ~ 2kHz
Shock100g
Housing MaterialCast aluminum, 1Cr18Ni9Ti
Diaphragm Material316L Stainless Steel
Insulation Resistance>=100MΩ@100VDC
Explosion-proof RatingExiaIICT6
Protection RatingIP68
O-Ring SealFluoro rubber
Weight~1.5Kg (without cable)
Cable MaterialPolyethylene, Polyurethane, PTFE cable
Output Signal Specifications
Output SignalSupply VoltageOutput Type
4~20mA15~30VDC2/3/4 wire
RS485 Communication Protocol4 wire
Outline Construction
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
Electrical Connection
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
Selection Examples
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
BH93420-III Liquid Level Transmitter with 4-20mA Output 316L Stainless Steel and IP68 Waterproof Level Sensor
Ordering Information
Important Considerations:
• Ensure measured medium compatibility with product components
• Specify density of measured medium
• For strong electromagnetic or RF interference environments, provide details during ordering
• Install lightning protection devices and ensure proper grounding for reliable operation
Order Guide
BH93420 | Code | Outline Construction
| III | Liquid level transmitter with the 2088 housing
| | Measurement Range | 0~10m…400m
| | | Code | Power Supply
| | | D1 | 24VDC
| | | | Code | Output Signal
| | | | S1 | 4~20mADC | S2 | RS485
| | | | | Code | Electrical Connection
| | | | | B5 | 2088 with display
| | | | | B6 | 3051A
| | | | | | Code | Pressure Type
| | | | | | G | Gauge Pressure
| | | | | | A | Absolute Pressure
| | | | | | S | Sealed Reference Pressure
| | | | | | | Code | Material
| | | | | | | 01 | 304 Stainless Steel
| | | | | | | 02 | 316L Stainless Steel
| | | | | | | | Code | Cable Material
| | | | | | | | C1 | PE
| | | | | | | | C2 | PU
| | | | | | | | C3 | PTFE
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large-scale orders.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: 24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network instruction available.
