Specifications
Certification :
CE, RoHS
MOQ :
1
Price :
20
Model NO. :
BP156TC
Measuring Medium :
Air or liquid
Accuracy Grade :
0.5G
Pressure range :
0kpa~10kpa...5MPa
IP Rating :
IP65
Pressure Type :
Gauge Pressure
Housing Material :
304 SS
Long-Term Stability :
0.1%F.S/Year
Measurement Range :
0kPa ~ 10kPa…20MPa
Overload :
≤ 1.5 times of the rated range
Accuracy @ 25ºC :
±0.5% (Maximum)
Repeatability& Hysteresis :
0.02%F.S(Typ.) 0.05%F.S(Max.)
Zero Point Temperature Drift :
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift :
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response :
2.4Khz
Description
BP156TC 4-20mA Air Piezoresistive Oil Ceramic Customized Pressure Sensor
Product Overview
The BP156TC pressure transmitter is a cost-effective solution specifically engineered for air compressors and refrigeration equipment. Featuring advanced technology and our proprietary high-performance transmitter circuit, this compact device offers exceptional moisture resistance and electromagnetic interference protection. Rigorous testing and aging selection processes ensure stable, reliable performance in demanding industrial environments.
Key Features
  • Wide measurement range with diverse pressure interface options
  • Compact, lightweight stainless steel construction
  • High precision performance with all-stainless steel structure
Applications
  • Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
  • Marine and aviation industry applications
  • Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range0kPa ~ 10kPa…20MPa
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload≤ 1.5 times of the rated range
Accuracy @ 25ºC±0.5% (Maximum)
Repeatability & Hysteresis0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response2.4Khz
Compensation Temperature0-70ºC(≤10mpa,customizable)
Operating Temperature-20ºC~80ºC
Storage Temperature-40ºC~120ºC
Vibration10g,55Hz ~ 2kHz
Housing Material304
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingEx db IIC T6 Gb
Protection RatingIP65
O-Ring SealFluoro rubber
BP156TC 4-20mA Ceramic Customized Pressure Sensor for Air and Liquid Measurement BP156TC 4-20mA Ceramic Customized Pressure Sensor for Air and Liquid Measurement
Output Signal Specifications
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA3 wire
0/1~5V
0/1~10V
0.5~4.5V		5VDC
BP156TC 4-20mA Ceramic Customized Pressure Sensor for Air and Liquid Measurement
Selection Examples
BP156TC 4-20mA Ceramic Customized Pressure Sensor for Air and Liquid Measurement
Ordering Guidelines
  • Ensure the measured medium is compatible with the product's contact materials
  • Explosion-proof type products do not include digital display heads
  • Transmitters with LCD or LED display require power supply ≥20VDC
  • Install lightning protection devices and ensure proper grounding for reliable operation
  • Fluoro rubber O-ring rated for -20ºC to 250ºC; use EPDM O-ring for temperatures below -20ºC
  • Default cable length: 1.5m (polyethylene material); specify alternative materials when ordering
  • Notify us of special requirements including vibration, impact force, or electromagnetic interference
BP156TC 4-20mA Ceramic Customized Pressure Sensor for Air and Liquid Measurement
Order Guide
ComponentCodeDescription
Outline Construction5Packard plug
6Sealed Direct Output Cable 1.5 meters
7Mini Hirschmann Connector
8Large Hirschmann Connector
Measurement Range0-X0kPa ~ 10kPa…5MPa (X indicates actual measuring range)
Power SupplyD124VDC
D25VDC
D3Other
Output SignalS14~20mADC
S21~5VDC
S30~5VDC
S40~10mADC
S50~20mADC
S60~10VDC
S70.5~4.5VDC
Pressure ConnectionJ1M20×1.5
J2G1/2
J3G1/4
J47/16-20UNF
J5Others(¢50.4 Flange)

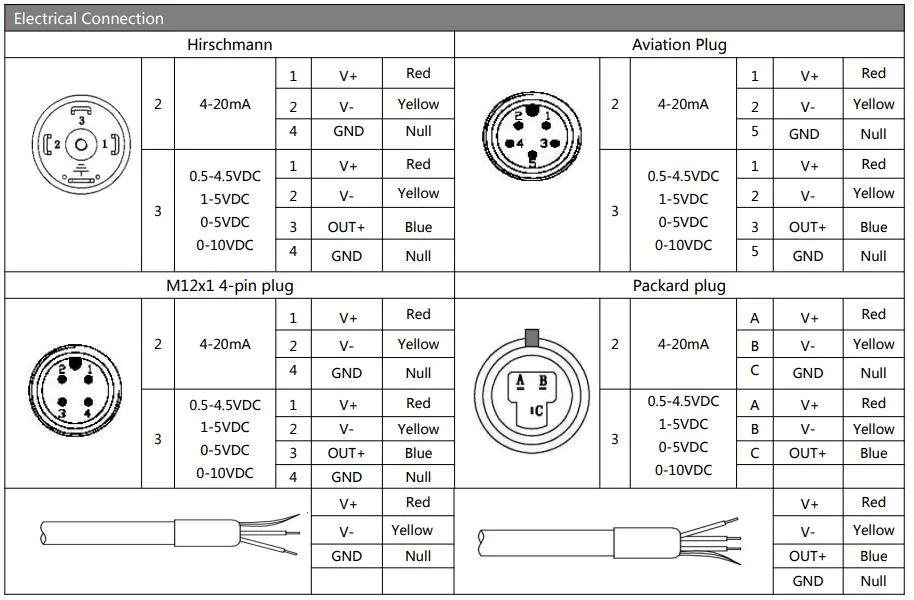

Electrical ConnectionB1Hirschmann
B2PG7
B3Cable Sealed Outlet 1.5 meters
B4Other
Pressure TypeGGauge Pressure
AAbsolute Pressure
SSealed Reference Pressure
BP156TC 4-20mA Ceramic Customized Pressure Sensor for Air and Liquid Measurement BP156TC 4-20mA Ceramic Customized Pressure Sensor for Air and Liquid Measurement BP156TC 4-20mA Ceramic Customized Pressure Sensor for Air and Liquid Measurement
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24hrs. Remote instruction by PC network is always available.
