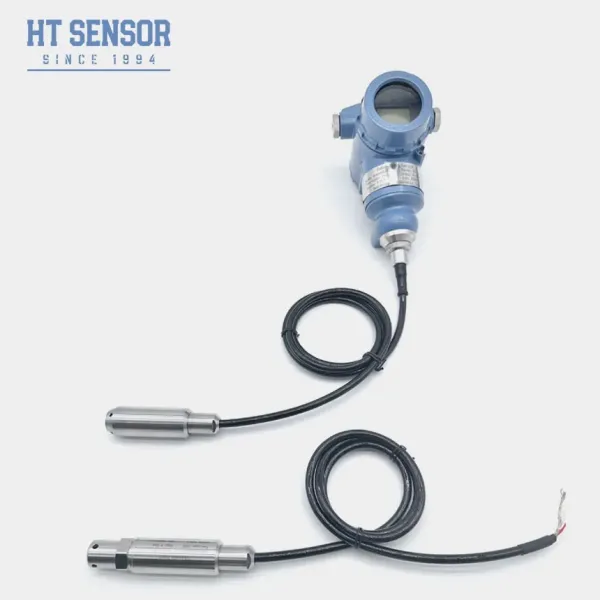

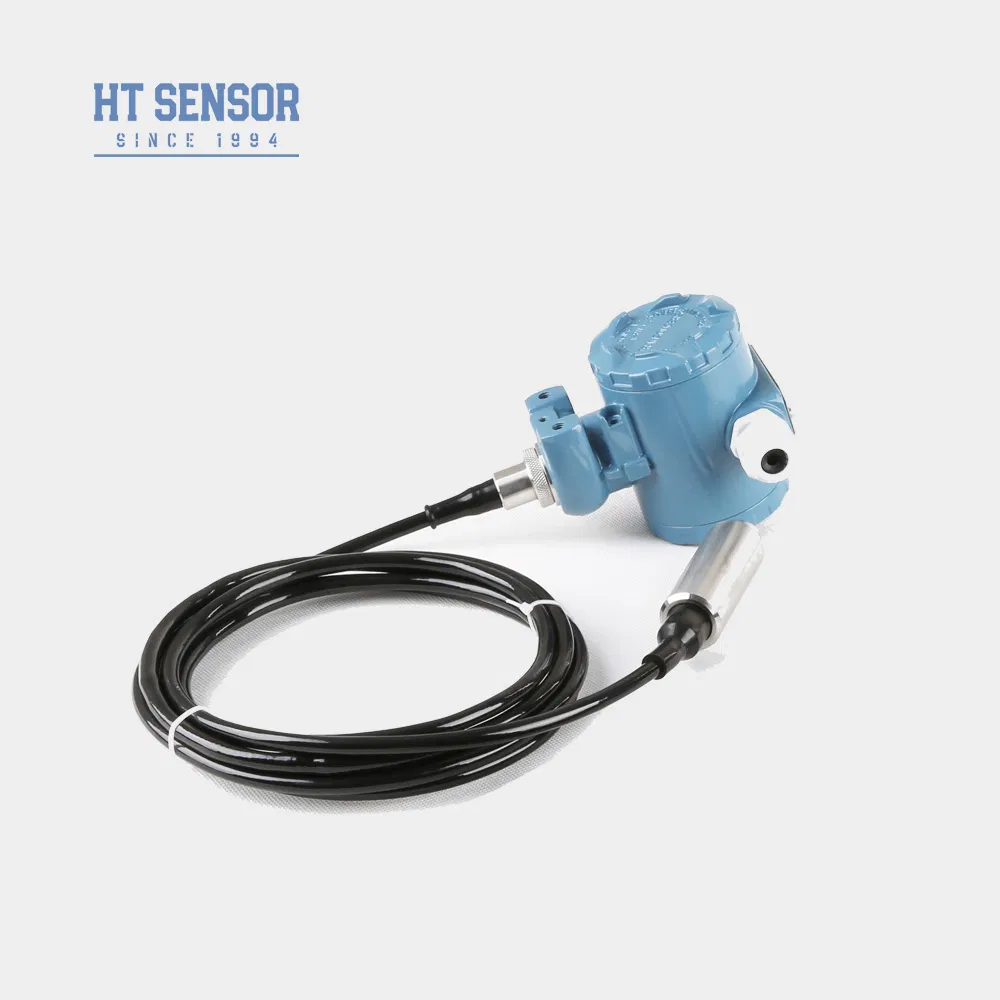

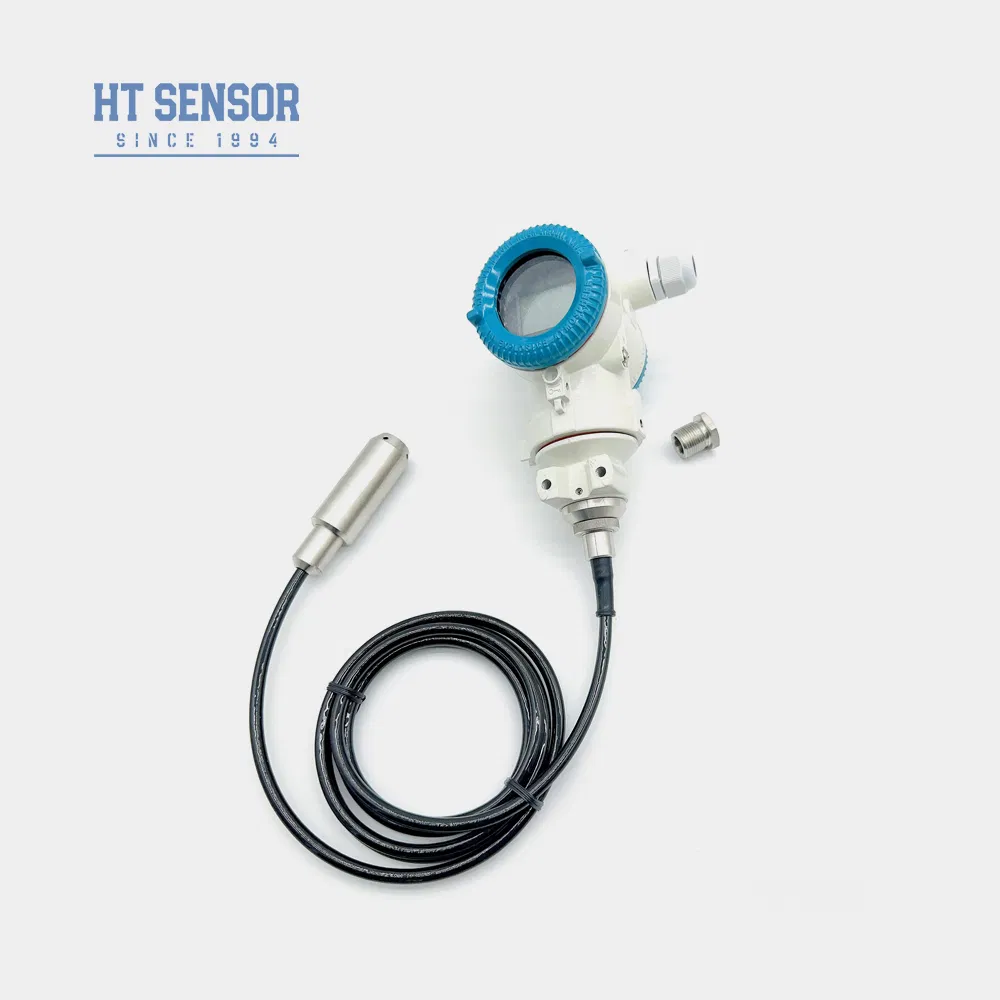

HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
Specifications
Certification :
CE,RoHS
MOQ :
1
Price :
50
Brand Name :
HT SENSOR
Model Number :
BH93420-III
Place of Origin :
Baoji, China
Output Signal :
4-20mA or RS485
IP Rating :
IP68
Net Weight :
0.3kg
Diaphragm Material :
316L Stainless Steel
Accuracy :
0.25%, 0.5%
Cable Material :
PE, PU, PTFE
Measurement Range :
0~10m…400m
Pressure Type :
Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity :
≤ 2X rated range
Operating Temperature :
-20~80ºC
Storage Temperature :
-30~100ºC
Housing Material :
Cast aluminum, 1Cr18Ni9Ti
Insulation Resistance :
>=100MΩ@100VDC
Explosion-proof Rating :
ExiaIICT6
Weight :
~1.5Kg (without cable)
Description
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
HTsensor LCD Pressure Sensor - Stainless Steel Water Leak Sensor Probe Fuel Meter Transmitter
Model BH93420-III liquid level measurement sensor with 4-20mA LED display for precise industrial monitoring applications.
Product Introduction
The BH93420-III liquid level sensor utilizes a highly precise Piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure directly related to water level and converts it into standard signal output using advanced amplification circuitry. The linear relationship between output signal and liquid level ensures precise and accurate water level measurement.
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED DisplayHTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED DisplayHTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
Key Features
  • Split-type design for easy on-site wiring and calibration
  • Bright LED display for clear readings
  • Explosion-proof rating: ExiaIICT6
  • High protection rating: IP68
  • Multiple cable options: PE, PU, PTFE
Applications
  • Compatible with 316L stainless steel and non-corrosive liquids
  • Monitoring water levels in sewage, industrial and municipal water systems, water tanks, wells, rivers, seawater, and lakes
  • Diesel, fuel, and other oil tank level monitoring
Performance Parameters
Measurement Range 0~10m…400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.15%F.S/year (Max.)
Zero Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature -20~80ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Shock 100g
Housing Material Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP68
O-Ring Seal Fluoro rubber
Weight ~1.5Kg (without cable)
Cable Material Polyethylene, Polyurethane, PTFE cable
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 15~30VDC 2/3/4 wire
RS485 Communication Protocol 4 wire
Outline Construction
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED DisplayHTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
Electrical Connection
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
Selection Examples
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
Ordering Information
Ordering Tips
  • Ensure measured medium compatibility with product components during selection
  • Specify the density of the measured medium
  • For strong electromagnetic or radio frequency interference, provide details and indicate in order
  • Install lightning protection devices on-site and ensure reliable product and power supply grounding
HTsensor 316L Stainless Steel IP68 Liquid Level Transmitter with 4-20mA Output and LED Display
Frequently Asked Questions
  • Q: What are the features of your pressure sensor transmitters?
    A: High precision, durability, and excellent performance. Customization available.
  • Q: Can I customize special specifications?
    A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
  • Q: What is your production capacity?

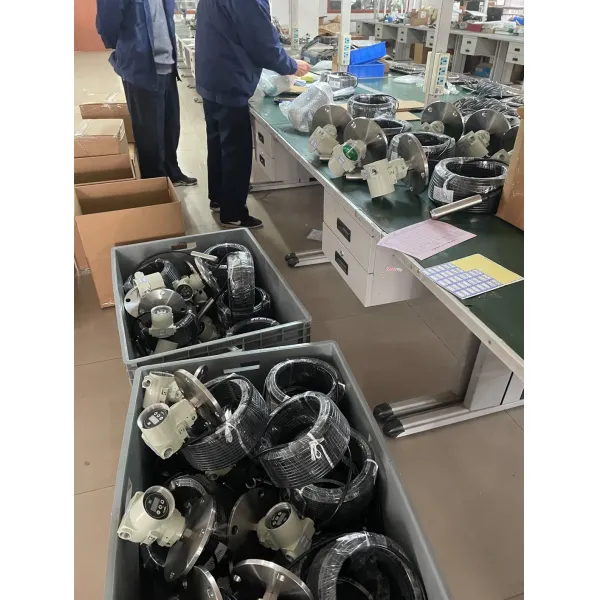

    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.
  • Q: What's the typical delivery period?
    A: 5~8 working days for standard models. Customized products may vary.
  • Q: How are the products priced? Any discounts?
    A: Competitive pricing with discounts for bulk orders or long-term partners.
  • Q: What is the warranty of your products? And after-sales service?
    A: 24-month warranty after shipment. After-sales responds within 24 hours, with remote PC network instruction available.
