Specifications
Certification :
ISO
MOQ :
1
Price :
50
Brand Name :
HT SENSOR
Model Number :
BP93420D-II
Place of Origin :
Baoji, China
Model NO. :
BP93420D-II
Measuring Medium :
Liquid and air
Accuracy Grade :
0.25%, 0.5%
Pressure Range :
0-10kpa...~2MPa
IP Rating :
IP65
Housing Material :
304 S.S.
Weight :
~0.45kg
Single-side Overload :
≤3 times of the rated range
Static Pressure :
The minimum value between 5 times the rated range or 7 MPa
Repeatability :
±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability :
±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Operating Temperature :
-30ºC~80ºC
Storage Temperature :
-40ºC~100ºC
Diaphragm Material :
316L
Output Signal :
4~20mA, 0~10/20mA, 0/1~5V, 0.5~4.5V
Description
Static Pressure Differential Pressure Transmitter Level Measurement Differential Level Sensor
BP93420DII Differential Pressure Transmitter utilizes piezoresistive diffused silicon sensor technology for precise differential pressure measurement in industrial applications.
Product Overview
The BP93420DII differential pressure transmitter employs piezoresistive diffused silicon sensor technology. When differential pressure from the measured medium acts on the corrugated diaphragms at both sensor ends, the Wheatstone bridge output signal maintains excellent linear correlation with differential pressure, ensuring accurate measurement. Ideal for gas and liquid differential pressure measurement in petroleum, chemical, power, and hydrology industries for pipeline applications.
IP65 Protection Stainless Steel Differential Pressure Transmitter for Level Measurement Differential Sensor IP65 Protection Stainless Steel Differential Pressure Transmitter for Level Measurement Differential Sensor
Key Features
  • Stainless steel structural design for compact size and easy installation
  • Rigorous temperature compensation and aging screening for stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring
Applications
  • Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology pipeline industries
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology sectors
  • Pressure measurement for pipelines and furnace chambers
Performance Parameters
Measurement Range 0-10KPa...~2MPa
Pressure Type Differential Pressure
Single-side Overload ≤3 times of the rated range
Static pressure The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature -30ºC~80ºC
Storage Temperature -40ºC~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Intrinsically safe and explosion-proof
Protection Rating IP65
Weight ~0.45kg
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0.5~4.5V		 5VDC
IP65 Protection Stainless Steel Differential Pressure Transmitter for Level Measurement Differential Sensor IP65 Protection Stainless Steel Differential Pressure Transmitter for Level Measurement Differential Sensor IP65 Protection Stainless Steel Differential Pressure Transmitter for Level Measurement Differential Sensor IP65 Protection Stainless Steel Differential Pressure Transmitter for Level Measurement Differential Sensor
Ordering Information
Selection Guidelines
  • Ensure measured medium compatibility with product contacting parts
  • Install three-valve manifold between measurement point and transmitter for reliable operation
  • Position pressure interfaces horizontally during installation to minimize location impact
  • Specify special requirements for strong vibration, instant impact, electromagnetic interference, or radio frequency interference

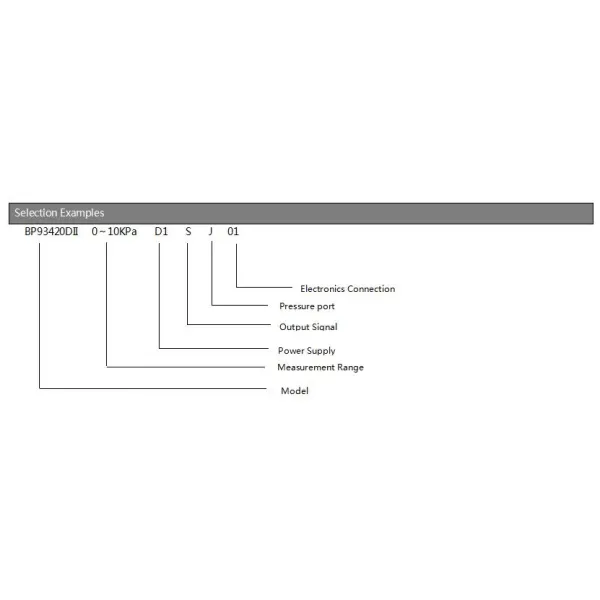

Order Guide
BP93420XX Pressure Transmitter
Code Outline Construction
DII Differential Pressure Transmitter
Measurement Range 0-10KPa...~2MPa
Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
Code Output Signal
S1 4~20mADC
S2 1~5VDC
S3 0~5VDC
S4 0~10mADC
S5 0~20mADC
S6 0~10VDC
S7 0.5~4.5VDC

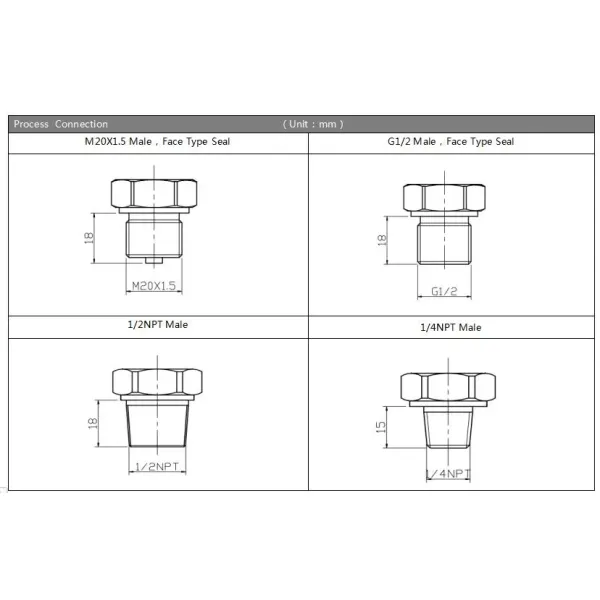

Code Pressure Connection
J1 M20×1.5 Male
J2 G1/2 Male
J3 G1/4 Male
J4 1/2 NPT Male
J5 Other

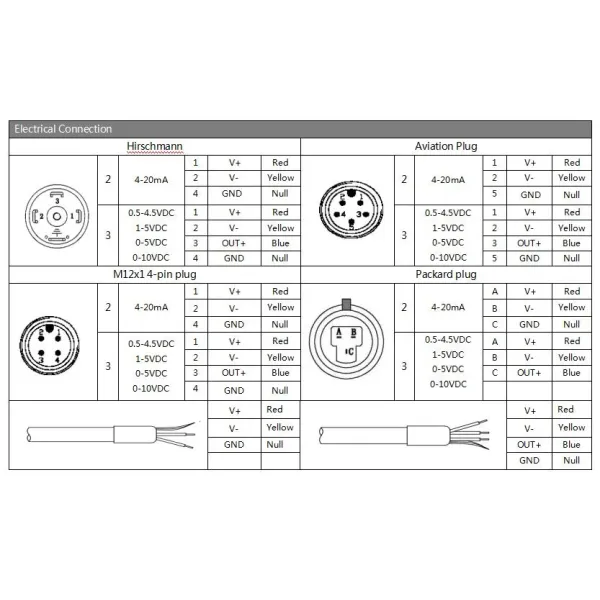

Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 Other
Code Pressure Type
D Differential Pressure
