BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure SensorBP93420DII Pressure Control System
G1/4 & 1/4NPT Differential Pressure Transducer & Transmitter
Product Overview
The BP93420DII differential pressure transmitter utilizes advanced piezoresistive diffused silicon sensor technology. When differential pressure acts on the corrugated diaphragms at both sensor ends, the Wheatstone bridge output signal maintains excellent linear correlation with the pressure differential, ensuring precise measurement accuracy.
BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure Sensor
Key Features
  • Stainless steel construction for compact design and easy installation
  • Rigorous temperature compensation and aging screening for stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring configurations
Industrial Applications
  • Differential pressure measurement for gases and liquids in pipeline systems
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology sectors
  • Pressure measurement for pipelines and furnace chamber applications
BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure Sensor BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure Sensor BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure Sensor BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure Sensor
Technical Specifications
Measurement Range 0-10KPa...~2MPa
Pressure Type Differential Pressure
Single-side Overload ≤3 times of rated range
Static Pressure Minimum of 5 times rated range or 7 MPa
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC
Operating Temperature -30ºC~80ºC
Storage Temperature -40ºC~100ºC
Vibration Resistance 10g, 55Hz ~ 2kHz
Housing Material 304, 316L Stainless Steel
Diaphragm Material 316L Stainless Steel
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Intrinsically safe and explosion-proof
Protection Rating IP65
Weight ~0.45kg
Output Signal Configuration
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0.5~4.5V		 5VDC
BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure Sensor BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure Sensor BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure Sensor BP93420DII Differential Pressure Transmitter 4-20mA Output for Industrial Applications Differential Pressure Sensor
Installation Guidelines
  • Verify measured medium compatibility with product contacting materials before selection
  • Install three-valve manifold between measurement point and transmitter for reliable operation
  • Position pressure interfaces horizontally to minimize installation location impact
  • Specify special requirements (vibration, impact, EMI/RFI) during ordering process
Ordering Information
Component Code Description
Product Series BP93420XX Pressure Transmitter
Construction Type DII Differential Pressure Transmitter
Measurement Range 0-10KPa...~2MPa
Power Supply D1 24VDC
Power Supply D2 5VDC
Power Supply D3 Other
Output Signal S1 4~20mADC
Output Signal S2 1~5VDC
Output Signal S3 0~5VDC
Output Signal S4 0~10mADC
Output Signal S5 0~20mADC
Output Signal S6 0~10VDC
Output Signal S7 0.5~4.5VDC
Pressure Connection J1 M20×1.5 Male
Pressure Connection J2 G1/2 Male
Pressure Connection J3 G1/4 Male
Pressure Connection J4 1/2 NPT Male
Pressure Connection J5 Other

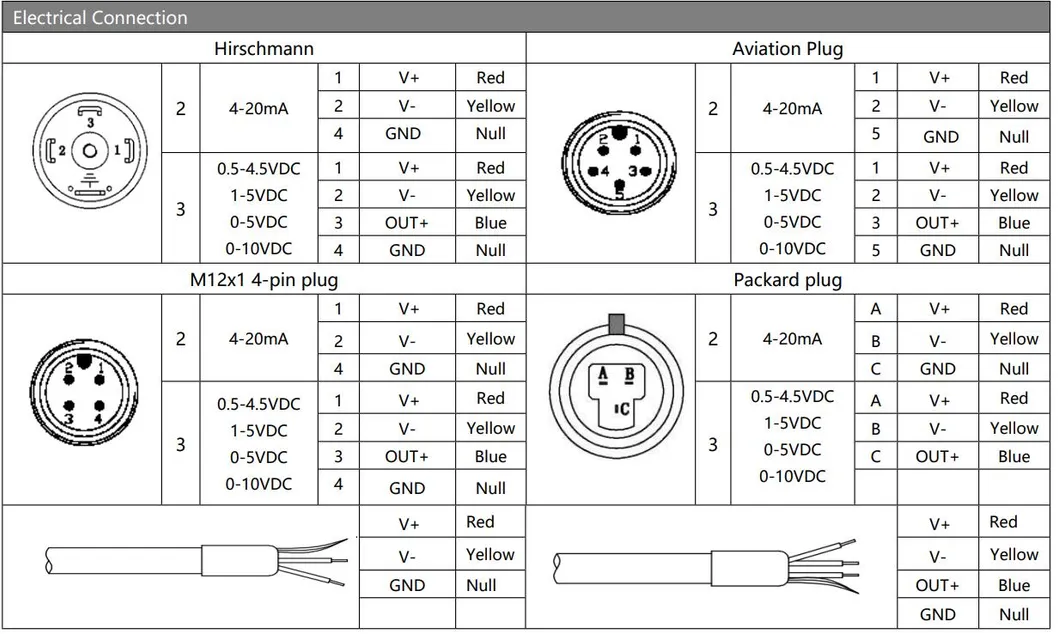

Electrical Connection B1 Hirschmann
Electrical Connection B2 PG7 Plug
Electrical Connection B3 Sealed Cable Output
Electrical Connection B4 Other
Pressure Type D Differential Pressure
Frequently Asked Questions
  • What are the key features of your pressure sensor transmitters?
  • Our transmitters offer high precision, exceptional durability, and reliable performance. Customization options are available to meet specific application requirements.
  • Can I request custom specifications?
  • Yes, our engineering team can develop tailored solutions for unique applications. We provide comprehensive OEM and ODM services.
  • What is your production capacity?
  • Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters monthly, ensuring we can accommodate large-scale orders. Contact our sales team for production scheduling.
  • What is the typical delivery timeframe?
  • Standard models typically ship within 5-8 working days. Customized products may require additional time based on specifications.
  • How are products priced? Are volume discounts available?
  • We offer competitive pricing with attractive discounts for bulk orders and long-term partnership agreements.
  • What warranty and after-sales support do you provide?
  • All products include a 24-month warranty from shipment date. Our technical support team responds to inquiries within 24 hours, with remote PC network assistance available.
