316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
Specifications
Certification :
CE, RoHS, ISO9001
MOQ :
1
Price :
60
Model NO. :
BH93420-I
Pressure Range :
Gauge Pressure, Absolute Pressure
Accuracy Grade :
0.25%,0.5%
IP Rating :
IP68
Net Weight :
0.3kg
Diaphragm Material :
316L Stainless Steel
Cable Material :
PE, PU, PTFE
Measurement Range :
0-1m~200m
Overload Capacity :
≤ 2X rated range
Operating Temperature :
-20~80ºC
Storage Temperature :
-30~100ºC
Housing Material :
1Cr18Ni9Ti, 316L Stainless Steel
Insulation Resistance :
>=100MΩ@100VDC
Explosion-proof Rating :
ExiaIICT6
Protection Rating :
IP67, IP68
Description

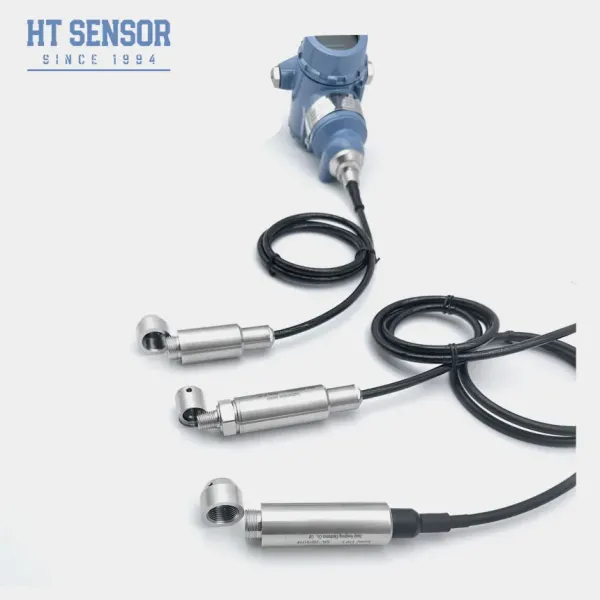

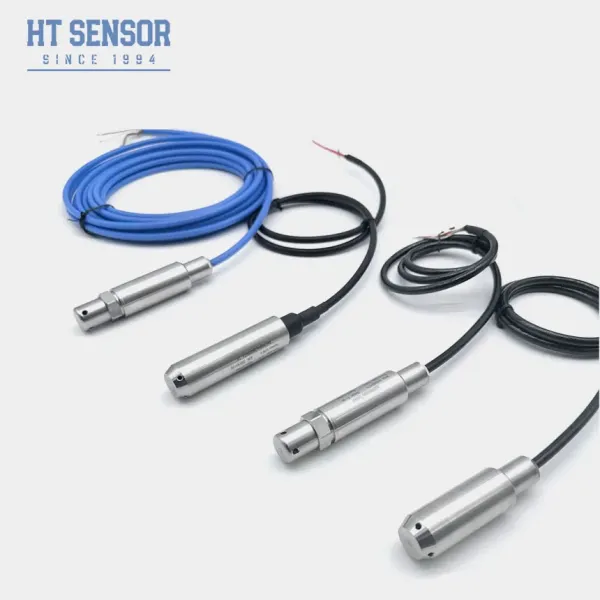

BH93420-IT Liquid Level Transmitter for Oil and Water Pressure Testing
The BH93420-IT liquid level transmitter utilizes HT series high-precision piezoresistive diffused silicon pressure sensor technology. Featuring a fully welded stainless steel housing with hexagonal and water guide head design, this transmitter employs advanced waterproof sealing technology to meet diverse customer installation requirements across various application scenarios.
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
Product Features
  • Fully welded design ensuring safety and reliability
  • Dual installation options: probe insertion and threaded mounting
  • Rigorously tested for high and low temperature applications
  • Explosion-proof rating: ExiaIICT6
  • Available with PTFE or PU cables
  • Multiple output signal options for flexible integration
Applications
  • Compatible with 316L stainless steel and non-corrosive liquids
  • Water level monitoring for sewage, industrial, municipal water systems, tanks, wells, rivers, seawater, and lakes
  • Fuel level measurement in diesel and fuel storage tanks
Performance Parameters
ParameterSpecification
Measurement Range0~10m…400m
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload≤ 2X rated range
Accuracy @ 25ºC±0.25% (Typ.) ±0.5% (Max.)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability±0.2%F.S/year (Max.)
Zero Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature0-50ºC (0-1m . 0-2m ); 0-70ºC
Operating Temperature-20~80ºC
Storage Temperature-30~100ºC
Vibration10g,55Hz ~ 2kHz
Shock100g
Housing Material1Cr18Ni9Ti,316L Stainless Steel
Diaphragm Material316L Stainless Steel
Insulation Resistance>=100MΩ@100VDC
Explosion-proof RatingExiaIICT6
Protection RatingIP67, IP68
O-Ring SealFluoro rubber
Weight~0.3Kg (without cable)
Cable MaterialPolyethylene, Polyurethane
Output Signal Specifications
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA3 wire
0/1~5V5VDC
0/1~10V
0.5~4.5V
Outline Construction
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
Electrical Connection
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
Selection Examples
316L Stainless Steel IP68 Liquid Level Transmitter with 0.25% Accuracy for Oil and Water Pressure Measurement
Ordering Guidelines
  • Verify measured medium compatibility with product components during selection
  • Specify the density of the measured medium
  • For strong electromagnetic or radio frequency interference environments, provide details and indicate in order
  • Install lightning protection devices on-site and ensure reliable product and power supply grounding
Order Guide
ComponentCodeDescription
Base ModelBH93420Liquid Level Transmitter
TypeITPressure Transmitter
Measurement Range0~10m…400m
Power SupplyD124VDC
Power SupplyD25VDC
Power SupplyD3Other
Output SignalS14~20mADC
Output SignalS21~5VDC
Output SignalS30~5VDC
Output SignalS40~10mADC
Output SignalS50~20mADC
Output SignalS60~10VDC
Output SignalS70.5~4.5VDC
Output SignalS8RS485
Pressure TypeGGauge Pressure
Pressure TypeAAbsolute Pressure
Pressure TypeSSealed Reference Pressure
Material01304 Stainless Steel
Material02316L Stainless Steel
Cable MaterialC1PU
Cable MaterialC2PTFE
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale order requirements. Contact our sales team in advance for production and delivery scheduling.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.
