Specifications
Model Number :
HT-IQT
dia :
50.4mm
Production Capacity :
50000PCS/Year
MOQ :
5
Model NO. :
HT-IQT
Material :
Stainless Steel
output :
mv signal
Trademark :
HengTong
Place of Origin :
CN
Brand Name :
HT
temperature :
-40~125
Certification :
RoHS
Price :
38
Packaging Details :
cartons
Specification :
50.4mm
Output Signal Type :
Analog Type
Measuring Medium :
Gas and Liquid
Power :
1.5mA
Transport Package :
Carton
For :
Diffused Silicon Pressure Transmitter
IP Rating :
IP65
Production Process :
Integration
Wiring Type :
Four-Wire
Customized :
Customized
Thread Type :
No
Origin :
China
HS Code :
9026209090
Description
HT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure SensorHT-IQT high temperature level sensor pressure transducer water meter
HT-IQT Silicon Piezoresistive Pressure Sensor

Introduction:

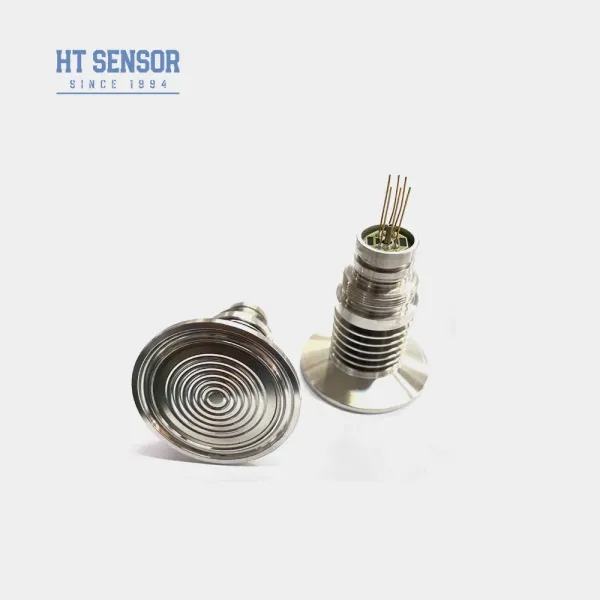

HT-IQT is a flush diaphragm pressure sensor with a highly stable diffused silicon chip. The pressure is transmitted to the sensitive chip through a stainless steel diaphragmand sealed silicon oil. The sensitive chip does not directly contact the measured medium. This product features a flat diaphragm structure, making it easy to clean and highly reliable. It is suitable for applications in industries such as food and hygiene.
HT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure Sensor
HT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure Sensor
HT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure Sensor


Product Features:
  1. Advanced technology and 316L stainless steel housing packaging
  2. Temperature compensation and zero point correction through thick film
  3. circuit Outstanding reliability, repeatability, and stability
  4. High-temperature flush diaphragm structure for easy cleaning
Applications:
  1. Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
  2. Food and beverage industry
  3. Industrial process control
  4. Pharmaceutical industry
Electrical performance:
  1. Power Supply: ≤2mA DC (Typical 1.5mA DC)
  2. Input Impedance : 2.5KΩ~6KΩ
  3. Output Impedance: 2.5KΩ~6KΩ
  4. Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.
Performance Parameters:
Measurement Range Gauge(G) 35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS
Typ Max Unit
NonLinearity ±0.15 ±0.3 %F.S
Repeatability 0.05 0.1 %F.S
Hysteresis 0.05 0.1 %F.S
Zero Offset Output 0±1 0±2 mV
Full Scale Output ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature -20~80 ºC
Storage Temperature -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 % F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~220g
The parameters are tested under the following conditions: 1.5mA @25°C
Outline Construction
Dimension
HT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure Sensor



Electrical connection and compensation
HT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure Sensor
Selection Examples
HT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure Sensor
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
company
HT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure SensorHT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure SensorHT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure SensorHT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure Sensor
HT-IQT High Temperature Level Sensor Pressure Transducer Water Meter Pressure Sensor
FQA
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
