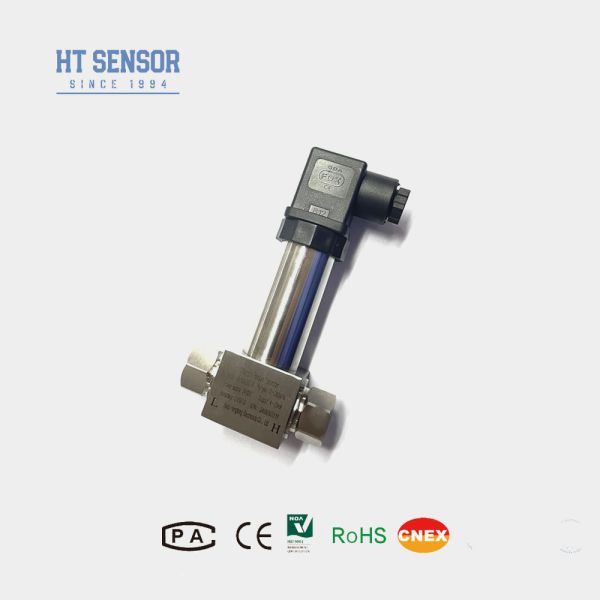

HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
Specifications
Certification :
ISO9001
MOQ :
1
Price :
60
Brand Name :
HT SENSOR
Model Number :
BP93420D-II
Place of Origin :
Baoji,China
Model NO. :
BP93420DII
Measuring Medium :
Liquid
Accuracy Grade :
0.25%, 0.5%
Pressure Range :
0-10kpa...~2MPa
IP Rating :
IP65
Housing Material :
304 Ss
Weight :
~0.55kg
Pressure Type :
Differential Pressure
Single-side Overload :
≤3 times of the rated range
Static Pressure :
The minimum value between 5 times the rated range or 7 MPa
Repeatability :
±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability :
±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Operating Temperature :
-30ºC~80ºC
Storage Temperature :
-40ºC~100ºC
Output Signal :
4~20mA, 0~10/20mA, 0/1~5V, 0.5~4.5V
Description
HT Sensor Differential Pressure Transmitter for Petroleum Chemical Industry
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor View Product Catalog
Product Introduction
The BP93420DII differential pressure transmitter utilizes a piezoresistive diffused silicon sensor. When differential pressure from the measured medium acts on the corrugated diaphragms at both sensor ends, the Wheatstone bridge output signal maintains excellent linear correlation with differential pressure, ensuring precise measurement. This transmitter is ideal for gas and liquid differential pressure measurement in petroleum, chemical, power, and hydrology industry pipelines.
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
Product Features
  • Stainless steel structural design for compact size and easy installation
  • Rigorous temperature compensation and aging screening ensure stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring configurations
Applications
  • Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology industry pipelines
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology applications
  • Pressure measurement for pipelines and furnace chambers
Performance Parameters
Measurement Range0-10KPa...~2MPa
Pressure TypeDifferential Pressure
Single-side Overload≤3 times of the rated range
Static pressureThe minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC±0.25% (Typical) ±0.5% (Maximum)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature-30ºC~80ºC
Storage Temperature-40ºC~100ºC
Vibration10g,55Hz ~ 2kHz
Housing Material304,316L
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingIntrinsically safe and explosion-proof
Protection RatingIP65
Weight~0.45kg
Output Signal Specifications
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0.5~4.5V		5VDC
HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor HT Sensor Differential Pressure Transmitter  for Petroleum Chemical Industry Pressure Sensor
Ordering Information
Ordering Tips
  • Ensure measured medium compatibility with product contacting parts during selection
  • Install a three-valve manifold between measurement point and transmitter for reliable operation and uniform pressure application
  • Position pressure interfaces horizontally during installation to minimize location impact
  • Specify special requirements for vibration, impact force, electromagnetic interference, or radio frequency interference in your order
Order Guide
BP93420XXPressure Transmitter
CodeOutline Construction
DIIDifferential Pressure Transmitter
Measurement Range0-10KPa...~2MPa
CodePower Supply
D124VDC
D25VDC
D3Other
CodeOutput Signal
S14~20mADC
S21~5VDC
S30~5VDC
S40~10mADC
S50~20mADC
S60~10VDC
S70.5~4.5VDC
CodePressure Connection
J1M20×1.5 Male
J2G1/2 Male
J3G1/4 Male
J41/2 NPT Male
J5Other
CodeElectrical Connection
B1Hirschmann
B2PG7 Plug
B3Sealed Cable Output
B4Other
CodePressure Type
DDifferential Pressure
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
Q: What's the typical delivery period?
A: 5~8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24hrs. Remote instruction by PC network is always available.
