Specifications
Certification :
ISO9001
MOQ :
1
Price :
51
Brand Name :
HT SENSOR
Model Number :
BP93420D-IX
Place of Origin :
Baoji, China
Model NO. :
BP93420D-II
Measuring Medium :
Liquid, and air
Accuracy Grade :
0.25%, 0.5%
Pressure Range :
0-10kpa...~2MPa
IP Rating :
IP65
Housing Material :
304 SS
Weight :
~0.45kg
Compensation Temp. :
-10~70
Diaphragm Material :
316L
Insulation Resistance :
100MΩ 100VDC
Explosion-proof Rating :
Intrinsically safe and explosion-proof
Operating Temperature :
-30ºC~80ºC
Storage Temperature :
-40ºC~100ºC
Output Signal :
4~20mA, 0~10/20mA, 0/1~5V, 0.5~4.5V
Description
BP93420D-II Differential Pressure Transmitter
Product Overview
The BP93420D-II differential pressure transmitter utilizes advanced piezoresistive diffused silicon sensor technology for precise measurement of gas and liquid differential pressures in industrial applications including petroleum, chemical, power, and hydrology industries.
Key Features
  • Stainless steel construction for compact design and easy installation
  • Rigorous temperature compensation and aging screening for stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring
Industrial Applications
  • Differential pressure measurement for gases and liquids in pipeline systems
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
  • Pressure measurement for pipelines and furnace chambers
Technical Specifications
Measurement Range 0-10KPa...~2MPa
Pressure Type Differential Pressure
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Operating Temperature -30ºC~80ºC
Housing Material 304, 316L Stainless Steel
Protection Rating IP65
Explosion-proof Rating Intrinsically safe and explosion-proof
Electrical Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V, 0.5~4.5V 5VDC

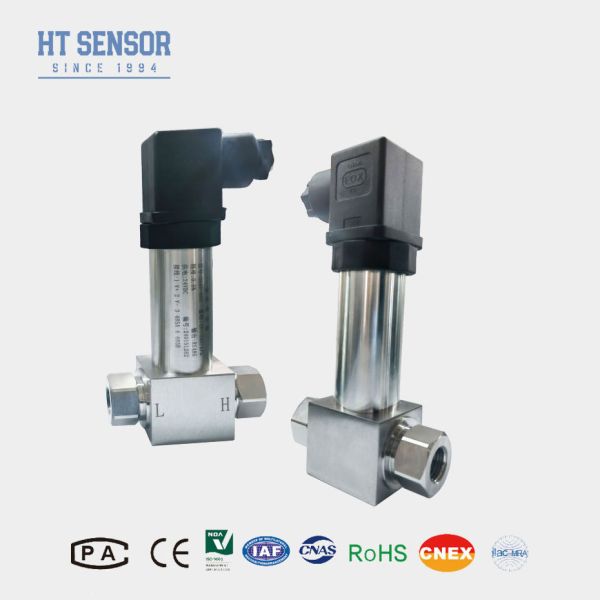

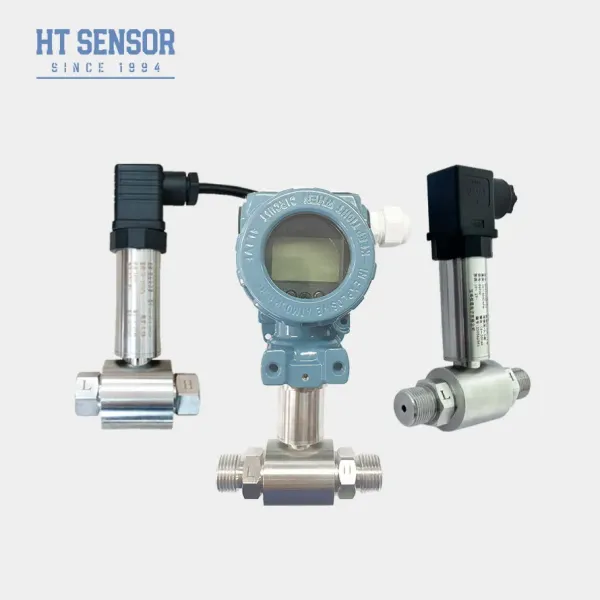

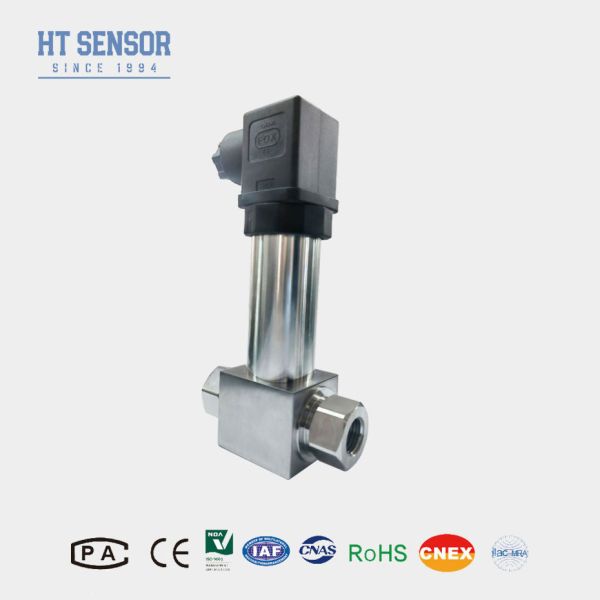

Product Images
Baoji Hengtong BP93420D-II Differential pressure transducer level transmitter manufacturers Baoji Hengtong BP93420D-II Differential pressure transducer level transmitter manufacturers Baoji Hengtong BP93420D-II Differential pressure transducer level transmitter manufacturers Baoji Hengtong BP93420D-II Differential pressure transducer level transmitter manufacturers Baoji Hengtong BP93420D-II Differential pressure transducer level transmitter manufacturers Baoji Hengtong BP93420D-II Differential pressure transducer level transmitter manufacturers
Ordering Information
Selection Guidelines
  • Verify measured medium compatibility with product contacting parts
  • Install three-valve manifold for reliable operation and uniform pressure application
  • Position pressure interfaces horizontally to minimize installation impact
  • Specify special requirements for vibration, impact, or electromagnetic interference
Ordering Guide
Component Code Description
Outline Construction DII Differential Pressure Transmitter
Power Supply D1 24VDC
Output Signal S1 4~20mADC
Pressure Connection J1 M20×1.5 Male
Electrical Connection B1 Hirschmann

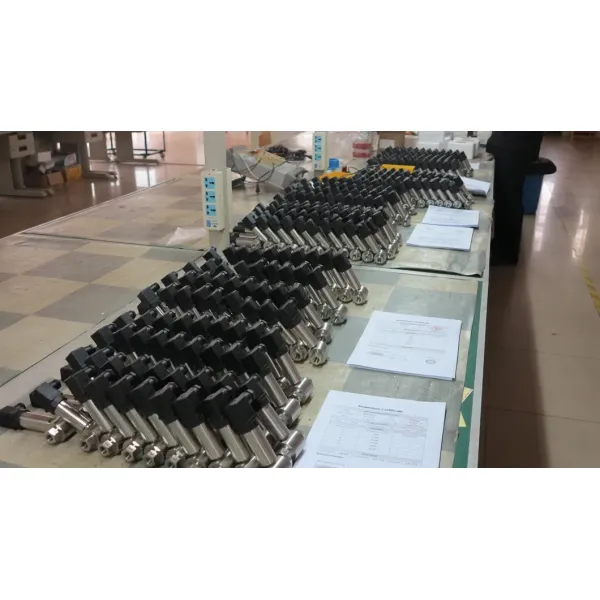

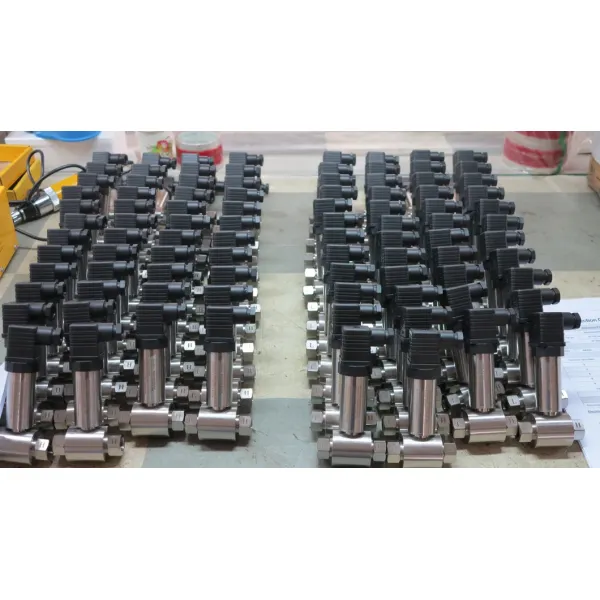

Additional Product Views
Baoji Hengtong BP93420D-II Differential pressure transducer level transmitter manufacturers Baoji Hengtong BP93420D-II Differential pressure transducer level transmitter manufacturers
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team for production and delivery scheduling.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty and after-sales service?
24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction available.
