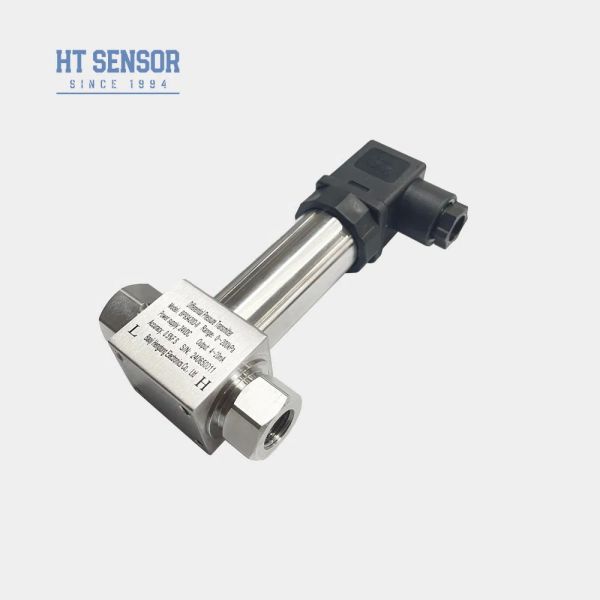

China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer

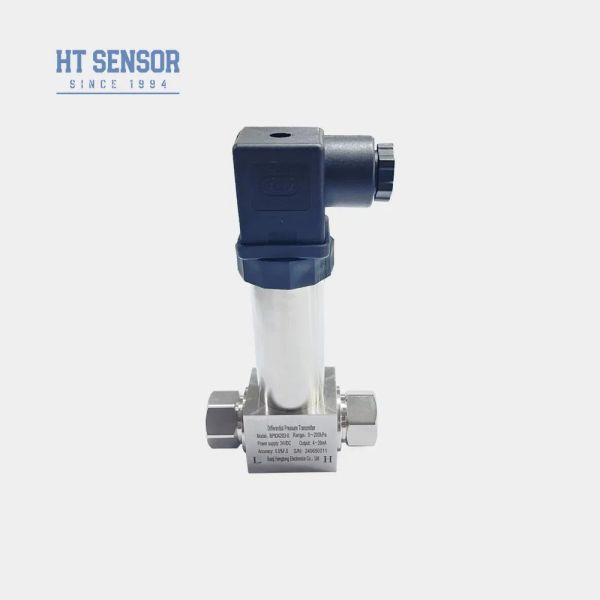

China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer

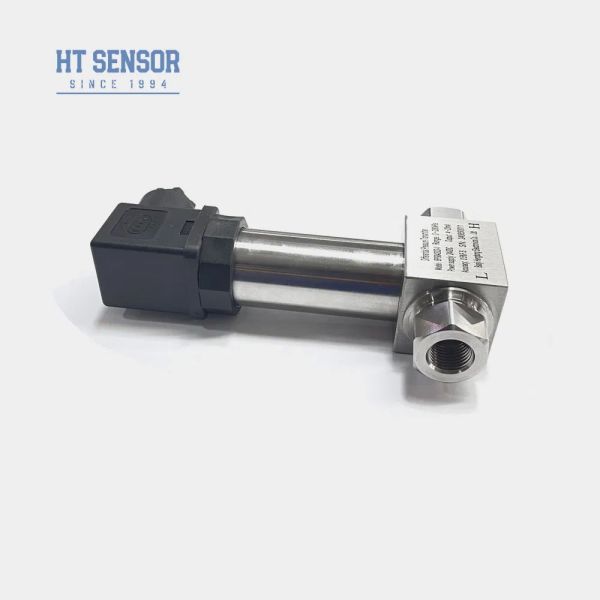

China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
Specifications
Certification :
ISO
MOQ :
1
Price :
50
Model NO. :
BP93420D-II
Measuring Medium :
Liquid
Accuracy Grade :
0.25%, 0.5%
Pressure Range :
0-10kpa...~2MPa
IP Rating :
IP65
Housing Material :
304 S.S.
Weight :
~0.45kg
Sensor Type :
Silicon pressure sensor
Single-side Overload :
≤3 times of the rated range
Static Pressure :
The minimum value between 5 times the rated range or 7 MPa
Repeatability :
±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability :
±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Operating Temperature :
-30ºC~80ºC
Output Signal :
4~20mA, 0~10/20mA, 0/1~5V, 0.5~4.5V
Diaphragm Material :
316L
Description
BP93420DII Differential Pressure Transmitter
China Popular Differential Air Liquid Pressure Transmitter Level Pressure Sensor Transducer
Product Introduction
The BP93420DII differential pressure transmitter utilizes a piezoresistive diffused silicon sensor. When the measured medium's differential pressure acts on the corrugated diaphragms at both ends of the sensor, the output signal from the Wheatstone bridge exhibits a precise linear relationship with the differential pressure, enabling accurate measurement. This transmitter is ideal for various gas and liquid differential pressure measurements in petroleum, chemical, power, and hydrology industries for pipeline applications.
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
Key Features
  • Stainless steel structural design for compact size and easy installation
  • Rigorous temperature compensation and aging screening for stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring
Applications
  • Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology pipelines
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
  • Pressure measurement for pipelines and furnace chambers
Performance Parameters
Measurement Range 0-10KPa...~2MPa
Pressure Type Differential Pressure
Single-side Overload ≤3 times of the rated range
Static Pressure The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC
Operating Temperature -30ºC~80ºC
Storage Temperature -40ºC~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Intrinsically safe and explosion-proof
Protection Rating IP65
Weight ~0.45kg
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0.5~4.5V		 5VDC
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
Ordering Information
Ordering Tips
  • Ensure the measured medium is compatible with the product's contacting parts
  • Install a three-valve manifold between the measurement point and transmitter for reliable operation
  • Position pressure interfaces horizontally to minimize installation location impact
  • Specify special requirements for vibration, impact, or electromagnetic interference in your order
Order Guide
Component Code Description
Product Series BP93420XX Pressure Transmitter
Outline Construction DII Differential Pressure Transmitter
Measurement Range 0-10KPa...~2MPa
Power Supply D1 24VDC
Power Supply D2 5VDC
Power Supply D3 Other
Output Signal S1 4~20mADC
Output Signal S2 1~5VDC
Output Signal S3 0~5VDC
Output Signal S4 0~10mADC
Output Signal S5 0~20mADC
Output Signal S6 0~10VDC
Output Signal S7 0.5~4.5VDC
Pressure Connection J1 M20×1.5 Male
Pressure Connection J2 G1/2 Male
Pressure Connection J3 G1/4 Male
Pressure Connection J4 1/2 NPT Male
Pressure Connection J5 Other
Electrical Connection B1 Hirschmann
Electrical Connection B2 PG7 Plug
Electrical Connection B3 Sealed Cable Output
Electrical Connection B4 Other
Pressure Type D Differential Pressure
China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer China Popular Differential Air Liquid Pressure Transmitter level Pressure Sensor Transducer
