Specifications
Certification :
CE, RoHS
MOQ :
1
Price :
45
Model NO. :
BP93420-IQT
Measuring Medium :
Liquid
Accuracy Grade :
0.5%
Pressure range :
-100kpa...0kpa ~35kpa...3.5MPa
IP Rating :
IP65
Pressure Type :
Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material :
SS304 or 316L
Frequency Response :
2.4kHz
Weight :
~0.3kg
Diaphragm Material :
316L
Operating Temperature :
-20ºC~80ºC
Storage Temperature :
-40ºC~120ºC
Insulation Resistance :
100MΩ 100VDC
Explosion-proof Rating :
Ex db IIC T6 Gb
O-Ring Seal :
Fluoro rubber
Description

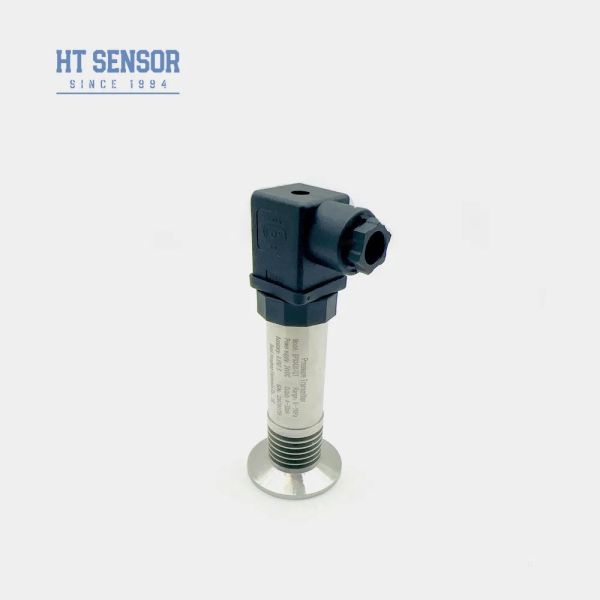

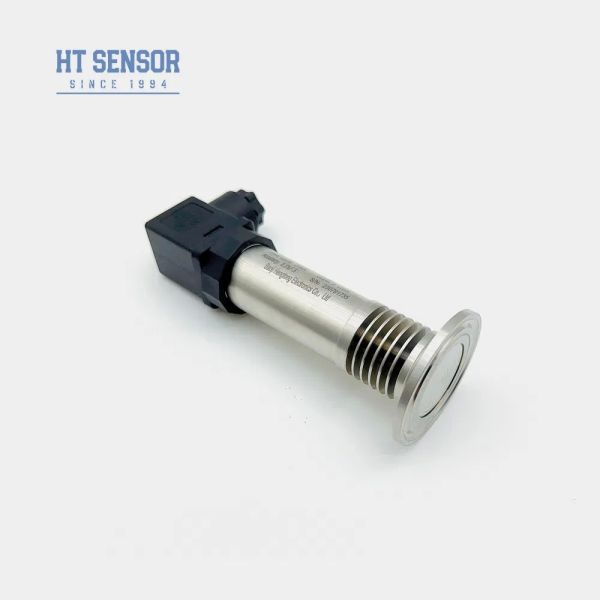

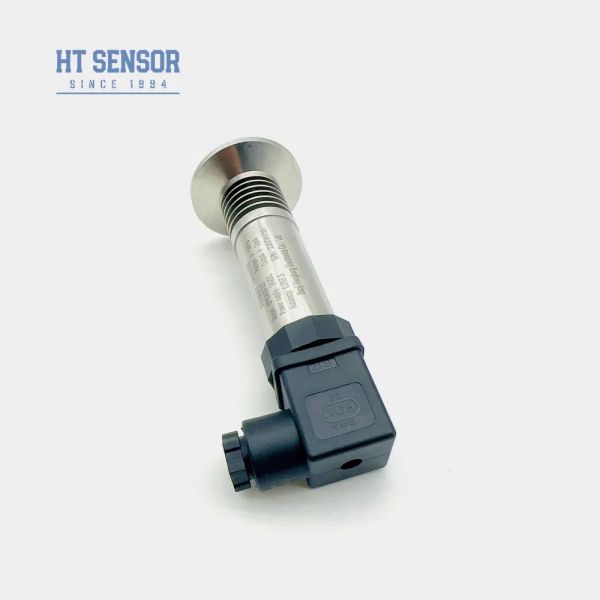

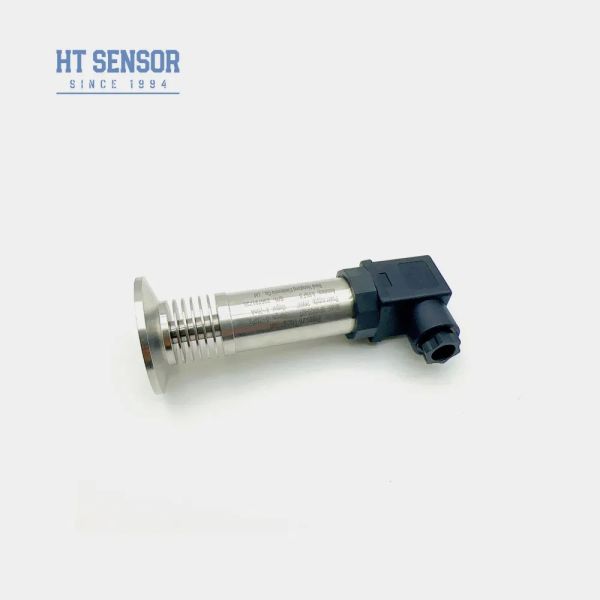

Hengtong Sanitary Clamp Type Pressure Transmitter

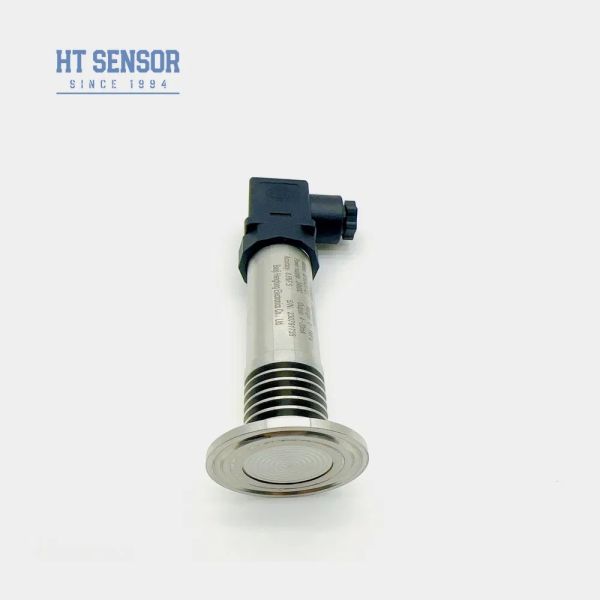

BP93420-IQT pressure transmitter utilizes the HT series silicon pressure-resistance isolation oil-filled core as the signal measuring element. It features a full metal flush diaphragm and direct welding with the process connection, ensuring precise connections between the process connection and the measuring diaphragm. The entire product has undergone rigorous testing ensuring stable and reliable performance and effectively preventing the problem of pressure hole blockage caused by crystallizing media.
Hengtong Sanitary Clamp Type Pressure Transmitter with High Temp-Resistance, 0.5% Accuracy, and IP65 Protection Hengtong Sanitary Clamp Type Pressure Transmitter with High Temp-Resistance, 0.5% Accuracy, and IP65 Protection Hengtong Sanitary Clamp Type Pressure Transmitter with High Temp-Resistance, 0.5% Accuracy, and IP65 Protection
Product Features
  • Wide measurement range with various pressure interface options
  • Diverse output signal options
  • Adjustable zero and full-scale calibration
  • High accuracy with multiple sterile process connections
Applications
  • Suitable for measuring non-corrosive gases and liquids with 316L compatibility
  • Medical, biopharmaceutical, and food hygiene industries for sterile processing
  • Paper and chemical industries, as well as for sewage level and beverage can pressure measurements
  • Suitable for hydraulic and pneumatic control systems
Performance Parameters
Measurement Range -100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ≤0.1%FS
Hysteresis ≤0.1%FS
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex db IIC T6 Gb
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.3kg
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0/1~10V
0.5~4.5V		 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire
Hengtong Sanitary Clamp Type Pressure Transmitter with High Temp-Resistance, 0.5% Accuracy, and IP65 Protection Hengtong Sanitary Clamp Type Pressure Transmitter with High Temp-Resistance, 0.5% Accuracy, and IP65 Protection Hengtong Sanitary Clamp Type Pressure Transmitter with High Temp-Resistance, 0.5% Accuracy, and IP65 Protection Hengtong Sanitary Clamp Type Pressure Transmitter with High Temp-Resistance, 0.5% Accuracy, and IP65 Protection
Ordering Information
Important Ordering Tips
  • Ensure the measured medium is compatible with the product's contact parts
  • Explosion-proof type products do not include digital display heads
  • Transmitters with LCD or LED display require power supply ≥20VDC
  • Install lightning protection devices and ensure proper grounding for reliable operation
  • Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
  • Default cable length is 1.5m (polyethylene); specify alternative materials if required
  • Notify us of special requirements like vibration, impact force, or electromagnetic interference
Order Guide
BP93420XX | Pressure Transmitter
Outline Construction
IB General Pressure Transmitter IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter IIC/III Industrial General/ Display Pressure Transmitter
IF Moisture-proof Pressure Transmitter IIE/IIIE General/Display Pressure Transmitter
IN Air Conditioning Dedicated Pressure Transmitter
IC High-temperature Pressure Transmitter
IQ1/IQ2 Large Diaphragm /High-temperature Pressure Transmitter
Additional Specifications
Code Power Supply Code Output Signal
D1 24VDC S1 4~20mADC
D2 5VDC S2 1~5VDC
D3 Other S3 0~5VDC
S4 0~10mADC
S5 0~20mADC
S6 0~10VDC
S7 0.5~4.5VDC
Code Pressure Connection Code Electrical Connection
J1 M20×1.5 B1 Hirschmann
J2 G1/2 B2 PG7 Plug
J3 G1/4 B3 Sealed Cable Output
J4 7/16-20UNF B4 2088 Industrial Casing
J5 Other B5 2088 Industrial Casing with Display
B6 Other
Pressure Type Codes
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure
Hengtong Sanitary Clamp Type Pressure Transmitter with High Temp-Resistance, 0.5% Accuracy, and IP65 Protection
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?

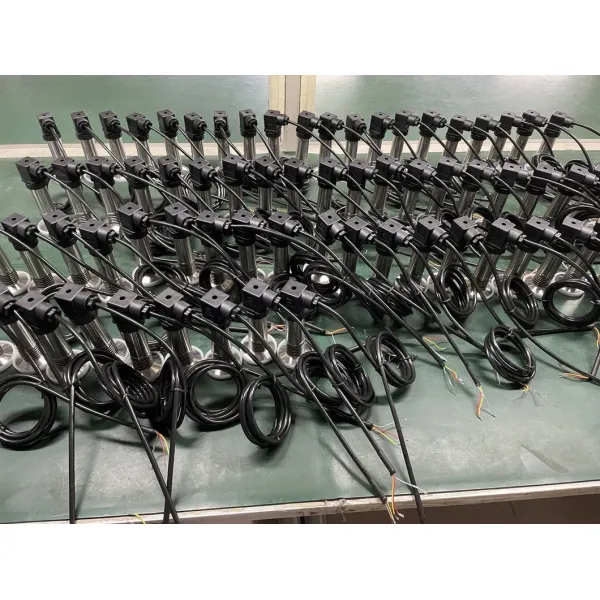

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
