Specifications
Certification :
CE, RoHS
MOQ :
1
Price :
48
Model NO. :
BP93420-IQT
Measuring Medium :
Gas
Accuracy Grade :
0.5%F.S
Pressure range :
-100kPa...0kPa ~35kPa...3.5MPa
IP Rating :
IP65
Pressure Type :
Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material :
304s.S
Weight :
~0.3kg
Diaphragm Material :
316L
Operating Temperature :
-20ºC~80ºC
Storage Temperature :
-40ºC~120ºC
Output Signal :
4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485
Supply Voltage :
12~30VDC, 5VDC, 3.6~30V / Battery
Insulation Resistance :
100MΩ 100VDC
Explosion-proof Rating :
Ex db IIC T6 Gb
Description
BP93420-IQ Pressure Transmitter
High temperature flush diaphragm pressure sensor transducer designed for sanitary applications with 4-20mA output signal.
Product Overview

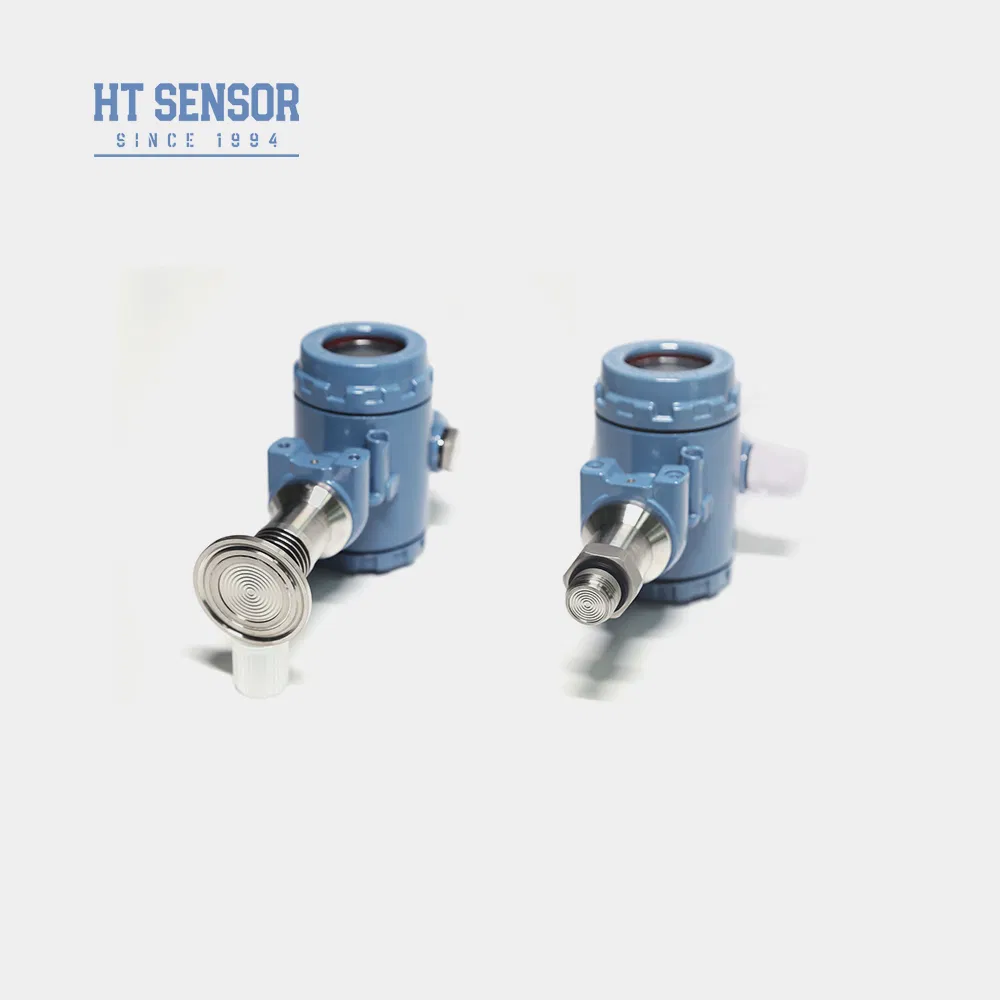

BP93420-IQT features a 1.5mm clamp installation with large diaphragm high temperature transmitter. The signal processing circuit is housed in stainless steel, converting sensor signals into standard output signals. This pressure transmitter is specifically designed for applications requiring high sanitary conditions, ensuring reliable and accurate pressure measurements in hygienic environments.
Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications
Key Features

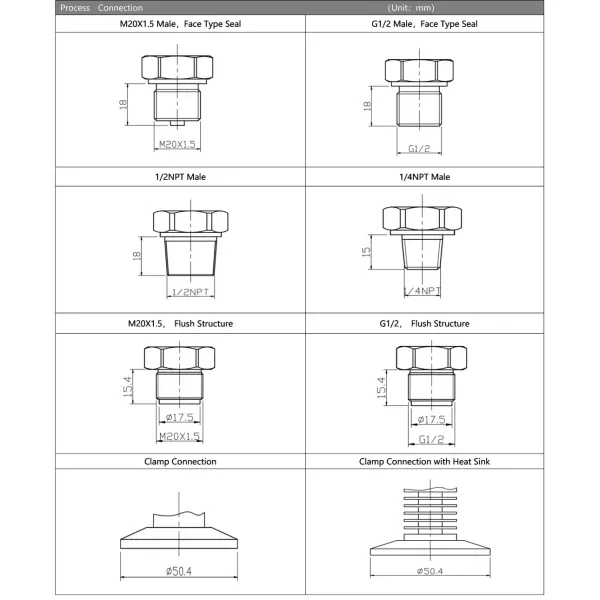

  • Multiple pressure interface options available
  • Specifically designed for hygienic applications to prevent medium scaling
  • High accuracy performance with fully stainless steel construction
  • Easy to clean and maintain
Applications
  • Measurement of non-corrosive gases and liquids using 316L materials
  • Environmental protection and chemical industry applications
  • Marine and aviation industry applications
  • Medical, biopharmaceutical, and food hygiene industries
Performance Parameters
Measurement Range -100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability & Hysteresis 0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material SS304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex db IIC T6 Gb
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.5kg
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0/1~10V
0.5~4.5V		 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire
Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications
Ordering Guide
BP93420XX | Pressure Transmitter
Outline Construction
IB General Pressure Transmitter
IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter
IIC/III Industrial General/ Display Pressure Transmitter
IF Moisture-proof Pressure Transmitter
IIE/IIIE General/Display Pressure Transmitter
IN Air Conditioning Dedicated Pressure Transmitter
IC High-temperature Pressure Transmitter
IQ/IQT Large Diaphragm /High-temperature Pressure Transmitter
Measurement Range
-100kPa…0kPa ~ 35kPa…3.5MPa
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range
Power Supply Options
D1 24VDC
D2 5VDC
D3 Other
Output Signal Options
S1 4~20mADC
S2 1~5VDC
S3 0~5VDC
S4 0~10mADC
S5 0~20mADC
S6 0~10VDC
S7 0.5~4.5VDC
Electrical Connection Options
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 2088 Industrial Casing
B5 2088 Industrial Casing with Display
B6 Other
Pressure Type Options
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure
Ordering Tips
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications Hengtong OEM BP93420-IQT High Temperature Resistance 4-20mA Output Sanitary Pressure Transmitter Sensor for Hygienic Applications
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working day for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
