BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter
BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter
BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter
BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter
Specifications
Certification :
ISO9001
Brand Name :
HT SENSOR
Model Number :
BH93420-WS1
Place of Origin :
Baoji，China
MOQ :
1
Packaging Details :
Standard Export Package
Price :
Negotiable
Delivery Time :
5-8 work days
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000PCS/Month
Model NO. :
BH93420-WS1
power :
12-36VDC
ouput :
4-20mA
Stability :
±0.1%F.S/Year(Typ.)
Net Weignt :
2.1kg (without cable)
Material :
316L Stainess Steel
HS Code :
90261000
Type :
Silicon Piezoresistive Type
Structure Design :
Flange Type
Pressure Range :
Gauge Pressure, Absolute Pressure
Accuracy Grade :
0.5%
IP Rating :
IP68
Customization :
Available | Customized Request
medium :
sewage
Description

BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter

BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter
BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter
BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter

BH93420-WS1 sewage level sensor flange Fuel level sensor

Introduction of sewage level sensor:

BH93420-WS sewage level sensor transmitter uses a high-precision piezoresistive silicon pressure sensor as a sensitive measuring element. The sewage level sensor transmitter features a rugged design with flanged counterweight, all-316L stainless steel construction, and pressure measurement for 316L non-corrosive liquids. The transmitter is suitable for measuring levels in contaminated liquid environments such as sludge tanks, clarification tanks, digesters, alum tanks, chemical storage tanks, oil tanks, lime slurry, sump pits and reservoirs
Performance Parameters of swage level sensor
Measurement Range 0~10m…400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Zero Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-70ºC
Operating Temperature -20~80ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 316L Stainless Steel
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
O-Ring Seal Fluoro rubber
Weight ~2.1Kg (without cable)
Cable Material Polyethylene, Polyurethane,PTFE

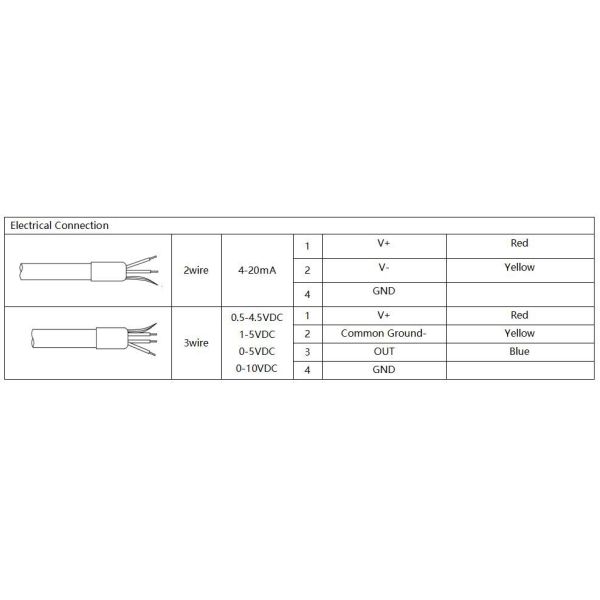

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC

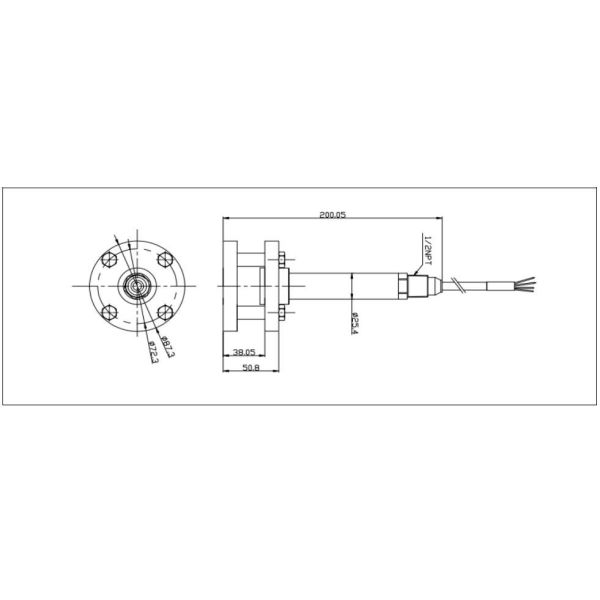

Outline Construction of sewage level sensor

BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter
BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter
BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter

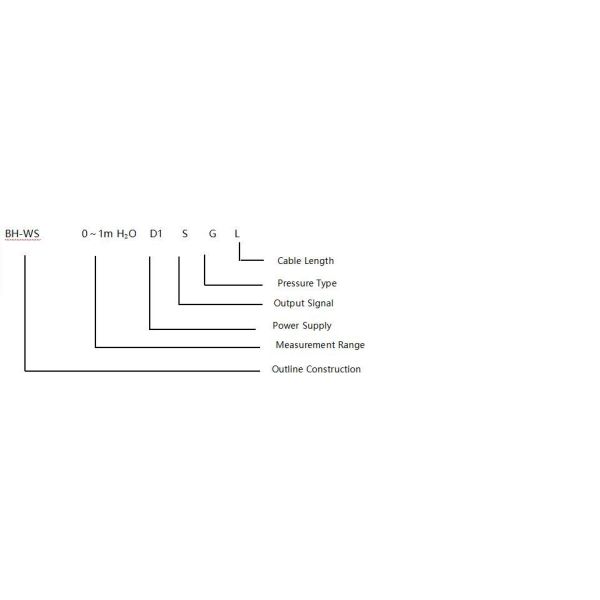

Selection Examples
BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter
Ordering tips of sewage level sensor

1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
Order Guide of sewage level sensor
BH Code Outline Construction
WS Pressure Transmitter
Measurement Range 0~10m…400m
Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure
Code Cable Material
C1 PE
C2 PU
C3 PTFE



BH93420-WS1 Sewage Level Sensor Flange Fuel Level Sensor Liquid Level Transmitter


FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.


2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.


3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.


4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.


5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.


6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
