Specifications
Output Signal :
Analog Type
Repeatability :
0.2%F.S
Impedance :
11KΩ±30%
Output :
mv
Hysteresis :
0.3%F.S
Material :
Ceramics
Output Sensitivity :
≥2mV/V
Certification :
ISO
MOQ :
5
Power :
5-10VDC
Specification :
19mm
Range :
0-200kpa~5Mpa
NonLinearity :
±0.3%F.S
Wiring Type :
Four-Wire
Price :
3.5
Operating Temperature :
-40 ~ + 135°C
IP Rating :
IP65
Measuring Medium :
Gas and Liquid
Description

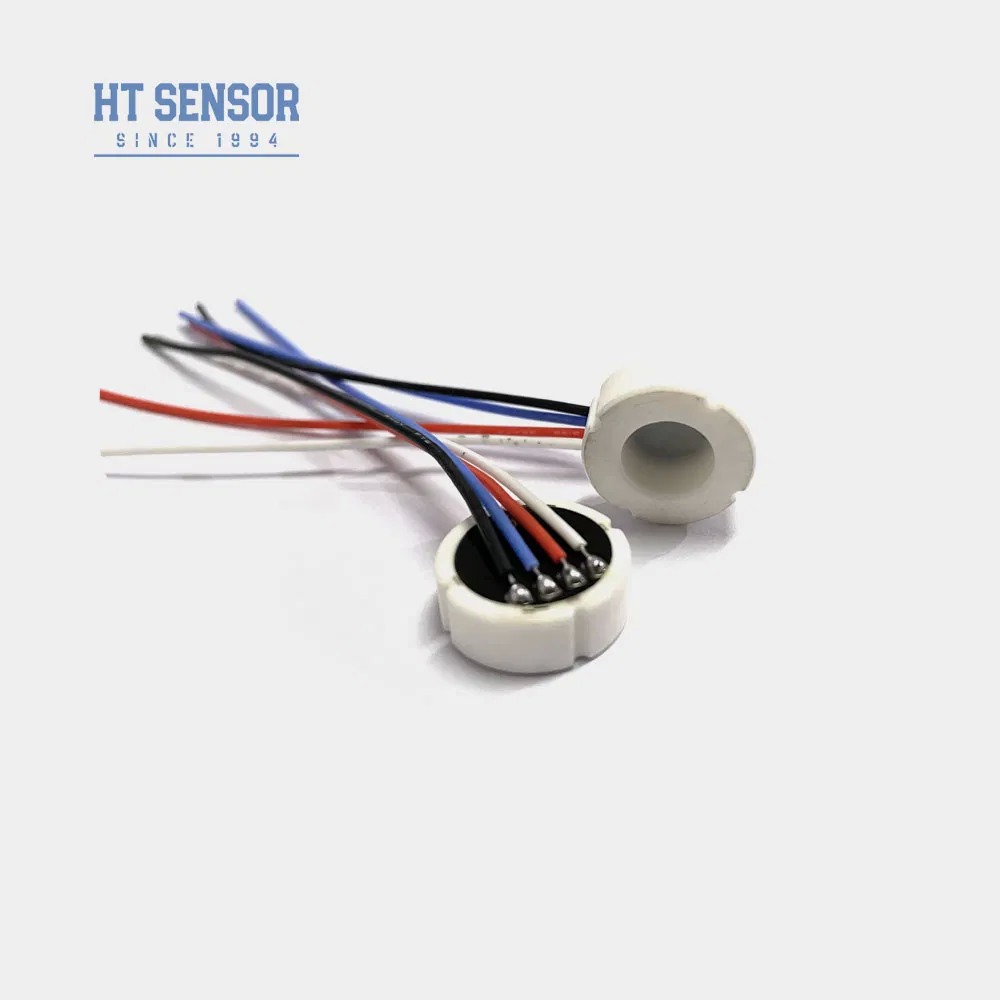

HT-TC Ceramic Pressure Sensor
5Vdc power supply pressure measuring sensor core liquid sensor with ceramic material. The HT-TC ceramic piezoresistive pressure sensor is an ideal pressure sensing element that can be packaged or directly integrated with equipment control circuits.
Product Features
  • Excellent long-term stability
  • Effective temperature compensation
  • Operating temperature range: -40°C to +135°C
  • Can directly contact the measured medium
  • Competitive pricing
Applications
Automotive, industrial automation, water pumps, petroleum, chemical industry, pneumatic equipment, hydraulic equipment, air conditioning, air compressors, and more.
Electrical Performance
  • Power Supply: ≤26VDC (Typical: 5VDC)
  • Impedance: 11KΩ ±30%
  • Electrical Connection: 100mm high-temperature wire
Performance Parameters
Parameter Value Unit
Measurement Range 2bar, 5bar, 10bar, 20bar, 30bar, 50bar, 100bar -
NonLinearity ±0.3 %F.S
Repeatability 0.2 %F.S
Hysteresis 0.3 %F.S
Output ≥2mV/V mV/V
Zero Offset Temp. Drift ≤±0.03 %FS/ºC
Full Scale Temp. Drift ≤±0.03 %FS/ºC
Operating Temperature -30~120 ºC
Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor
Outline Construction
Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor
Ordering & Assembly Guidelines
  • Ensure proper fit between core size and transmitter housing for required airtightness
  • Align housing vertically and apply even pressure during assembly to avoid damage
  • Provide special instructions if measured medium is incompatible with 316L materials
  • Avoid pressing sensor diaphragm with hands or sharp objects
  • Keep pressure port open to atmosphere and prevent entry of contaminants
  • Refer to actual core label for pin lead configurations
Company Information
Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large-scale orders.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: 24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network instruction available.
