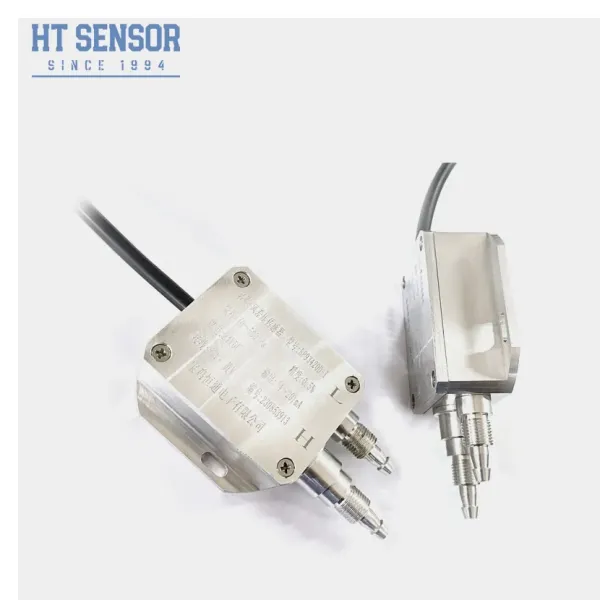

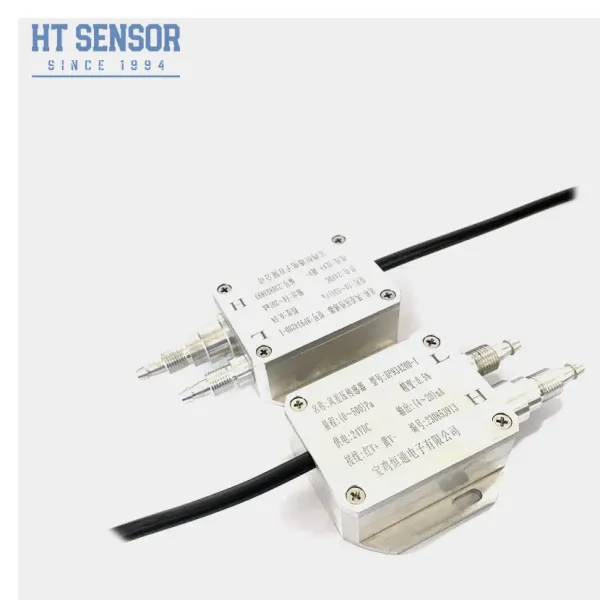

Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Specifications
Model NO. :
BP93420D-I
POWER :
24vdc
Materials :
Aluminium alloy
Transport Package :
Carton
Connection :
φ6 air nozzle
Trademark :
HengTong
HS Code :
9026201090
Production Capacity :
20000PCS/Year
Accuracy Grade :
1.0G
IP Rating :
IP65
Measuring Medium :
Gas
Origin :
China
Pressure range :
500PA~200kpa
Customized :
Customized
Price :
US $25-30 / Piece
Output :
4-20mA /0-10VDC
Specification :
Aluminum shell. Plastic shell
Certification :
ISO
MOQ :
5 Pieces
Description
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Introduction:
BP93420DI is a differential pressure transmitter that utilizes the piezoresistiveeffect of semiconductor silicon material to convert differential pressure into an electrical signal. It is mainly used for measuring small differential pressures of non-corrosive dry gases, suitable for applications in industries such as boiler air supply, underground ventilation in the power and mining industries, and pressure automatic detection in ultra-clean workshops for process control.
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter

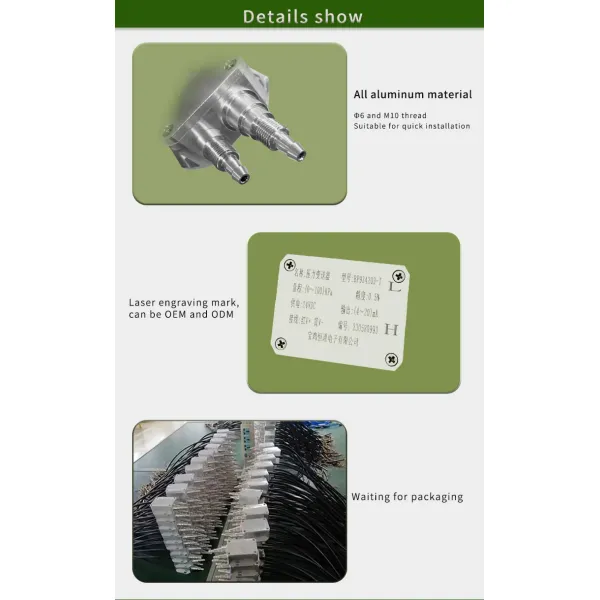

Product  Features:
  1. Choice of aluminum or plastic casing design
  2. Lightweight and easy to install
  3. Undergone rigorous high and low-temperature testing to ensure wide temperature range usability
  4. High accuracy
Applications:
  1. Suitable for applications in boiler and mining industries
  2. Brewing and power industries
  3. Designed for detecting small differential pressures of non-corrosive gases

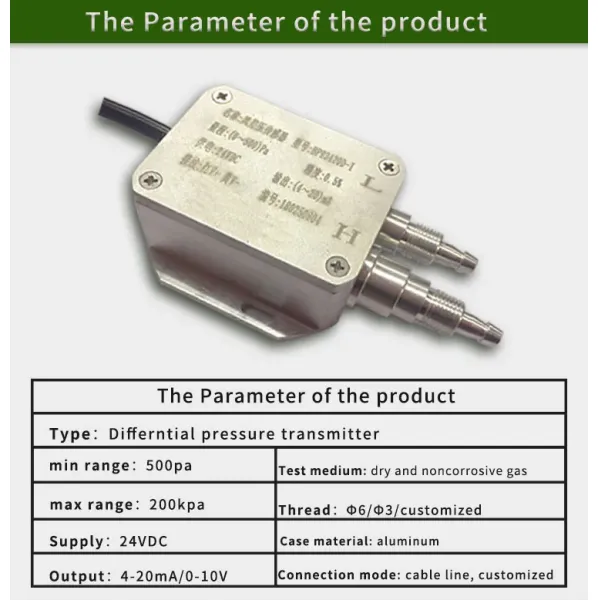

Performance Parameters
Measurement Range 0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa
Pressure Type Differential Pressure
Static pressure 2 times of the rated range
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.5% (Typical)             ±1% (Maximum)
Zero Point Temperature Drift ±2.5%F.S/ºC(Typical)    ±3%F.S/ºC(Maximum)
Full Scale Temperature Drift ±2.5%F.S/ºC(Typical)    ±3%F.S/ºC(Maximum)
Compensation Temperature 0-50ºC
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~100ºC
Housing Material Aluminum alloy,Plastic
Relative humidity 0-80%
Pressure connection φ6 air nozzle or customizable
Protection Rating IP65
Cable material Polyethylene
Weight about 0.15kg
Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure TransmitterHengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure TransmitterHengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure TransmitterHengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
