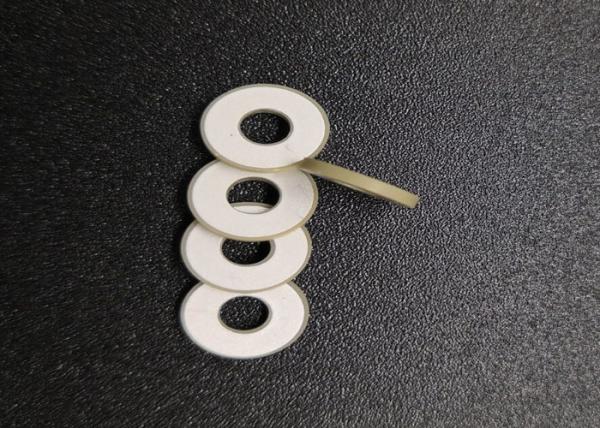

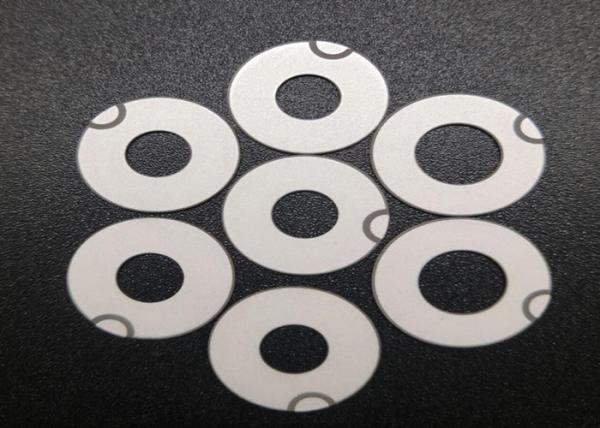

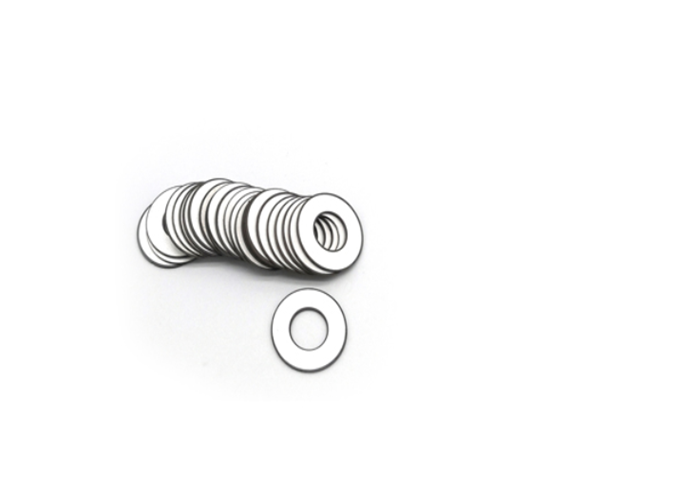

PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
Specifications
MOQ :
1000
Brand Name :
HL
Model Number :
P4-16mm*7.8mm-90KHZ
Certification :
ISO9001
Place of Origin :
Chengdu
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5000000per Month
Delivery Time :
4work days
Model Number: :
P4-16mm*7.8mm-90KHZ
Material: :
Zircon, P4
Application: :
Ultrasonic Medical Treatment, Micropore Atomization
Frequency: :
90KHZ
Type: :
Piezoelectric Ceramics
Dimension: :
Customized
Description

High Quality PZT Piezoelectric Ceramic Ring 16mm*7.8mm 90KHZ For Ultrasonic Humidifier

Model Number:P4-16mm*7.8mm-90KHZ Application:Ultrasonic Medical Treatment, Micropore Atomization
Material:Zircon, P4 Frequency:90KHZ
Type:Piezoelectric Ceramics Dimension:Customized

Specifications

Item Unit Standard Test Condition T=25℃
Resonant Frequency KHz 90±3% Impedance Analyzer
Relative Dielectric Constant __ 1500±15% Impedance Analyzer

Electrical-Mechanical

Coupling Coefficient

 __ ≥0.6 Impedance Analyzer
Charge Constant 10-12m/v or c/n 300±10% Static d33 Analyzer
Mechanical Quality Factor _ 600±15% Impedance Analyzer

PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring

PZT 16mm*7.8mm 90KHZ Piezoelectric Ceramic Ring
